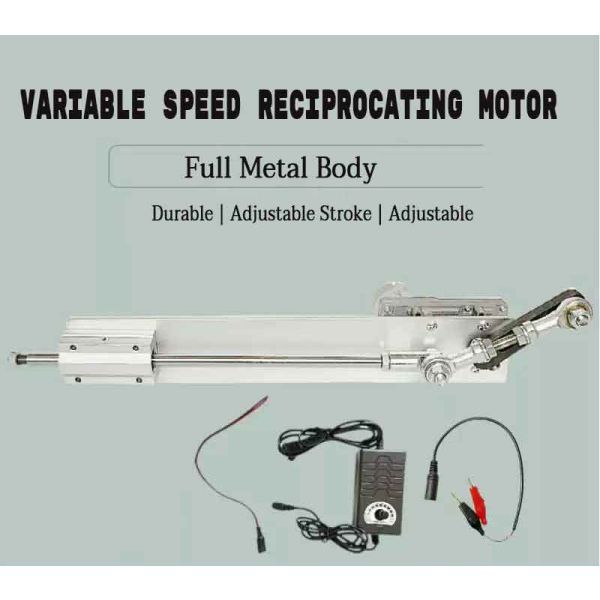

Monday Kids Adjustable Reciprocating Linear Actuator, 12V/24V, Speed & Stroke Controlled, Metal Body, High Thrust
$40.00
Availability:
In stock
SKU
BK-DG-250314-01
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
Product Details:
The Heavy-Duty Speed-Controlled Reciprocating Motor is a high-performance motor designed for durability and versatility. With its all-metal construction, adjustable stroke, and variable speed control, this motor is suitable for a wide range of applications, from industrial use to DIY projects.
Key Features:
- All-Metal Construction: Built with a robust metal body to ensure durability and stability.
- Adjustable Stroke: Available in two stroke ranges—2-8 cm and 3-15 cm—with infinite adjustment within these ranges.
- Variable Speed Control: The reciprocating speed can be adjusted up to 45 cycles per minute, depending on the model.
- High Thrust Capability: Provides varying thrust levels based on voltage and stroke length, ranging from 1.5 kg to 25 kg.
- Heavy-Duty Components: Equipped with high-wear-resistant bearings, chrome-plated reciprocating rods, and high-strength swing arms.
- Powerful Motor: Features a strong and reliable permanent magnet synchronous motor.
Technical Specifications:
- Model: 20-80/30-150
- Function Type: Drive Motor
- Insulation Class: Other
- Protection Type: Open Type
- Operation Mode: Benchtop
- Motor Type: Permanent Magnet Synchronous Motor
- Power Supply: DC
- Voltage: 12V/24V
- Speed Control: Variable speed up to 45 cycles per minute
- Color Options: Based on voltage and stroke specifications (e.g., 12V, 2-8 cm stroke, 20 cycles/min)
Thrust and Voltage:
| Voltage | Stroke | Thrust |
|---|---|---|
| 12V | 2 cm Stroke | 15 kg Thrust |
| 4 cm Stroke | 7.5 kg Thrust | |
| 6 cm Stroke | 5 kg Thrust | |
| 8 cm Stroke | 4 kg Thrust | |
| 10 cm Stroke | 3 kg Thrust | |
| 12 cm Stroke | 2.5 kg Thrust | |
| 15 cm Stroke | 1.5 kg Thrust | |
| 24V | 2 cm Stroke | 25 kg Thrust |
| 4 cm Stroke | 10 kg Thrust | |
| 6 cm Stroke | 7 kg Thrust | |
| 8 cm Stroke | 5 kg Thrust | |
| 10 cm Stroke | 4 kg Thrust | |
| 12 cm Stroke | 3 kg Thrust | |
| 15 cm Stroke | 2 kg Thrust |
Product Dimensions:
- 2-8 cm Stroke Dimensions:
- Total Length: 250 mm
- Stroke Length: 200 mm
- Mounting Hole Distance: 100 mm
- 3-15 cm Stroke Dimensions:
- Total Length: 350 mm
- Stroke Length: 300 mm
- Mounting Hole Distance: 100 mm
Product Details:
- High-Wear-Resistant Bearings: Ensure long-lasting durability.
- Chrome-Plated Reciprocating Rod: Provides high hardness, anti-bending strength, and corrosion resistance.
- High-Strength Swing Arms: Capable of withstanding high torque and tension, with a wide range of stroke adjustment.
- Powerful Motor: Delivers strong and reliable performance.
Usage Instructions:
The package includes the motor, mechanism, power supply, and connecting cables. Simply plug it into a household electrical outlet for immediate use. This motor is designed for easy installation and operation.
Product Advantages:
- Durability: All-metal body, high-wear-resistant bearings, and chrome-plated rods ensure long service life.
- Versatility: Adjustable stroke and speed allow for customization to meet various application needs.
- High Thrust: Capable of providing significant thrust based on voltage and stroke length.
- Ease of Use: Plug-and-play design makes it easy to set up and operate.
Applications:
This speed-controlled reciprocating motor is suitable for a wide range of applications, including:
- Industrial automation
- Laboratory equipment
- DIY projects
- Home appliances requiring reciprocating motion
- Small-scale mechanical devices
