Monday Kids CMOS Camera Module OV7670 Supports VGA CIF Auto Exposure Control Display Active
$7.41
Availability:
In stock
SKU
RY-ES-152
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Supply Voltage: 3.3V
- Type: Voltage Regulator
- is_customized: Yes
- Model Number: CMOS Camera Module

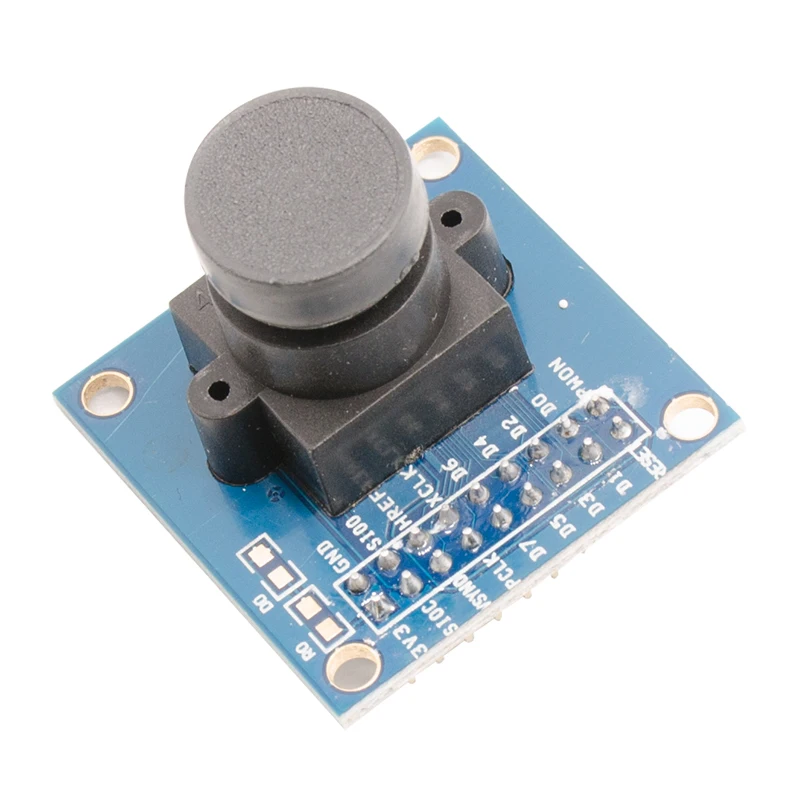

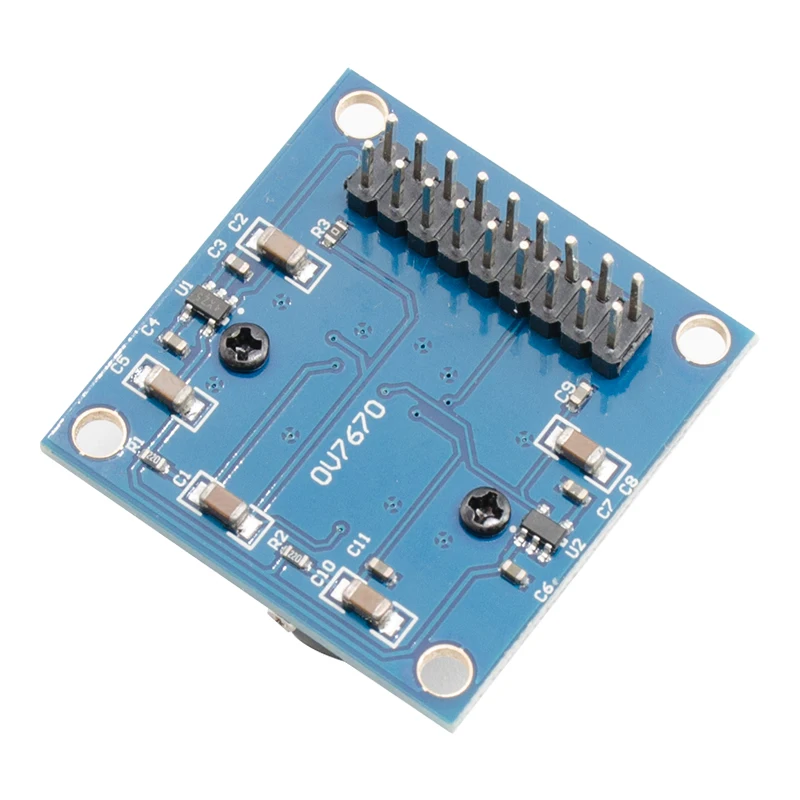

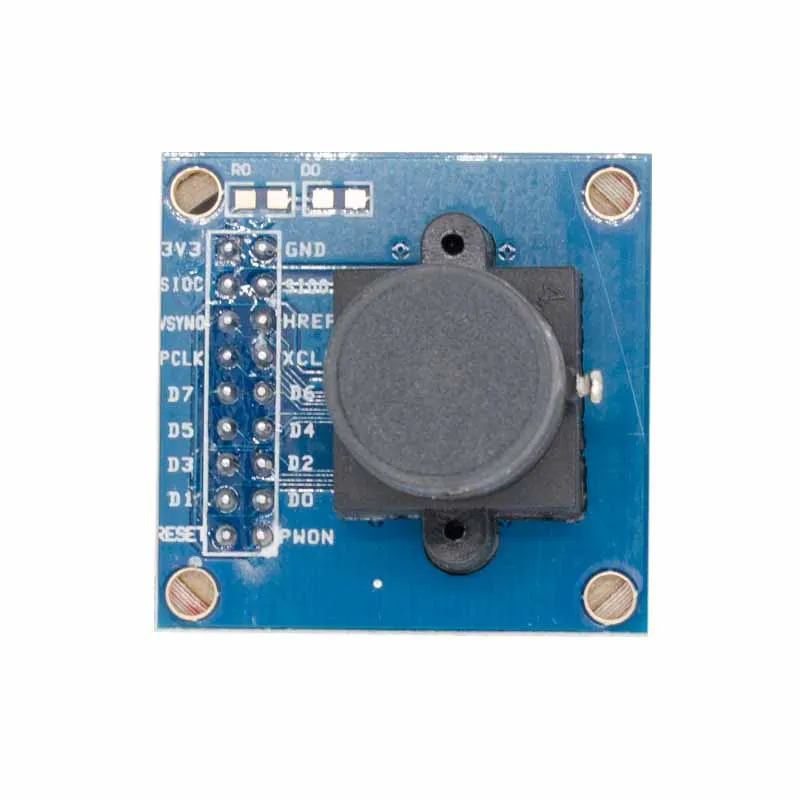

CMOS Camera Module ov7670 Supports VGA CIF Auto Exposure Control Display Active
Description:
OV7670 image sensor, small size, low operating voltage, and provides all the features of the single-chip VGA camera and image processor. Through theSCCB bus control, you can output the entire frame, sub-sampled, take the window way affect the data resolution of 8 bits. VGA image of the product is up to 30 frames / sec. Users can fully control the image quality, data format and transmission mode. The process of image processing functions including gamma curves, white balance, saturation, chroma, and so can beprogrammed through the SCCB interface. OmmiVision image sensor applications unique sensor technology to improve image quality by reducing or eliminating the optical or electronic defect, such as fixed pattern noise, tail-blooming, clear and stable color image.
High sensitivity for low-light applications
Low voltage suitable for embedded applications
Standard SCCB interface compatible with I2C interface
RawRGB to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)output format
support VGA, CIF, and from CIF to 40x30 the size
VarioPixel subsampling way
eliminate light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has eliminate noise and dead pixel compensation function
support image scaling
The lens is the loss of light compensation
50/60Hz detection
the saturation automatically adjust ( UV adjustment)
edge enhancement automatically adjust
Noise Reduction automatically adjust
key parameters
photosensitive array 640X480
IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the
power operation 60mW/15fpsVGAYUV
Sleep < 20 μ A
temperature operation from -30 ° C to 70 ° C
0 ° C to 50 ° C
( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data
Optical size of 1/6 "
field of view angle of 25 °
maximum Zhen rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
signal to noise ratio of 46 dB
dynamic range of 52 dB
browsing mode progressive
electronic exposure
area of 3.6 μ mx 3.6 μ m
dark current 12 mV / s at 60 ° C
Packaging Included:
1 * CMOS Camera Module ov7670
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 8cm x 10cm x 15cm (3.15in x 3.94in x 5.91in)
