Monday Kids BT05 4.0 Bluetooth Module Serial Port BLE Data Transmission Module Master-slave CC2541

$2.66
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Model Number: Bluetooth 4.0 serial port module
  • Type: Voltage Regulator
  • Dissipation Power: Ultra low standby power consumption 90uA~400uA
  • is_customized: Yes
  • Supply Voltage: 3V
  • Extra long connection distance: 100 feet / 60 meters
  • Ultra-fast response speed: 0.4 seconds
  • Input voltage: 3V

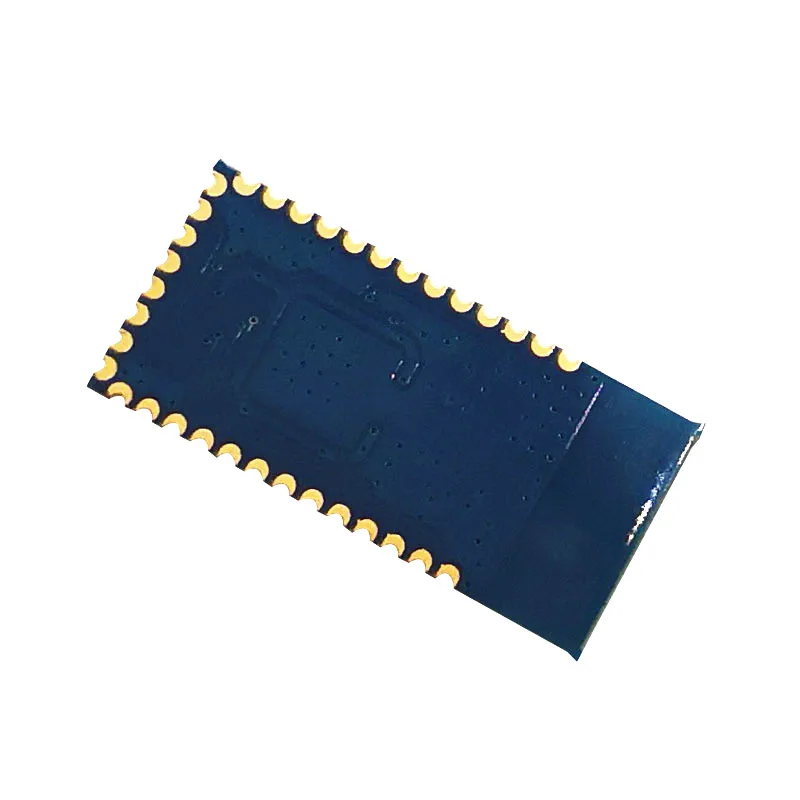

BT05 4.0 Bluetooth Module Serial Port BLE Data Transmission Module Master-slave CC2541

Description:

This module supports UART interface and supports SPP Bluetooth serial port protocol. It has the advantages of low cost, small size, low power consumption, high sensitivity of sending and receiving, etc. It can realize its powerful functions with only a few foreign components.
  • The main chip is CC2541
  • Ultra low standby power consumption 90uA~400uA
  • Extra long connection distance 100 feet / 60 meters
  • Ultra-fast response speed 0.4 seconds
  • Android, Apple, PC, MAC are all universal.
  • Send and receive no byte limit, up to 3K Bytes/sec
  • Support standard BLE protocol;
  • Support UART, I2C interface;
  • Support low power mode;
  • Support Bluetooth Class1 and Class2 modes;
  • Industrial grade design;
  • data encryption;
  • Built-in PCB antenna;
  • Input voltage 3V;
2. Conditions of use
Apple mobile phone limited: 4s and above models, system version iOS6 and above
Android phone limited: system is version 4.3 and above, mobile phone Bluetooth version is 4.0

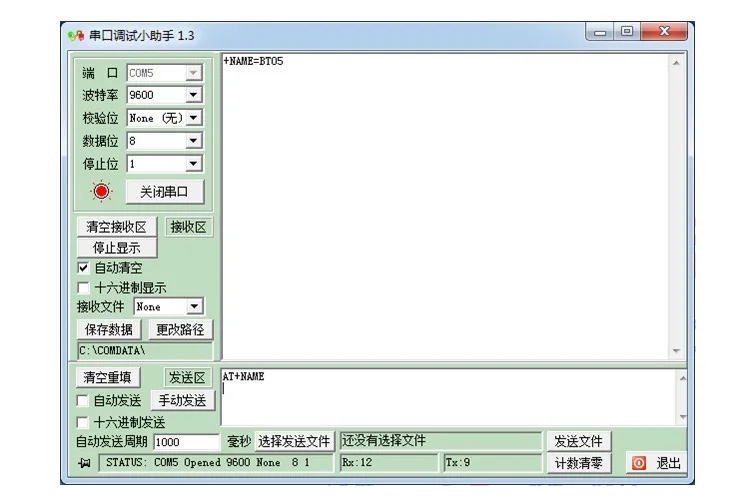

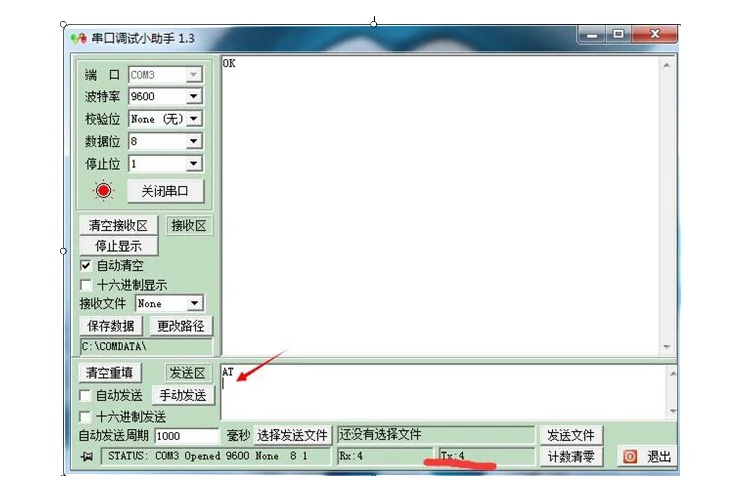

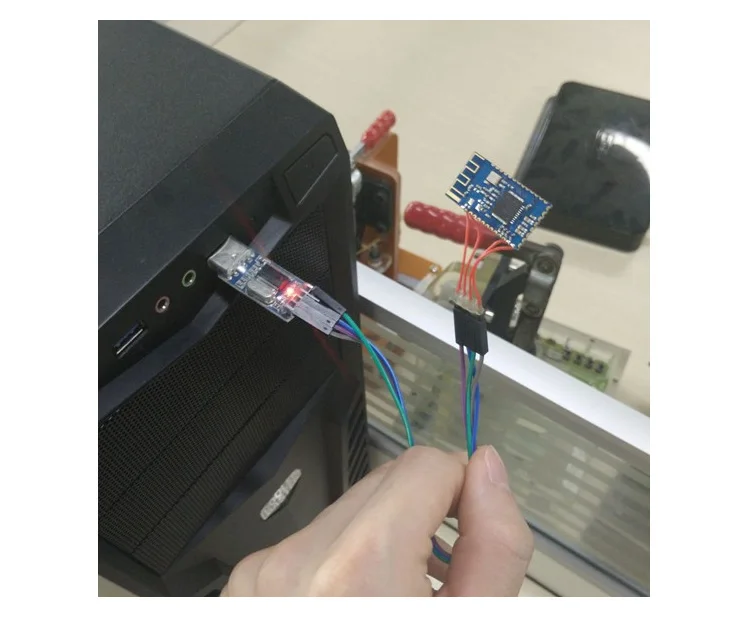

Open the device manager with the words USB-to-Serial Comm Port. Is the port we want to use:

Package Included:

1 * BT05 4.0 Bluetooth Module

  • Unit Type: piece
  • Package Weight: 0.02kg (0.04lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
