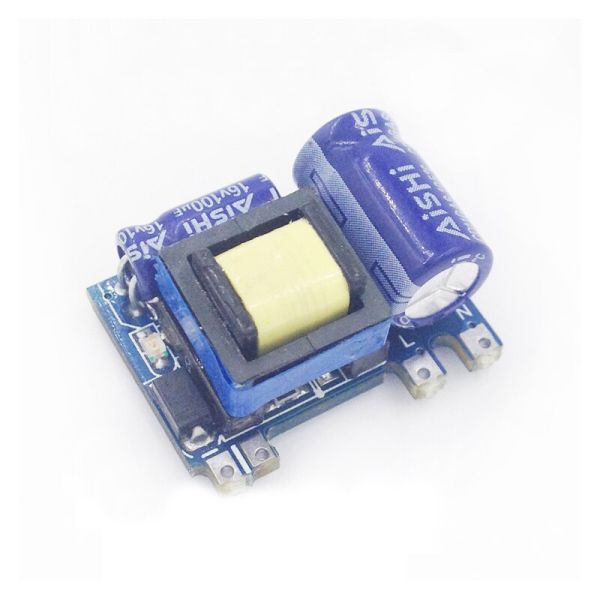

Monday Kids AC-DC 12V 300mA / 5V 600mA Isolated Switching Power Supply Module Buck Regulator Step Down Power Module 220V to 12V Converter

Be the first to review this product

$1.44

Availability: In stock

SKU

RY-ES-34

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer
Supply Voltage: 5V / 12V
Condition: New
Operating Temperature: -20~70degree
is_customized: Yes
Type: Voltage Regulator

Characteristics of 12V 300m A:

Input voltage range: AC50V-277V DC70V-390V
No-load power: <0.05W Full load power: <4W
Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
Output voltage: 12V -0.05+0.3V no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 100mV
Output current: 12V0mA-300mA, enters constant current mode when fully loaded
Test resistance: 40 ohms (12V) for 12V
Output indicator: green light
Output power: 3.5W, efficiency is about 80%
Output protection: overvoltage, overcurrent, overtemperature, overcurrent, short circuit protection, etc.
Overall height: 13.5MM

Characteristics of 5V 600m A:

Input voltage range: AC50V-277V DC70V-390V
No-load power: <0.05W Full load power: <3.5W
Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
Output vol t age: 5V Output voltage maximum range 4.9V-5.3V or 4.8V-5.2V ripple 60mV
Output current: minimum current 0mA, maximum current 600mA, output indicator 1mA red light

Output power: 3W, power is about 80%

Output protection: overvoltage, overcurrent, overtemperature, overcurrent, short circuit protection, etc.
