Monday Kids 4-color Battery Capacity Indicator Module Colorful Battery Level Tester Indicator 10 LED Display Electricity Meter V3.2 Version

Be the first to review this product

$4.39

Availability: In stock

SKU

EK115

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Model Number: Battery Capacity Indicator
Condition: New
Type: Logic ICs
Supply Voltage: 2.5~24V
Dissipation Power: none
is_customized: Yes
Operating Temperature: -30~85 Celsius
Application: Battery Capacity Indicator
Testing Voltage Range: 0~300V
Feature: ic tester,battery level indicator

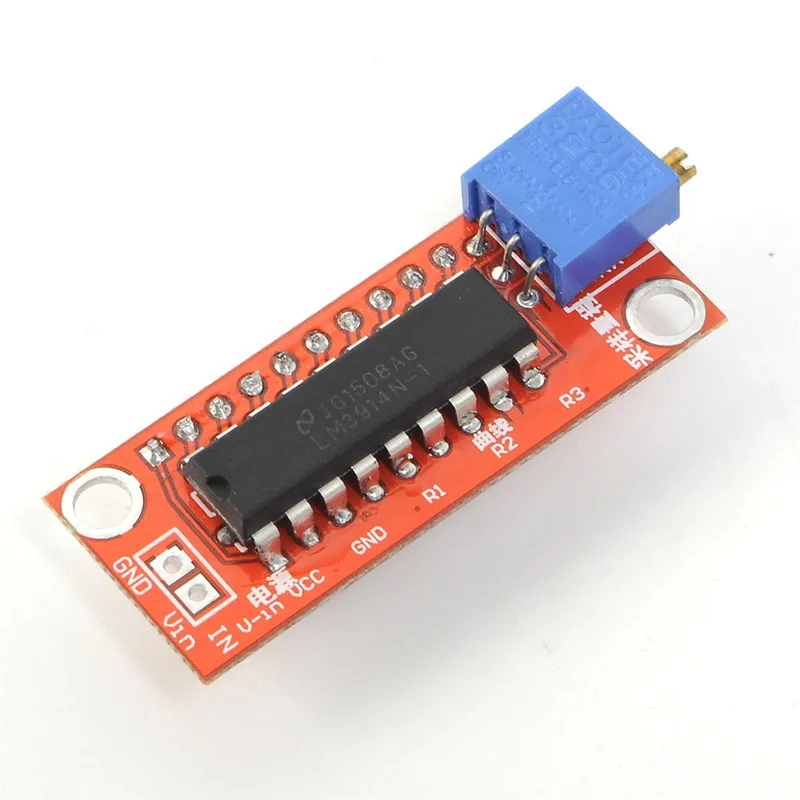

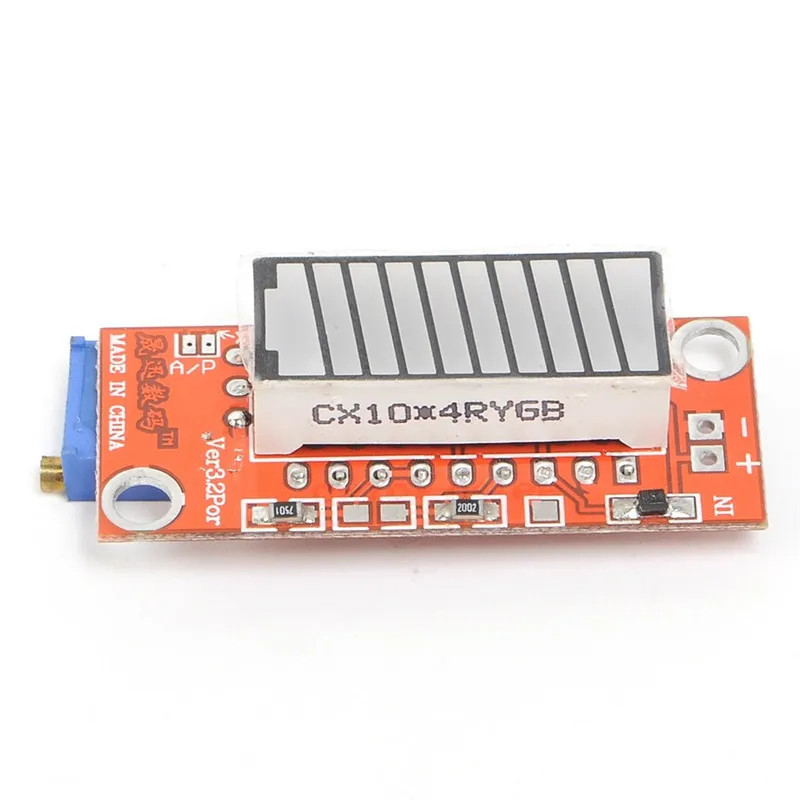

Product Introduction:

1.Operating Voltage:2.5~24V
2.Operating Current:single lamp mode 6mA,all on 24mA
3.Testing Voltage Range:0~300V (if over 24V,needs independent power supply,sampling serial connection resistor)
4.Response Time:<1mS

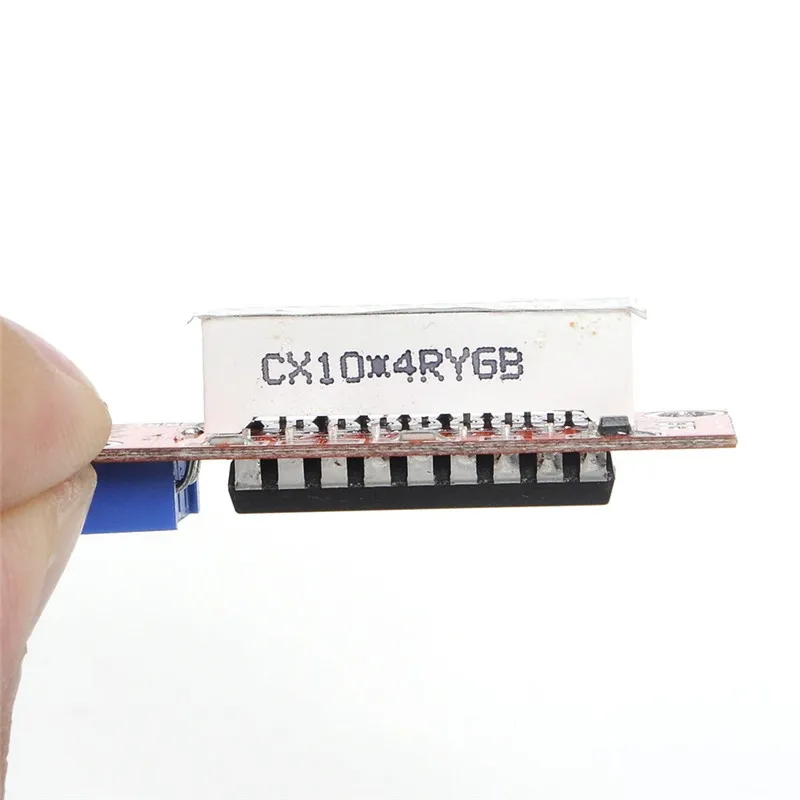

5.Display Lamp Color:2 red;3 orange;4 green;1 blue
6.Display Mode:A(linear)/P(dot matrix)
7.Size:41*17*13.5mm
8.Fixed Screw Hole:M3 standard
9.Power Supply Interface:2-wire

Feature:

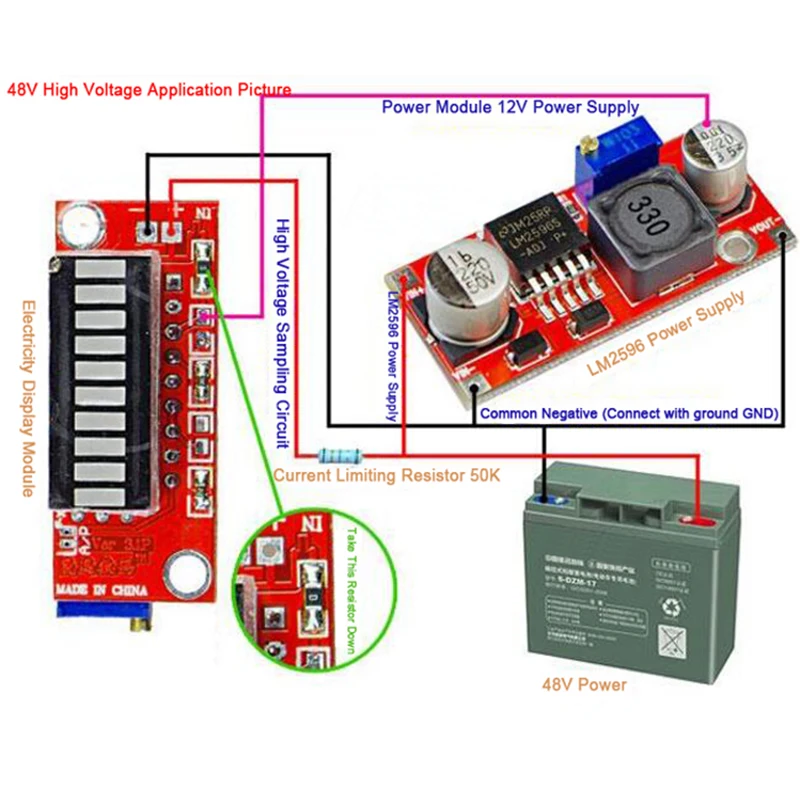

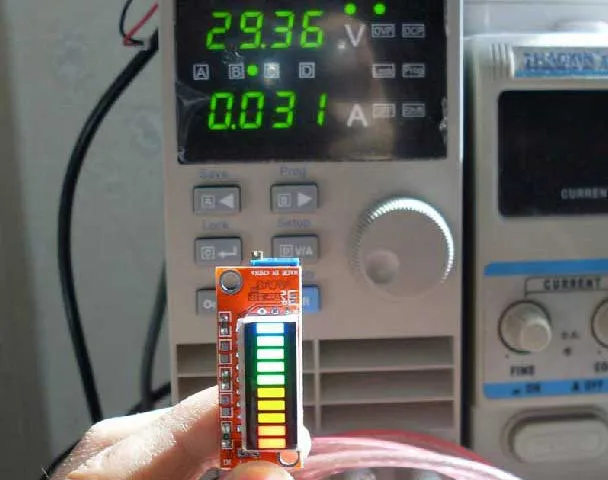

1. The module is easy to use, directly connected in parallel to the target power can be, within 18V power supply can be directly connected, 18V ~ 30V power supply only need to change the current limiting resistor Power to 510 oh can, if it is high pressure measurement (30 ~ 300V) can take an independent (12V) power supply, the measured power range is adjustable, the standard discharge curve for the battery was optimized. Can be directly supported: single lithium 1S (4.2V) ~ 6S (25.2V), lead acid 6V ~ 24V, nickel hydrogen 3.6V ~ 24V, nickel and cadmium batteries 3.6V ~ 24V; independent power supply can support 48V electric car, 120V Online UPS;

2.LED brightness constant, single lithium state 3.7V brightness is also very conspicuous, while the overall working current to reduce the more power, high reliability, can work for a long time, low power consumption, high precision, no heat, Solar power project, you can work 24 hours a day);

3. Double screw fixing hole design, easy to install, while setting the discharge curve custom pad, according to the actual need to define the curve range.
