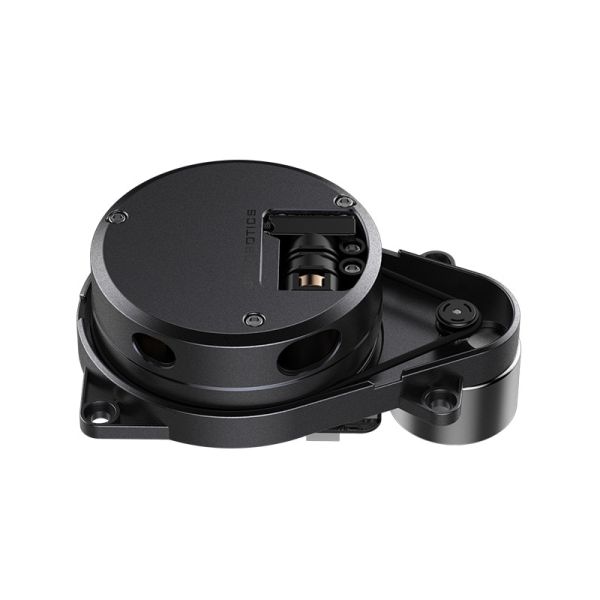

Monday Kids 360 Degree 8m LiDAR Held Sensor for ROS Robot Module LiDAR Scanner Short Measuring Sensor Held The Range of 0.13 to 8m
$77.93
Availability:
In stock
SKU
RY-ES-327
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Supply Voltage: 5V
- Model Number: 360 Degree 8m LiDAR Held Sensor
- is_customized: Yes
360 Degree 8m LiDAR Held Sensor for ROS Robot Module LiDAR Scanner Short Measuring Sensor Held The Range of 0.13 to 8m
Product parameters:
Range: 0.13 m - 8 m (white wall)
Sweep frequency: 6.2 Hz(4-10Hz)
Laser power: 3 mW (max )
Distance coefficient of variance: DCV<0.2%
Voltage: 5V
Baud rate: 230400
Working environment temperature: 0 ° C - 45 ° C
Work environment humidity: <90%
Sampling rate: 5K /s
Laser wavelength: 780 nm
Accuracy:
Communication interface: RS232 (TTL) 3.3V-TTL
Power consumption: 1.5 W
Working current: 500 mA
Size: 107 * 76 * 53 mm
Levelness 0 ° - 1 °
Work environment illumination<1000Lux
Working mode:
8 bit data, 1 bit stop bits, no check.
Baud rate: 230400
Output low level: <0.4
Output high level: 2.9-3.5
Application environment:
1. Robot SLAM positioning and obstacle avoidance
2. fast and accurate surveying and mapping
3. robot ROS development
4. game interaction.
1 * 360 Degree 8m LiDAR held Sensor
Application scenario:
Can be applied to: robot SLAM positioning and obstacle avoidance, industrial fast and accurate mapping, environmental scanning, independent mapping, path planning.
The ideal working environment of the radar is indoor, and indoor illumination (including no light) will not affect radar work. Please avoid using Qiang Guangyuan (such as high-power laser) to directly irradiate radar's optical vision system.
If you need to use it outdoors, avoid the optical vision system of the laser radar directly facing the sun, which may lead to permanent damage to the optical chip of the optical system, so that the distance measurement will be invalidated.
The range of radar will be shortened under the condition of strong sunlight reflection.
- Unit Type: piece
- Package Weight: 0.25kg (0.55lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
