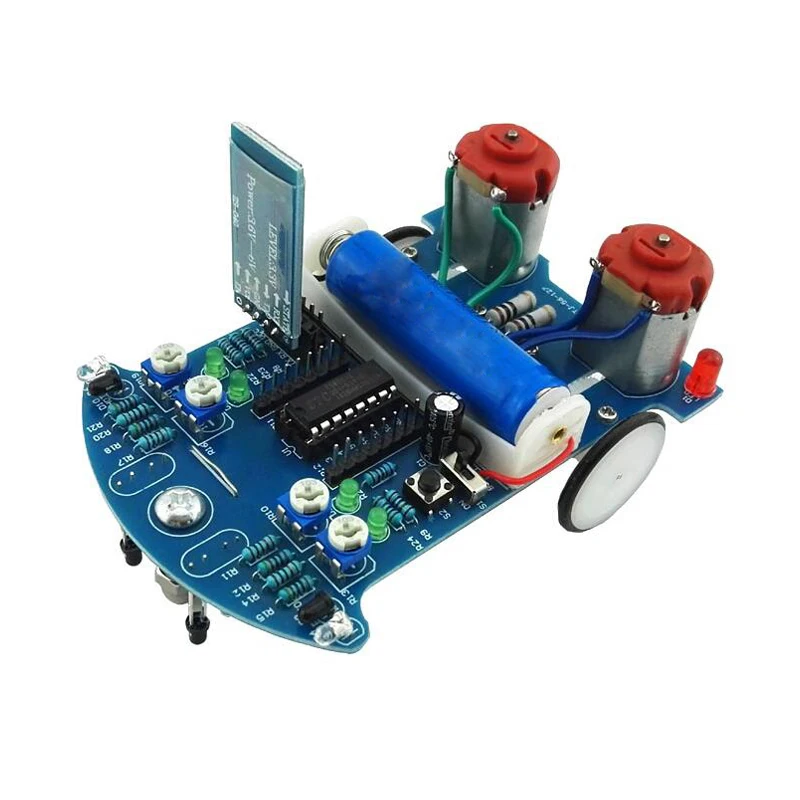

Monday Kids DIY Kits D2-6 Bluetooth Remote Control Intelligent Car Suite Smart Tracking Automobile Gravity Sensor Obstacle Avoidance 51 MCU

$11.33

Product name is DIY Kits D2-6 Bluetooth Remote Control Intelligent Car Suite Smart Tracking Automobile Gravity Sensor Obstacle Avoidance 51 MCU...

Product origin name is Monday Kids DIY Kits D2-6 Bluetooth Remote Control Intelligent Car Suite Smart Tracking Automobile Gravity Sensor Obstacle Avoidance 51 MCU

Availability: In stock
SKU
EK485

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Model Number: Tracking Smart Car
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Application: Electric Toy
  • Supply Voltage: DC 3.7V
  • Model: D2-5
  • Name: D2-5 Intelligent Tracking Car DIY Kit
  • PCB Size: 104*72*1.6mm
  • Installation dimension: 104*72*55mm
  • Work Voltage: 3V

NOTE : we have documents of most of products in our store

If you need it , contact us :)

1. Introduction.

There is a 16 mm wide black runway in the white field.Our tracking car can drive along the black runway automatically.No matter how the runway is bent, the car can be driven automatically.We all know that the reflectivity is different when the light source to the white objects and black objects.Here we use red light source.The light is reflected through the ground to the photoresistor.By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.Drive the car in the opposite direction so that the car is always running along the runway.

2. Overview.

1>. Model: D2-5

2>. Name: D2-5 Intelligent Tracking Car DIY Kit

3>. PCB Size:104*72*1.6mm

4>.Installation dimension:104*72*55mm

5>. Work Voltage:3V

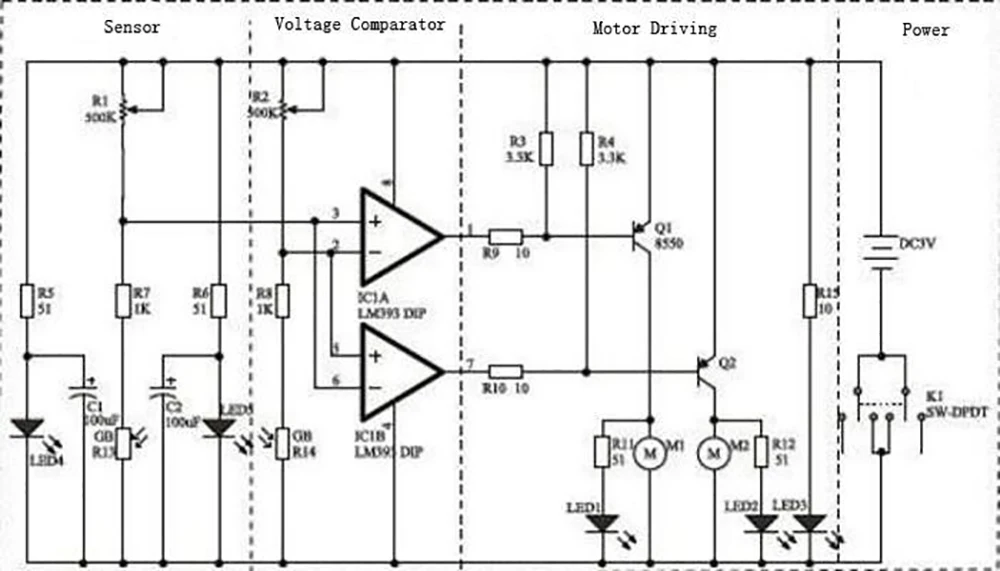

3. Schematic.

4. Component listing.

NO.

Component Name

PCB Marker

Parameter

Quantity

Remarks

Electronic Component

1

LM393

IC1

DIP-8

1

2

IC Socket

IC1

DIP-8

1

3

Electrolytic Capacitor

C1,C2

100uF

2

4

Potentiometer

R1,R2

103 10K

2

5

Metal Film Resistance

R5,R6,R11,R12

51ohm

4

6

Metal Film Resistance

R7,R8

1K

2

7

Metal Film Resistance

R9,R10

10ohm

2

8

Photoresistor

R13,R14

CDS5

2

9

Red LED

D1,D2

5mm

2

Red Shell,Red Light

10

White LED

D4,D5

5mm

2

White Shell,Red Ligth

11

S8550

Q1,Q1

TO-92

2

12

Self-Locking switch

S1

6*6mm

1

Mechanical Part

13

DC Motor

M1,M2

JD3-100

2

14

Wheel

24mm

2

15

Tires

24mm

2

16

Axle

D2*30mm

2

17

Gasket

D2.0mm

6

Non-essential

18

Three-way sleeve

D2.5mm

4

19

Gear

D22mm

2

20

Worm

D5mm

2

21

Screw

D2.2*8mm

4

22

Motor Screw(Black)

D1.7*4mm

4

23

Gaster Screw

M5*20mm

1

24

Gaster Nut

M5

1

25

Gaster Screw Cap

M5

1

Other Component

26

Cable

6mm

4

27

Battery Case

AA*2

1

With adhesive

28

PCB

D2-5

1

104*72*1.6mm

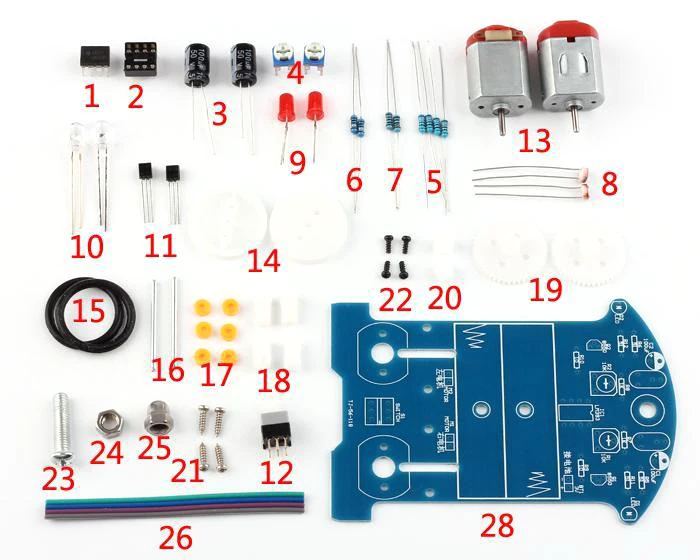

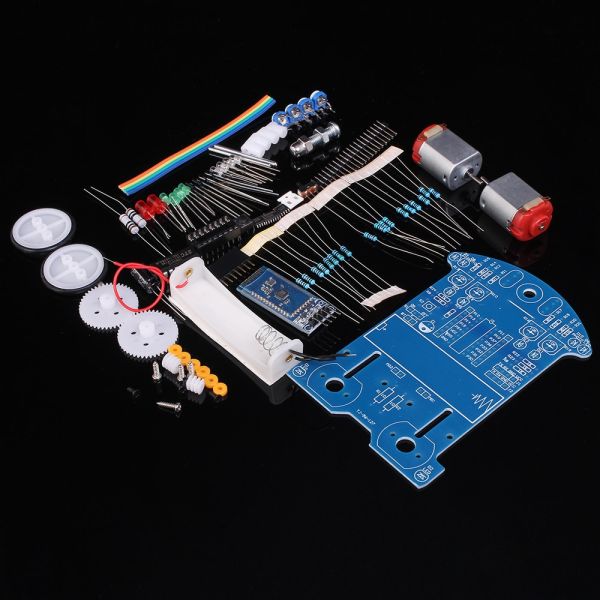

5. Component Description

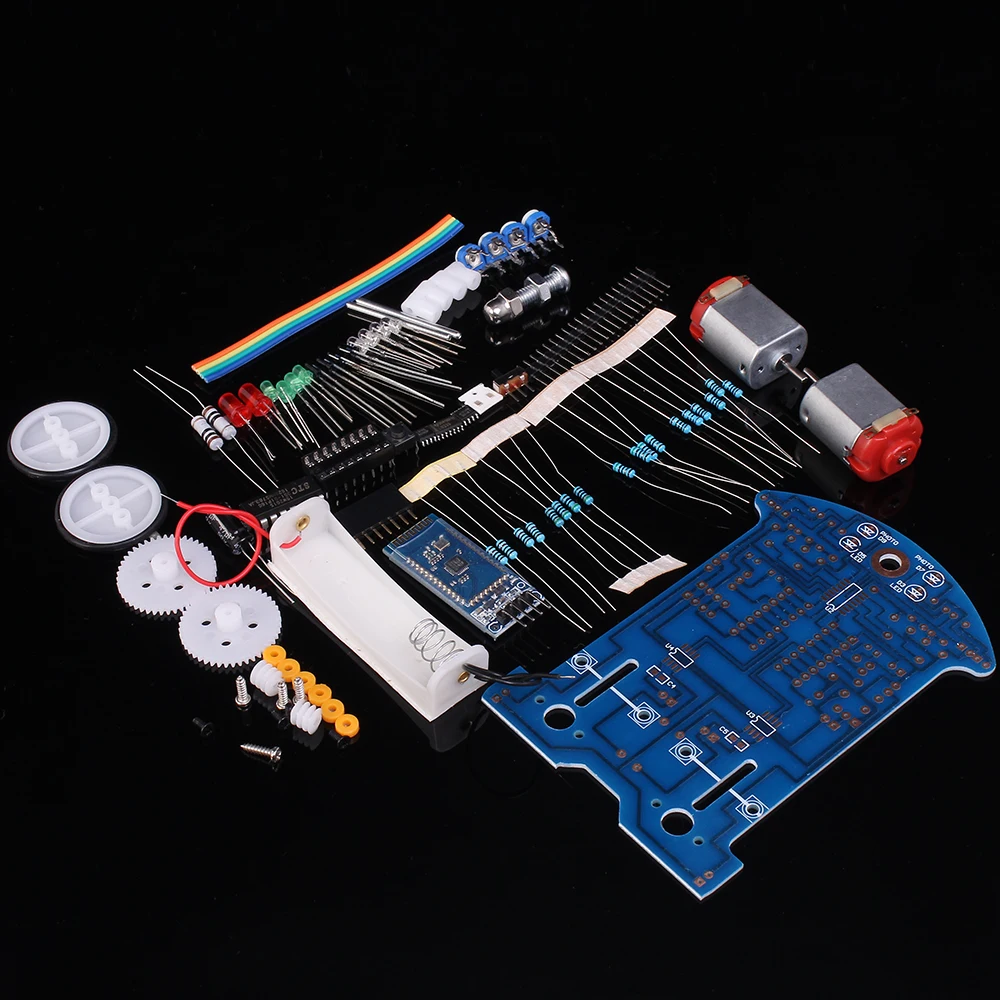

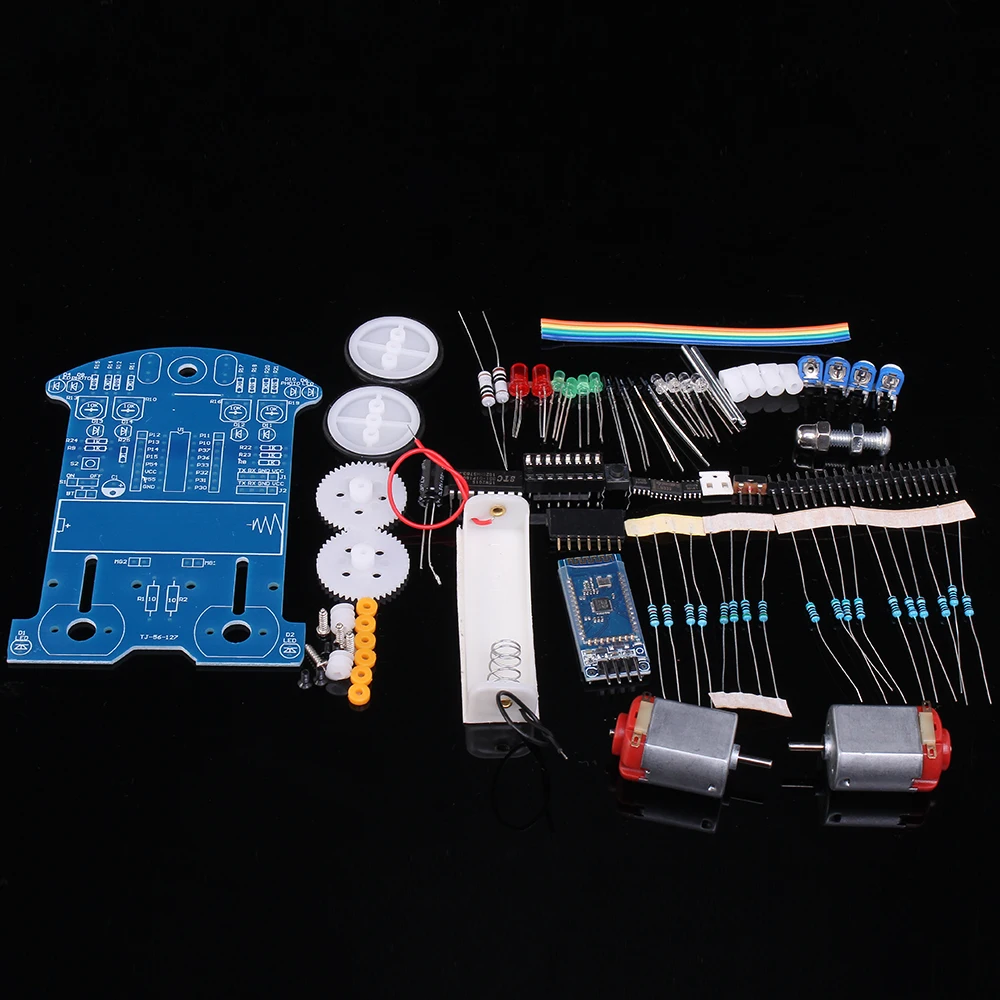

1>.1pcs LM393 DIP-8

2>.1pcs IC Socket DIP-8

3>.2pcs 100uF Electrolytic Capacitor

4>.2pcs 10K Potentiometer

5>.4pcs 51ohm Metal Film Resistance

6>.2pcs 1K Metal Film Resistance

7>.2pcs 10ohm Metal Film Resistance

8>.2pcs Photoresistor

9>.2pcs 5mm Red LED

10>.2pcs 5mm White LED

11>.2pcs TO-92 S8550

12>.1pcs 6*6 Self-Locking switch

13>.2pcs DC Motor

14>.2pcs Wheel

15>.2pcs Tires

16>.2pcs Axle

17>.6pcs Gasket(Non-essential)

18>.4pcs Three-way sleeve

19>.2pcs Gear

20>.2pcs Worm

21>.4pcs Screw

22>.4pcs Motor Screw(Black)

23>.1pcs Mecanum wheels Screw

24>.1pcs Mecanum wheels Nut

25>.1pcs Mecanum wheels Screw Cap

26>.4pcs 6mm Cable

27>.1pcs AA*2 Battery Case(Not shown in the picture)

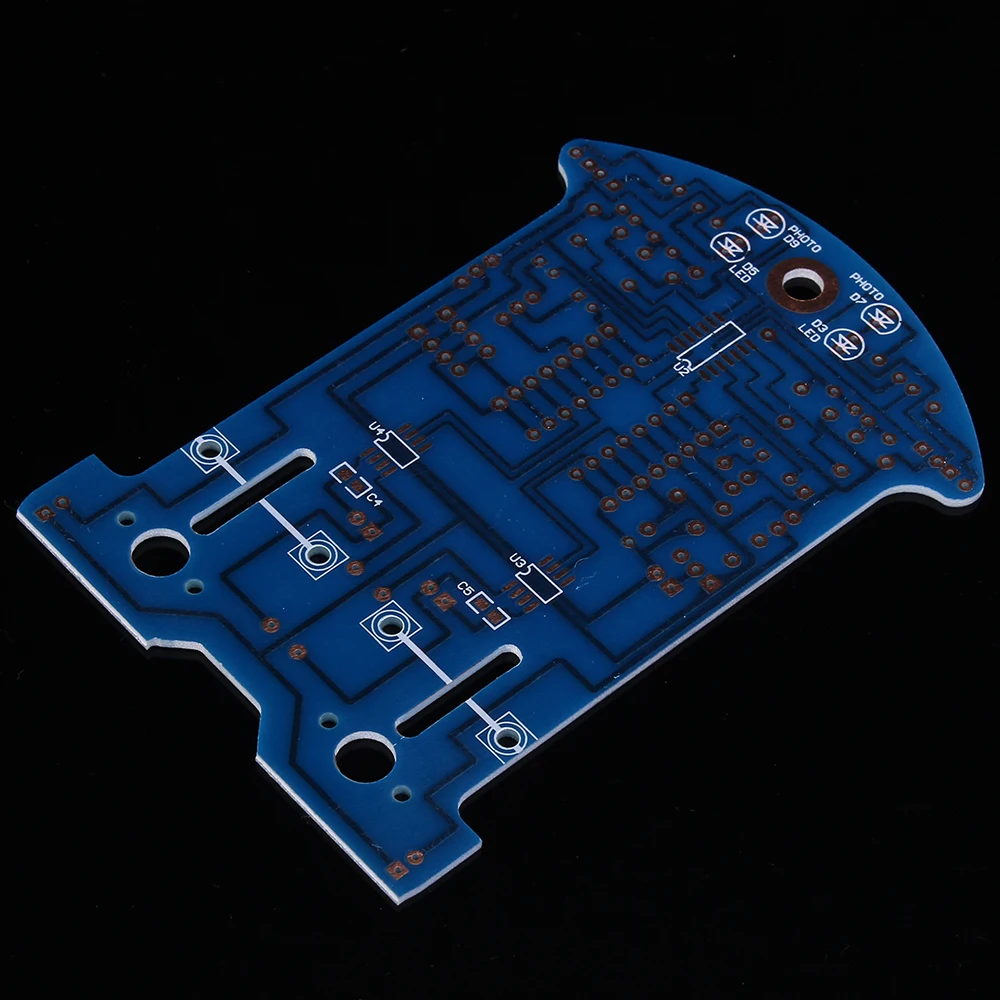

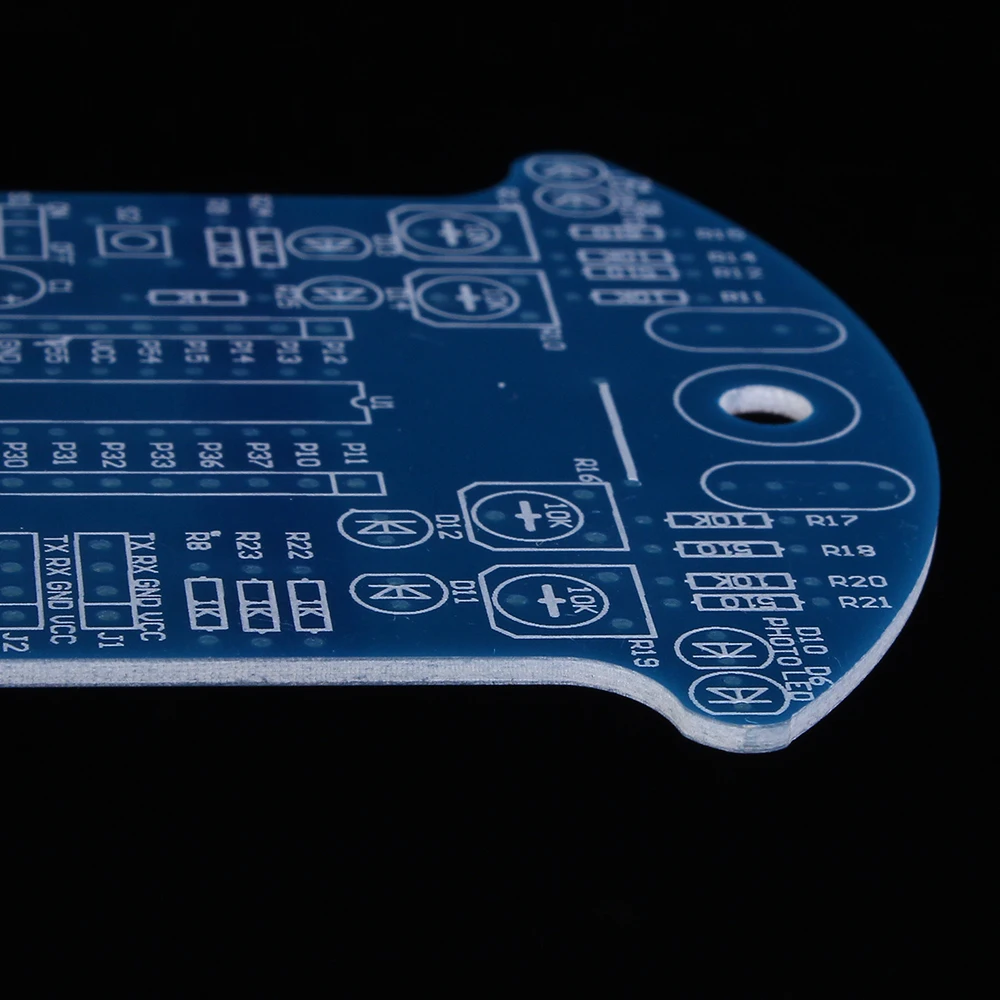

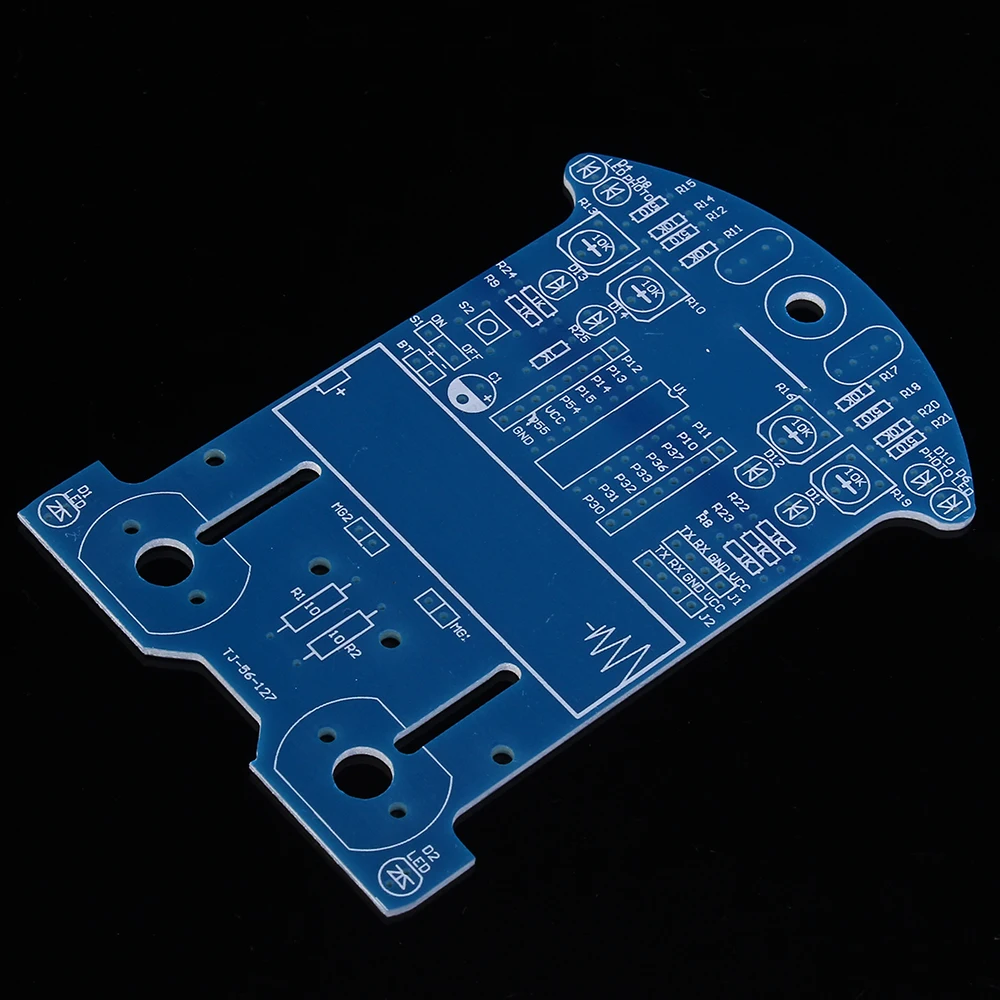

28>.1pcs PCB
