Monday Kids 2pcs/lot Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 3.3V-30V 1Hz-150Khz PWM Board Module

Be the first to review this product

$7.10

Availability: In stock

SKU

RY-ES-516

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
is_customized: Yes
Model Number: LCD Display PWM Pulse Frequency Duty Cycle Adjustable Module
Supply Voltage: 3.3 ~ 30V
Operating Temperature: -20 ~ +70 Celsius
Condition: New
Application: For a square wave signal generator

Module Highlights:

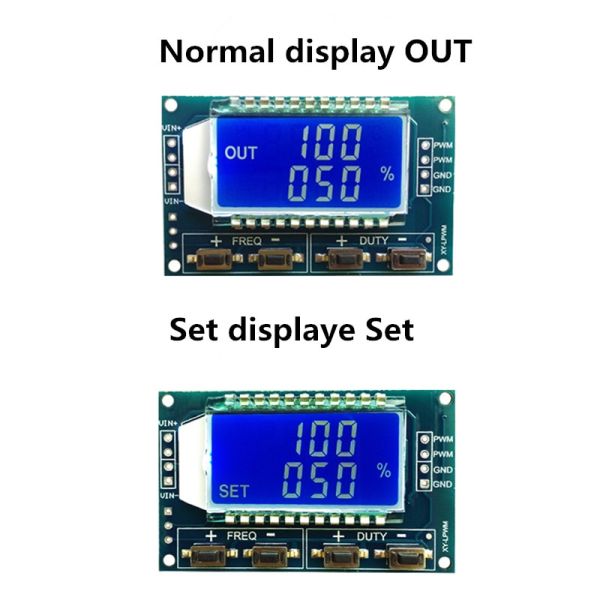

1 LCD display frequency and duty cycle, very clear, PWM output can be set separately frequency and duty cycle;

2. Wide frequency range, high precision;

3. It can use serial communication

Module description

PWM output, you can set the frequency, duty cycle;

Frequency is divided into four ranges, automatic switching:

1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz;

2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz;

3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz

4. X.X.X (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz

e.g. frequency display: 100 indicates PWM output 100Hz pulse;

1.01 indicates PWM output 1.01K pulse;

54.1 indicates that the PWM output has a pulse of 54.1 kHz;

1.2.4 indicates that the PWM output is 124 kHz pulse;

Duty cycle range: 0 ~ 100%;

All set parameters, power down save.

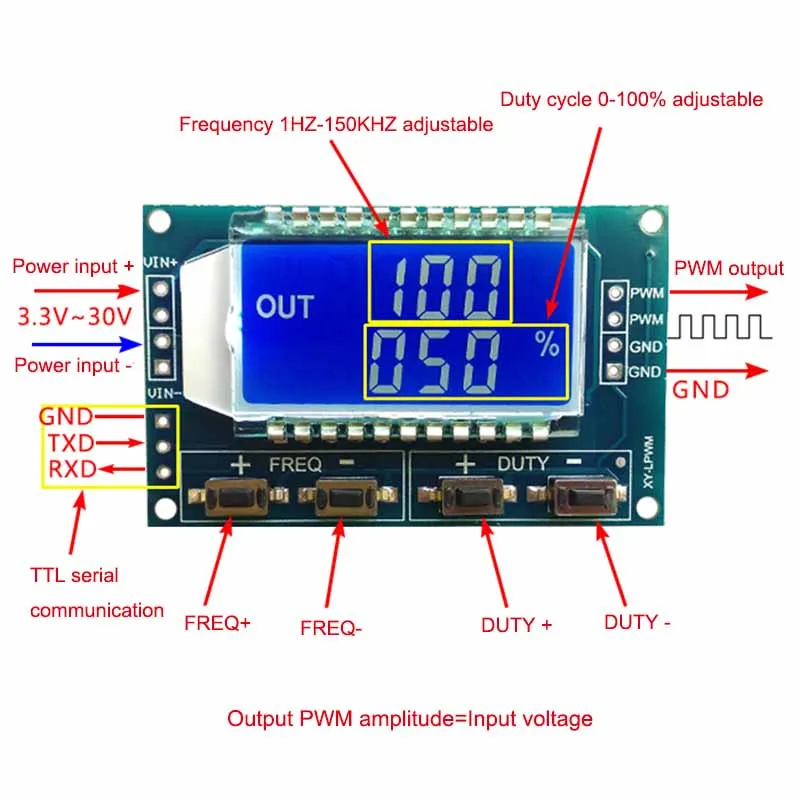

Parameter settings:

The module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (fast increase or decrease), very simple, set the parameters automatically save, power failure Lost.

Module parameters:

1. Working voltage: 3.3 ~ 30V;

2. Frequency range: 1Hz ~ 150KHz;

3. Frequency accuracy: the accuracy in each range is about 2%;

4. Signal load capacity: the output current can be about 5 ~ 30ma;

5. Output amplitude: PWM amplitude equal to the supply voltage;

6. Ambient temperature: -20 ~ +70 ℃.

Scope of application:

1. Used as a square wave signal generator, generate square wave signal for experimental development and use;

2. Used to generate a square wave signal that controls the motor driver;

3. generate adjustable pulse for MCU use;

4. Generate adjustable pulse, control related circuit (PWM dimming speed and other applications)
