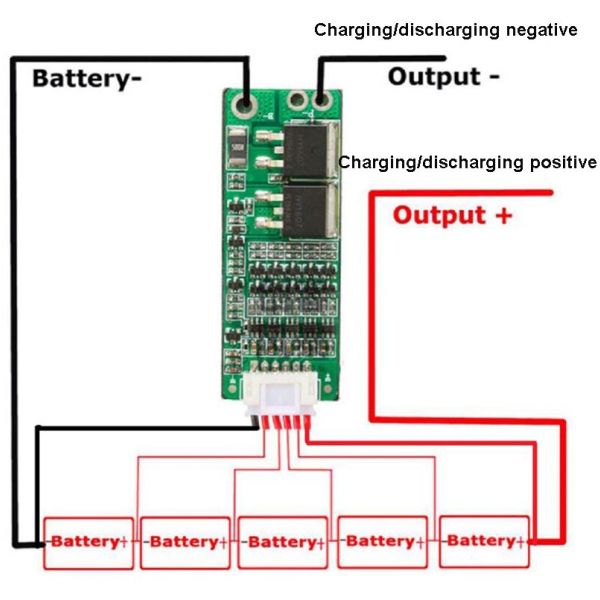

Monday Kids 2pcs/lot 5S 15A Li-ion Lithium Battery BMS 18650 Charger Protection Board 18V 21V Cell Protection Circuit

Be the first to review this product

$8.77

Availability: In stock

SKU

RY-ES-459

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Model Number: 5S 15A Li-ion Lithium Battery BMS 18650
is_customized: Yes
Charging MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 56A

Description:

Name: Protection board

Size: about 60 * 23 mm

Charging voltage: 21 V

Charging MOS pressure value: 35 V

Discharge MOS pressure value: 35 V

Charging current: 56A

Continuous discharge current: 15A

Overcurrent protection: 50/55/60 A

Overcurrent protection delay: 20/25 / 30mS

Single section self-consumption: 30uA

Power consumption between blocks: 3uA

Single-stage overcharge detection voltage: 4.18- /4.22V

Overcharge recovery voltage 4.05~4.15 V

Overcharge detection delay: 0.5 / 1.0 / 2.0S

Single-stage overdischarge detection voltage: 2.75-2.85 V

Overdischarge recovery voltage: 2.90-3.20 V

Overdischarge detection delay: 0.5-2.0S

Short circuit / overload / over current protection to restore short circuit / over discharge / over current protection, remove load automatic recovery

Short circuit protection delay 200/500 / 600uS

Normal operation of B-to-P-resistor: 5mΩ

Continuous 15A current maximum temperature rise: 25 ° C

Working environment (humidity) relative humidity: ≥98% (humidity is stable for a long time)

Working environment (temperature) -30~80°C (long-term stability in lower temperature range)

Packae Inclusing:

2 * 5S 15A Li-ion Lithium Battery BMS
