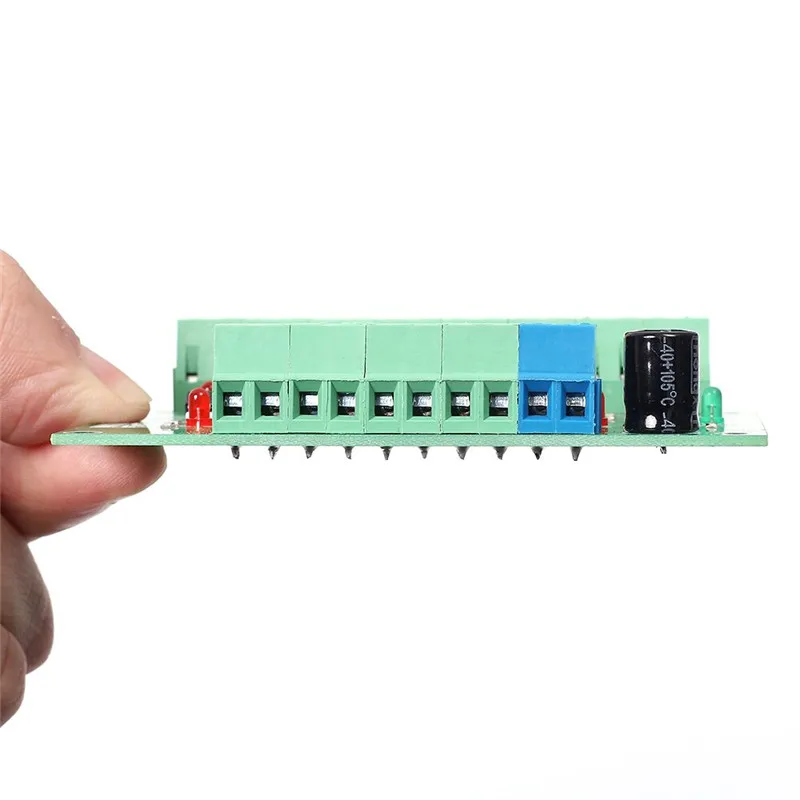

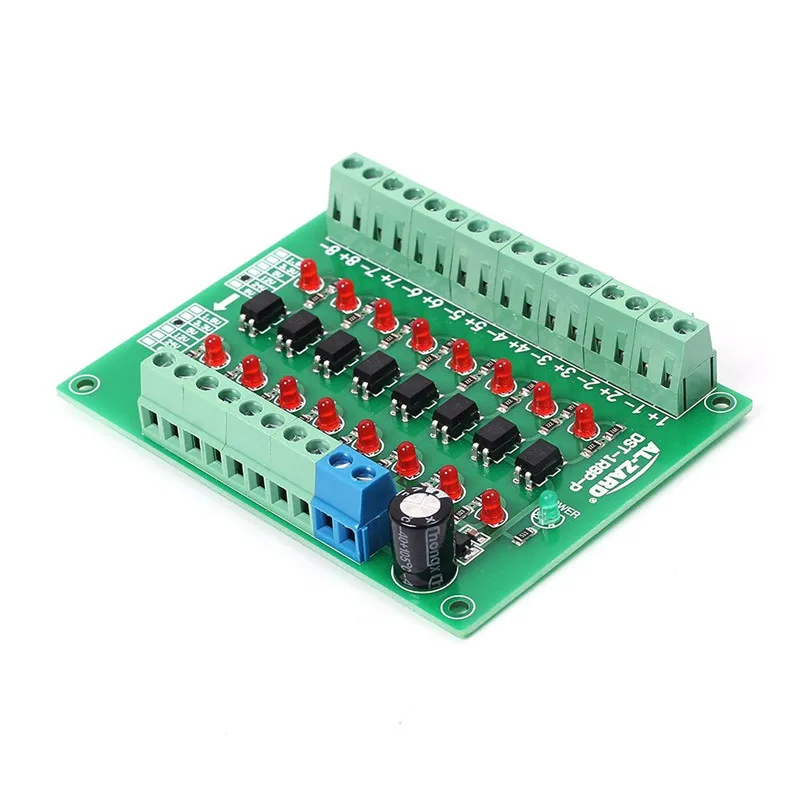

Monday Kids 24V To 5V 8-Channel 8bit Photoelectric Isolation Module Level Voltage Converter PNP Output PLC Signal Converter Adapter Module

$7.32
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Application: Computer
  • Supply Voltage: signal level voltage convert
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: none
  • Model Number: 8-Channel 8bit
  • Dissipation Power: none
  • is_customized: Yes
  • Package: well package
  • Limit Conversion Frequency: 20KHz
  • Appearance Size: 85*98*18mm

Product Introduction:


1.Adopt optocoupler
2.Limit Conversion Frequency:20KHz
3.Appearance Size:85*98*18mm
4.Applications:for signal isolation;MCUs and PLCs level conversion of signals;transform PNP,NPN singal into PNP signal;signal level voltage convert

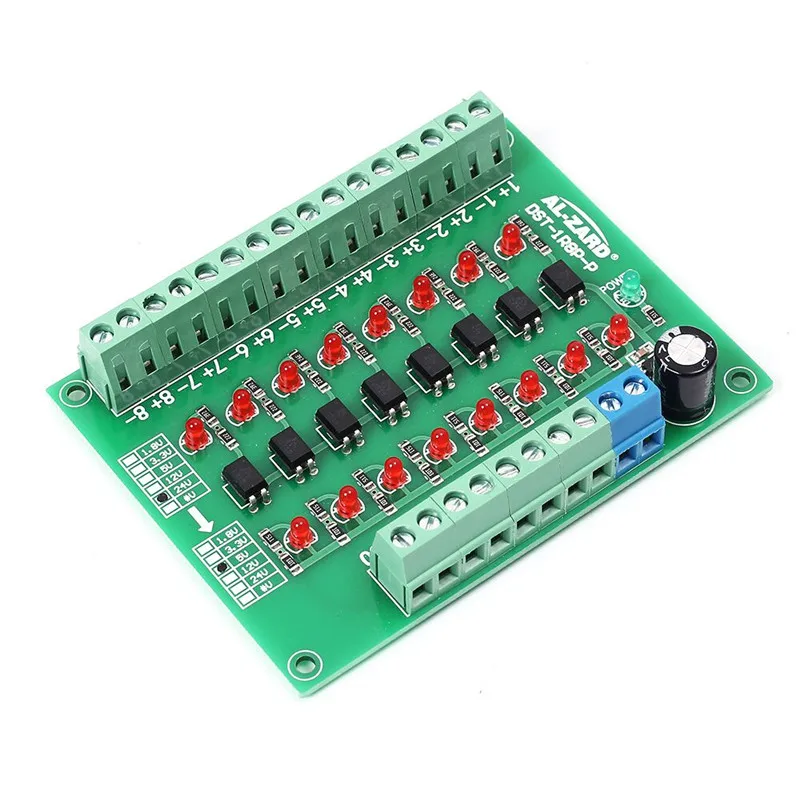

Pin Definition:


1.1+:the first channel signal input positive
2.1-:the first channel signal input negative
3.2+:the second channel signal input positive
4.2-:the second channel signal input negative
5.3+:the third channel signal input positive
6.3-:the third channel signal input negative
7.4+:the fourth channel signal input positive
8.4-:the fourth channel signal input negative
9.5+:the fifth channel signal input positive
10.5-:the fifth channel signal input negative
11.6+:the sixth channel signal input positive
12.6-:the sixth channel signal input negative
13.7+:the seventh channel signal input positive
14.7-:the seventh channel signal input negative
15.8+:the eighth channel signal input positive
16.8-:the eighth channel signal input negative
17.VCC:DC power supply positive
18.GND:DC power supply negative
19.O1:the first channel signal output
20.O2:the second channel signal output
21.O3:the third channel signal output
22.O4:the fourth channel signal output
23.O5:the fifth channel signal output
24.O6:the sixth channel signal output
25.O7:the seventh channel signal output
26.O8:the eighth channel signal output


  • Unit Type: piece
  • Package Weight: 0.08kg (0.18lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
