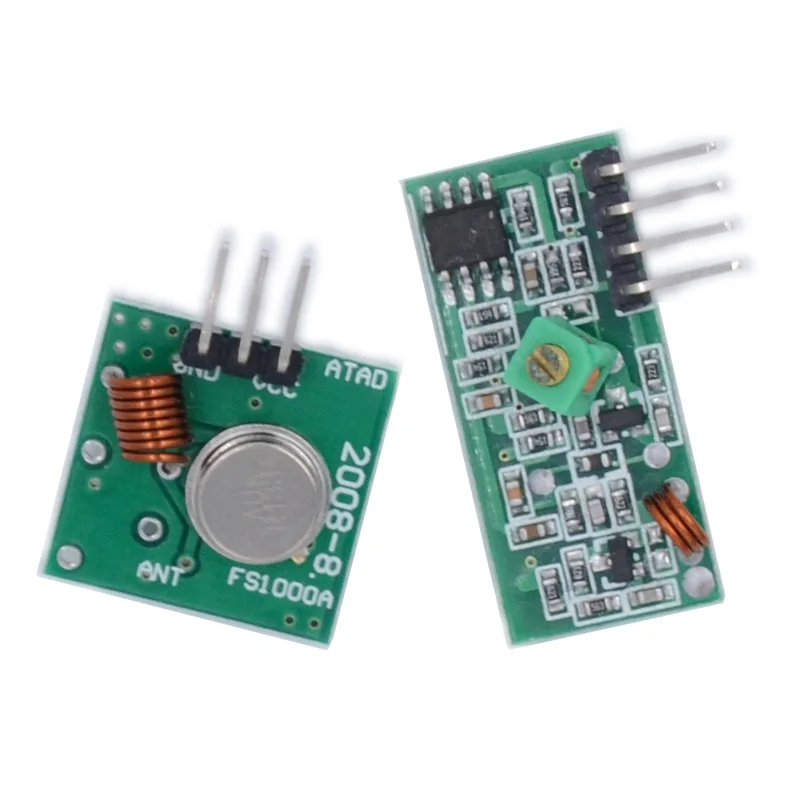

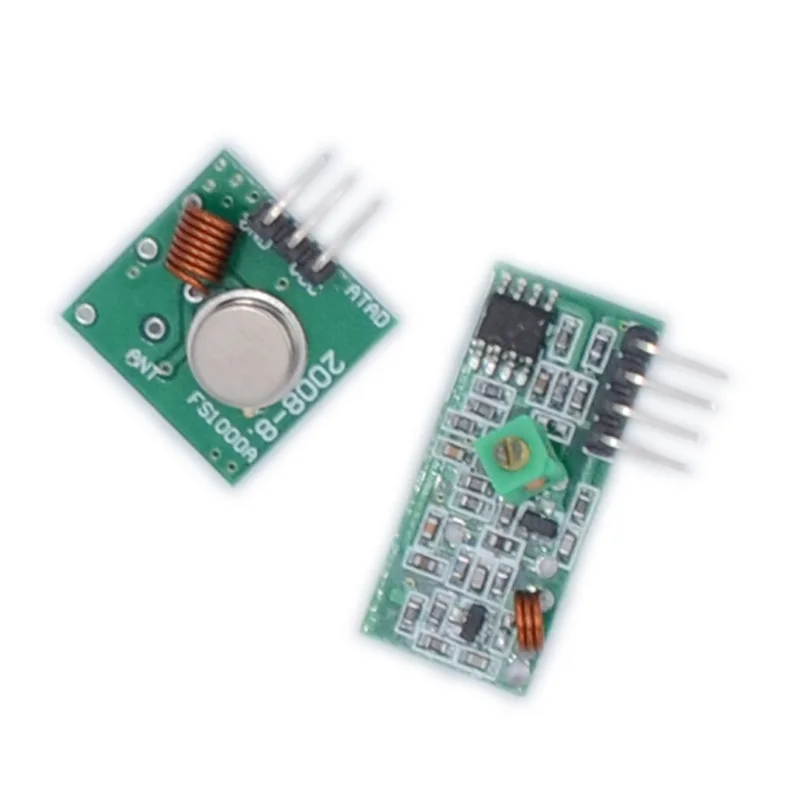

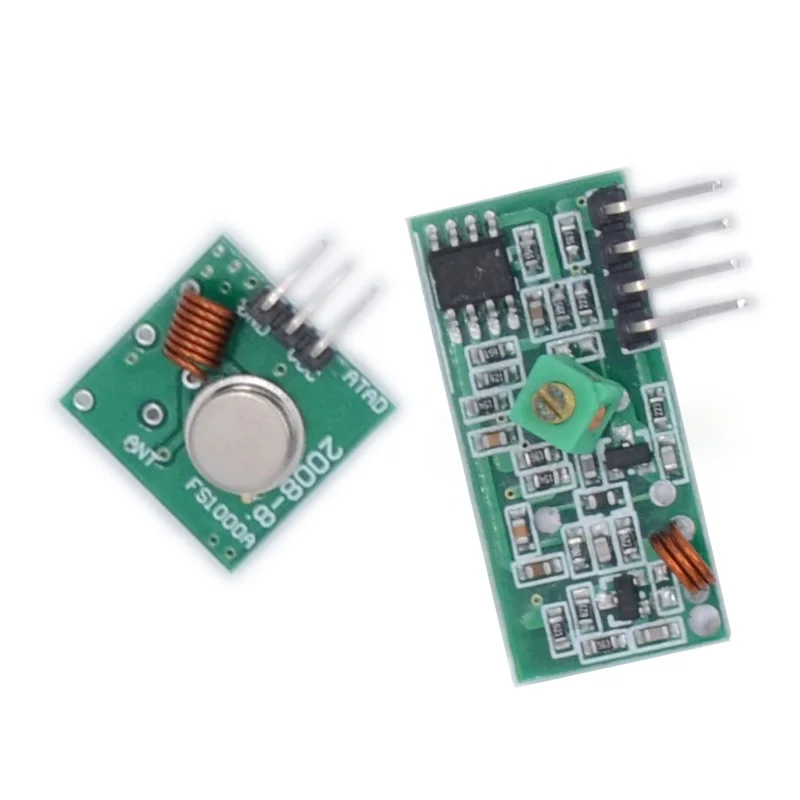

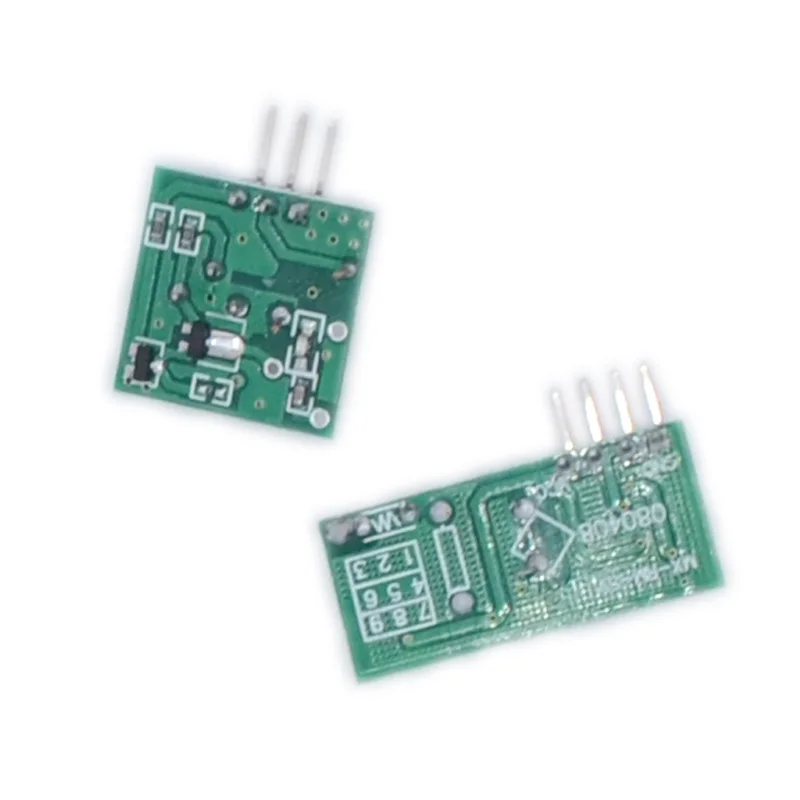

433Mhz RF Wireless Transmitter Module and Receiver kit For Arduino

Note:2pcs=1pcs transmitter module+1pcs receiver module

Receive module parameter:

• Model:MX-05V

• Voltage:DC5V

• Current:4MA

• Frequency:433.92MHZ

• Sensitivity:-105DB

• External antenna:32CM single core wire,heliciform shaped

• Size:30*14*7mm

Transmitter parameter:

• Model:MX-FS-03V

• Transmitter distance:20-200Meters(influenced the voltage)

• Voltage:3.5-12V

• Size:19*19mm

• Working mode:AM

• Transmitter speed:4KB/S

• Transmitter power:10mW

• Frequency:433M

• Attenna:25cm Single core wire or mutil-core wire

• Pin arrangement: left-right(DATA;VCC;GND)

Applications:

Remote controller,receive modulr,car bugular alarm,Rolling door,window,remote control LED, Amplifer and so on.

Note:

• The VCC voltage should be consistent with the module operating voltage, and the power filter must be made;
• The antenna has a great influence on the receiving effect of the module. It is better to connect the antenna with 1/4 wavelength, and generally use 50 ohm single core wire, the length of antenna is about 17cm 433M;
• The position of the antenna also has influence on the effect of receiving module, antenna installation, as far as possible straight away from the shield, high pressure, and local interference; receiving frequency, decoding and oscillation resistance should use and emission matching.

1 * transmitter module

1 * receiver module
