Description:
Application: lithium iron phosphate, ternary lithium battery, lithium cobalt oxide, lithium manganese oxide battery pack

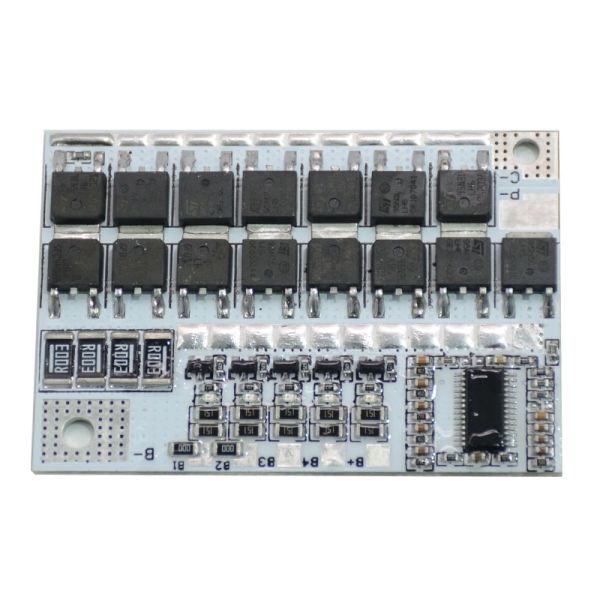

QS-B305ABL-50A is a lithium battery protection board specially designed for lithium phosphate, ternary lithium battery, lithium cobalt oxide and lithium manganate battery. This protection board consists of 3 strings, 4 strings, 5 series lithium battery protection board (the universal version adjusts the corresponding components according to actual needs), adopts mature protection circuit, special IC and supports disconnection protection, and imports high current ultra low internal resistance MOS ( The internal resistance of a single MOS is as low as 3 milliohms. It has perfect and stable charging and discharging protection functions. The battery core is balanced, the balance current is proper, the balanced heat is reasonable, and the performance of the battery pack is not affected.
Parameter:
For Li-POLYMER LiMnO protection parameters (3.2V)
Single cell overcharge protection voltage: 3.61-3.69 V.
Single cell battery overcharge protection recovery voltage: 3.5-3.6 V.
Overcharge protection delay: 1.5-2.5S
Single cell battery over-discharge protection voltage: 2.27-2.43 V.
Single cell battery over-discharge protection recovery voltage: 2.45-2.65 V.
Overcharge protection current: 100A
Over-discharge protection current: 100A
Over-discharge protection delay: 0.5-1.5S
Temperature protection: Yes, there is a temperature control interface.
Disconnect protection: yes
Shortage protection: yes
Shortage delay: $100-600
Short circuit protection recovery mode: Unload release.
Contact discharge current: 80A
Synopline discharge current: 60A
Charging current: 60A
Balance function: yes
Ampere balance (current): 50MA
Current balance accuracy: 3.355-3.455V
