Monday Kids 10pcs BMS 1S 3.7V 2.5A Lithium Battery Protection Board PCM PCB Polymer Over Charge Discharge Li-ion Protect Module Over Board

Be the first to review this product

$2.32

Availability: In stock

SKU

EK232

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
Type: Logic ICs
Model Number: Power Module
Dissipation Power: none
is_customized: Yes
Operating Temperature: -40 - 50 Celsius
Supply Voltage: DC 4.2--5V
Application: Power Module
Board Size: 28*3.8*1.2mm
Internal Resistance: MOSPET <= 40m ohm
Feature: pcb board
Name: module charging discharge

Product Introduction:
1.Charing Voltage:DC 4.2--5V CC/CV
2.Single Battery Consumption Current:<=6uA continuous discharging current 2.7A
3.Overcharging Detection Voltage:4.2 V+/-0.025V
4.Overcharging Detection Delay Time:150-500 ms
5.Overcharging Restore Voltage:4.0V+/-0.025V
6.Overdischarging Detection Voltage:2.75V+/-0.1V
7.Overdischarging Detection Delay Time:50-150ms
8.Overdischarging Restore Voltage: 2.9V+/-0.10V
9.Overcurrent Detection Voltage:150+/-30mv
10.Overcurrent Detection Current:4.5+/-0.5A
11.Overcurrent Detection Delay Time:5ms-15ms
12.Overcurrent Restore Type:automatic restore
13.Short Circuit Detection State:external short circuit
14.Short Circuit Detection Delay Time:<=50us
15.Short Circuit Restore State:automatic restore
16.Internal Resistance:MOSPET <= 40m ohm
17.Operating Temperature Range:-40 - +50 Celsius
18.Storage Temperature Range:-40 - +90 Celsius

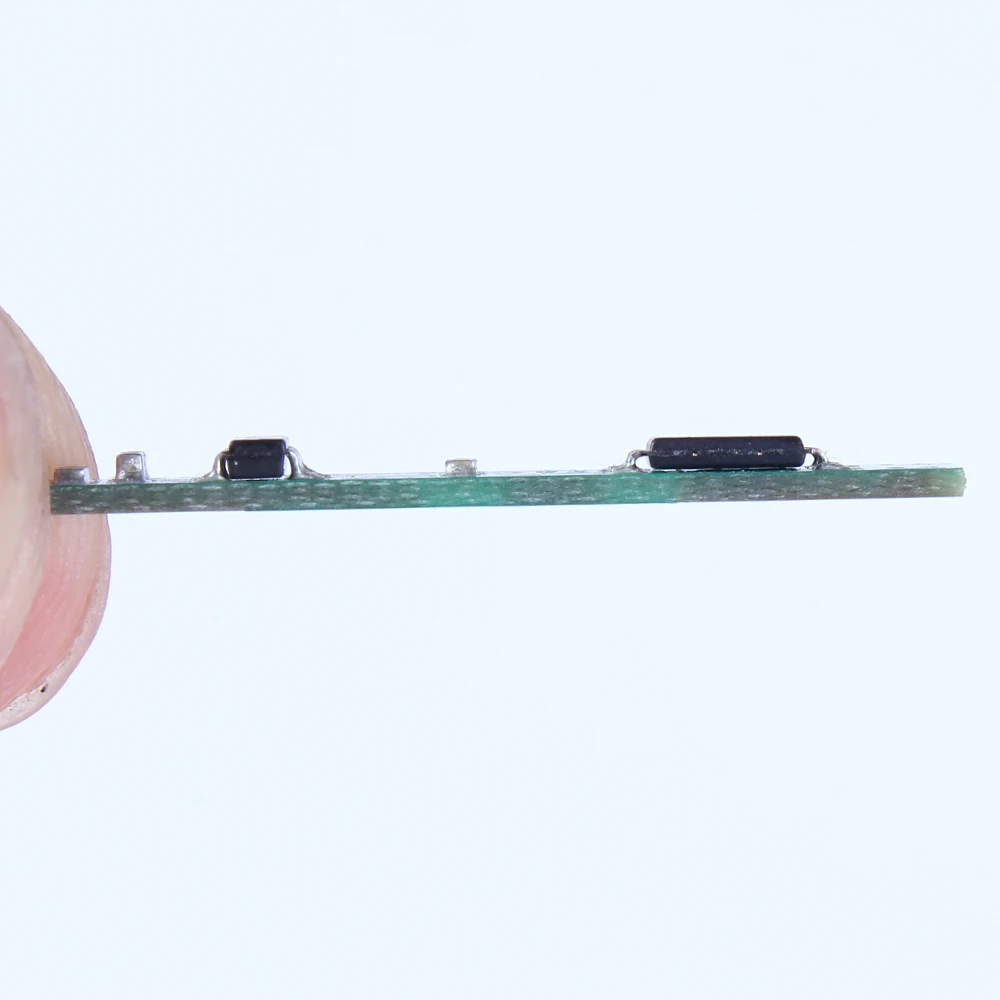

19.Size:28*3.8*1.2mm

Features:
1.Connecting Charger Teminal adopts withstand high voltage instrument
2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit)
3.MOS tube can control battery charging and discharging
4.Wide Operating Temperature Range
5.Low Consumption Current

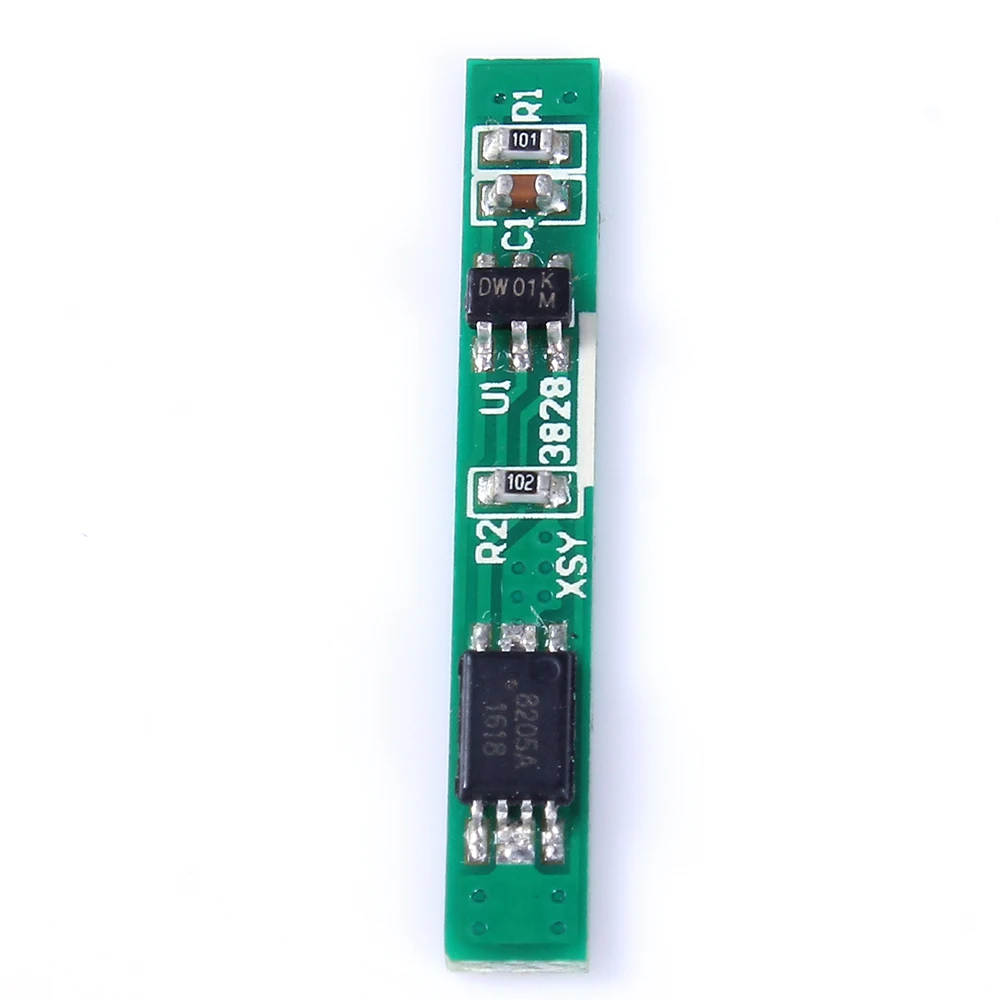

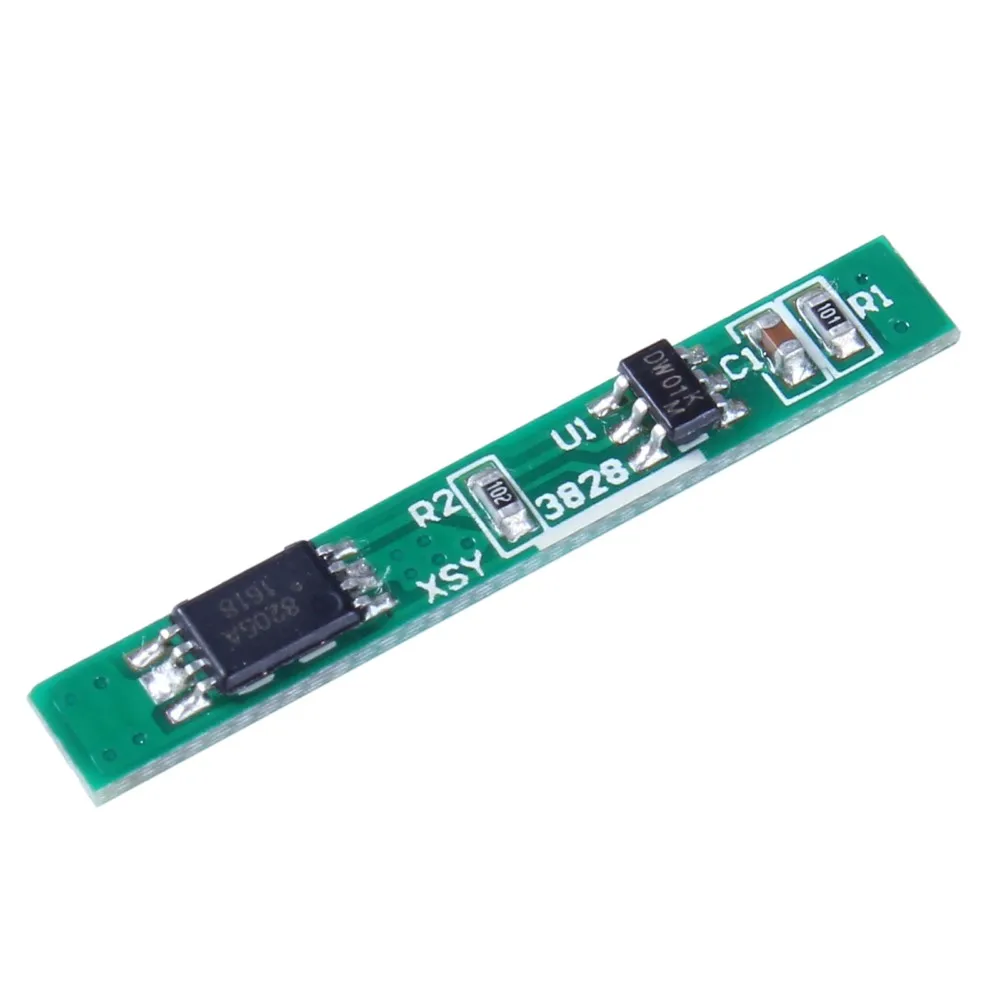

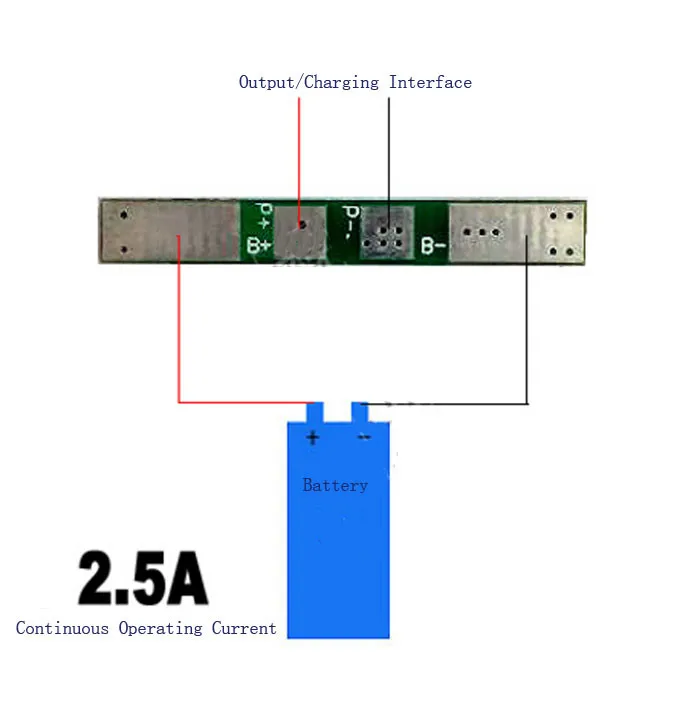

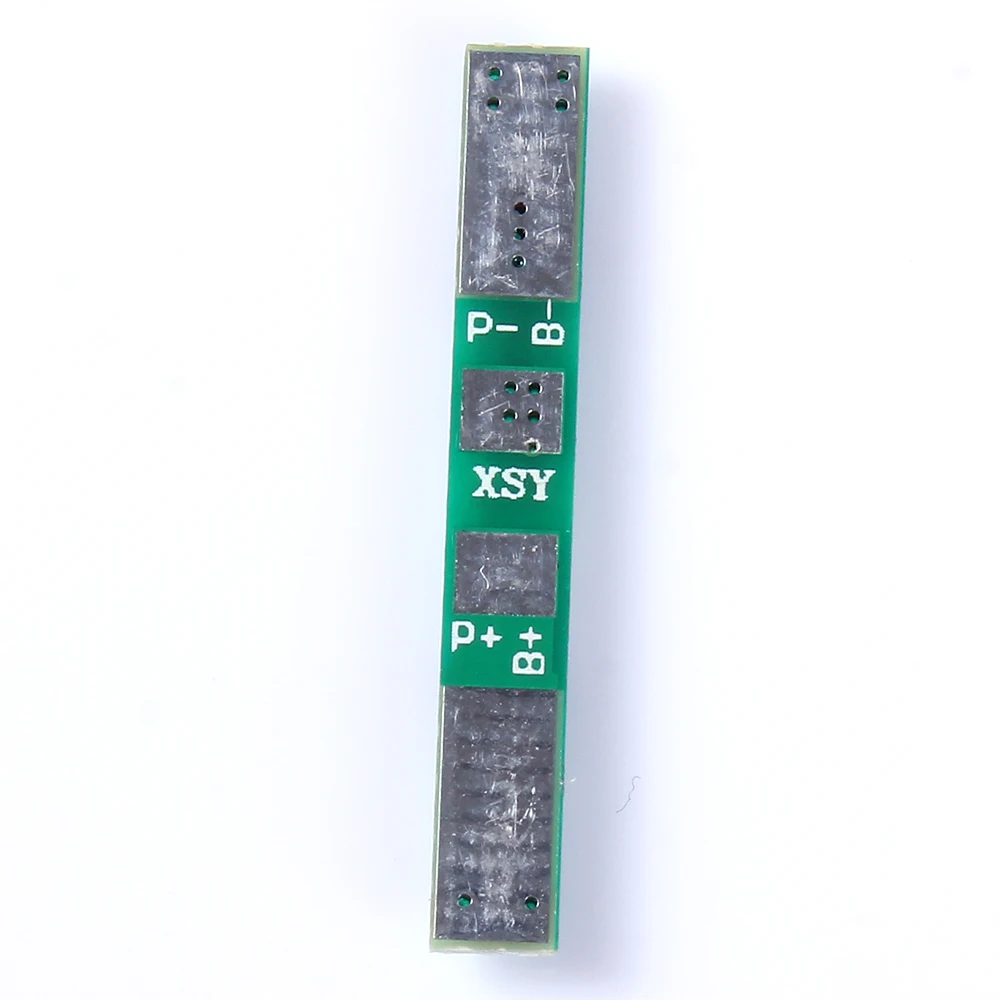

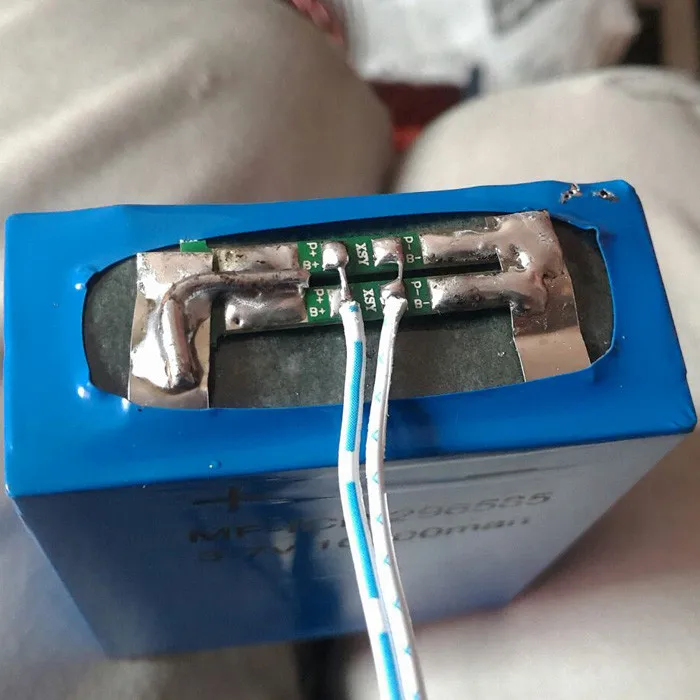

Soldering Point Introduction:
1.B+:connect with power positive
2.B-:connect with power negative
3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
