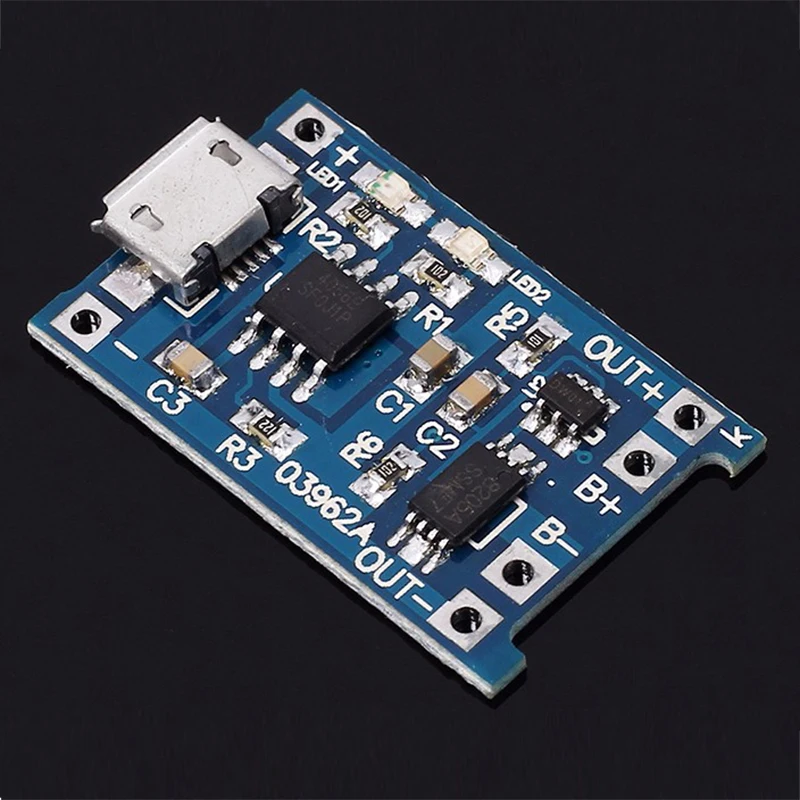

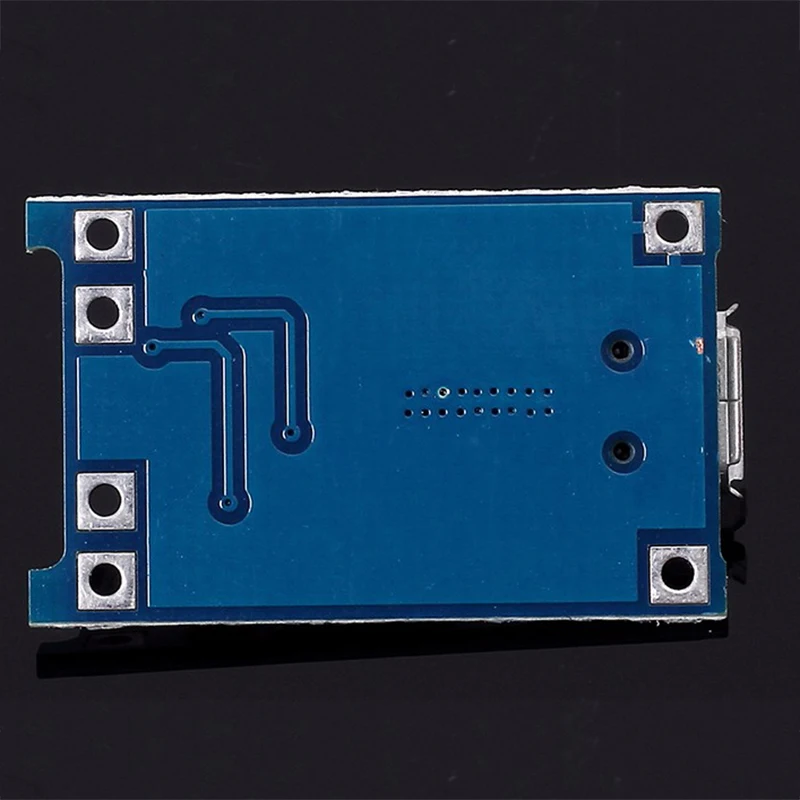

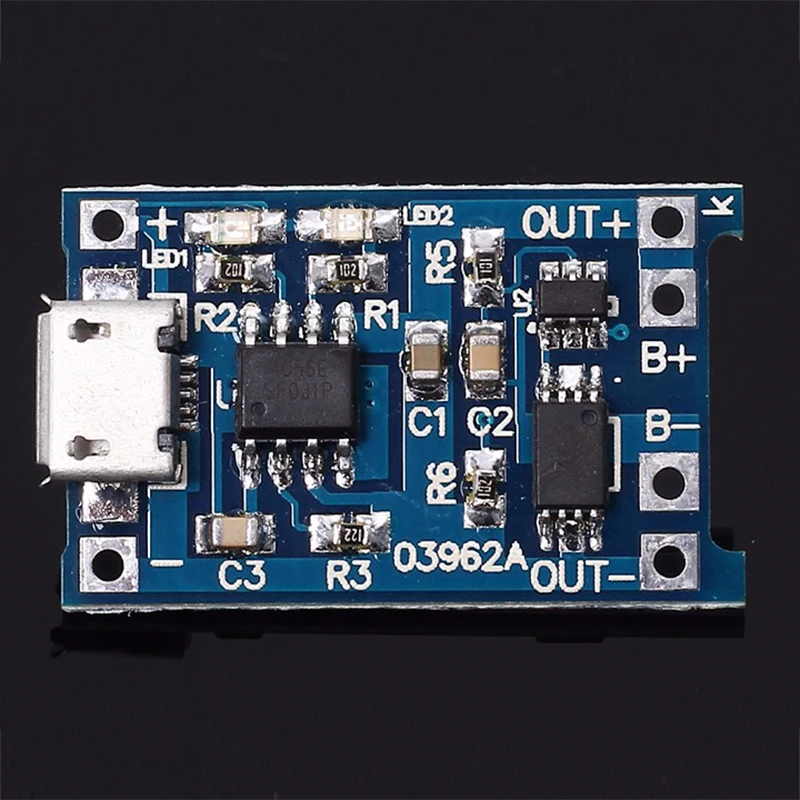

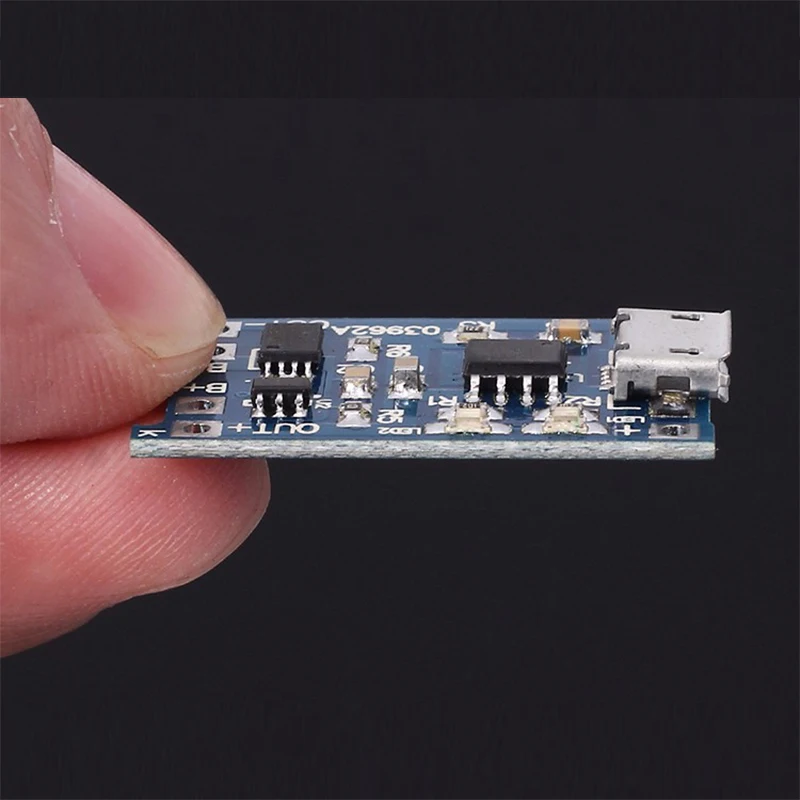

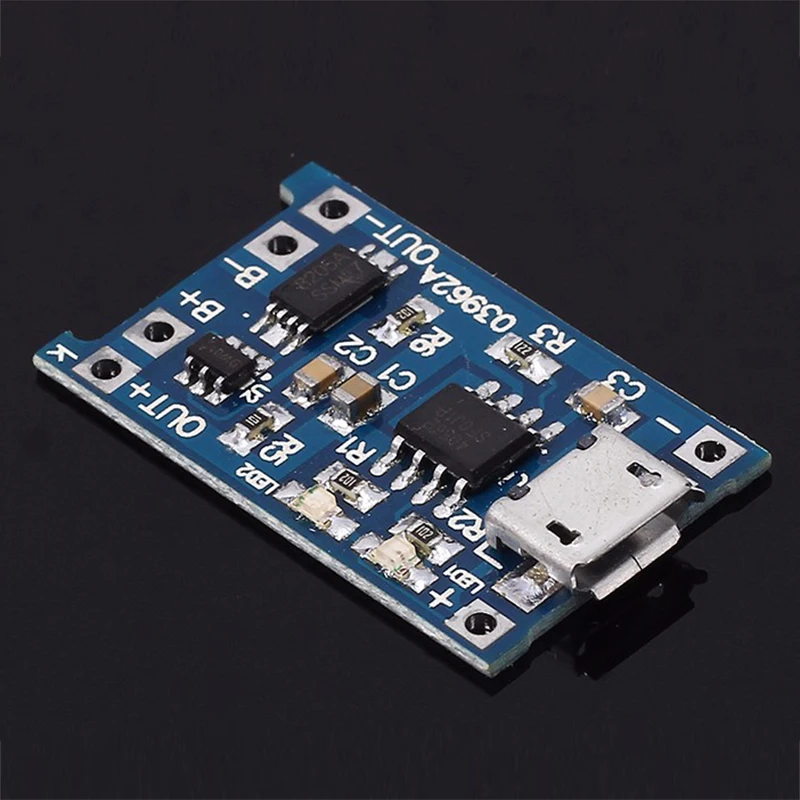

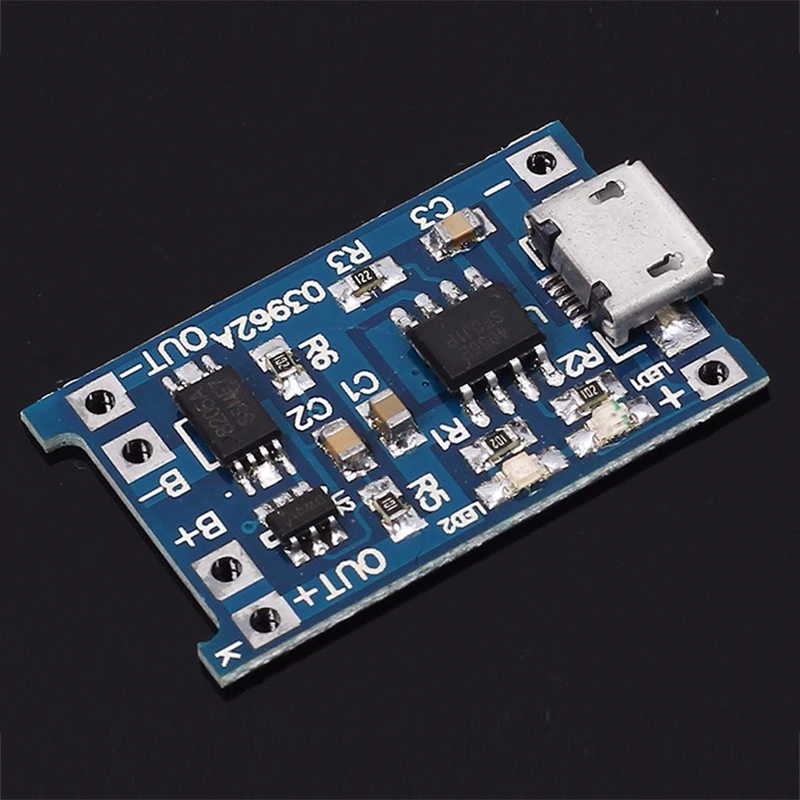

Monday Kids 10pcs/lot TP4056 5V 1A TENSTAR ROBOT Micro USB 18650 Lithium Battery Charging Board Charger Module+Protection 2.6*1.7cm
$1.93
In stock
Email
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 5V
- Condition: New
- Type: Logic ICs
- Model Number: Power Bank Charger Board
- Operating Temperature: -20 -50 Celsius
- is_customized: Yes
- Dissipation Power: None
- Application: Power Bank Charger Board
- Charging Cut-Off Voltage: 4.2V
- Maximum Charging Current: 1000mA
- Overdischarging Protection Voltage: 2.5V
- Overcurret Protection Current: 3A
- Board Size: 2.6*1.7cm
NOTE : we have documents of most of products in our store, If you need it , contact us :) | |
|
Product Introduction:
1.Input Voltage:5V
2.Charging Cut-Off Voltage:4.2V±1%
3.Maximum Charging Current:1000mA
4.Overdischarging Protection Voltage:2.5V
5.Overcurret Protection Current:3A
6.Board Size:2.6*1.7cm
Notice:
1.Testing Current Meter can only serial conenct with charging board 5V input port
2.Charging current should be battery capacity 0.37C,that is 0.37 times
3.Charging connecting cable should not be too thin and long
4.Make Sure that connecting with battery perfectly
5.If 5V input voltage is a little high,such as 5.2V or 5.5V,it will cause charging current cannot reach 1000MA.This is normal phenomenon.
6.Input transposition hasn't impact on chip;but output transposition will burn the chip.
- Unit Type: lot (10 pieces/lot)
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
