Environmental Temperature Controller Competition Kit - DIY Soldering Assembly and Debugging Kit

This product is an Environmental Temperature Controller Competition Kit designed for electronic skills competitions and DIY projects. The kit includes all necessary electronic components and circuit board, allowing users to assemble and solder a complete environmental temperature controller. It is ideal for students for electronic skills training and for electronic enthusiasts for DIY projects.

Product Parameters:

Model: JS-56-35
Power Supply Voltage: 5V DC
Board Size: 68 x 51mm

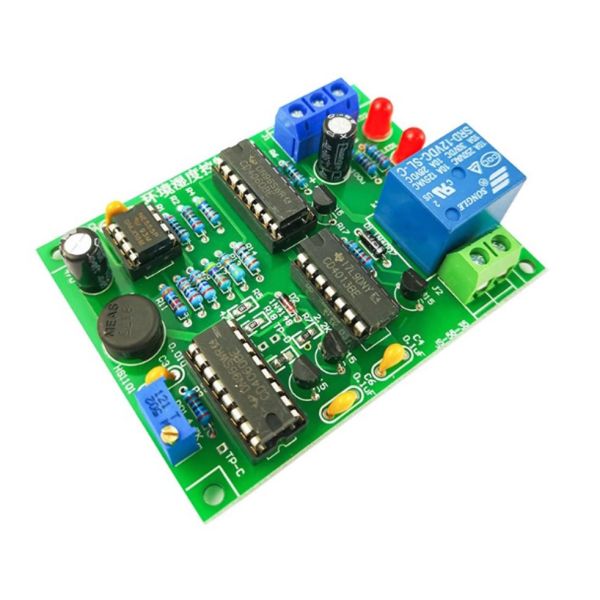

Function Explanation: The environmental temperature controller (hereafter referred to as the temperature controller) is composed as shown in Figure 1, with the printed circuit as shown in Figure 2. The circuit mainly consists of a humidity-sensitive capacitor, humidity/frequency conversion circuit, frequency pulse generation circuit, frequency comparison circuit, and humidity control output circuit. The humidity-sensitive capacitor HS110 and LM555 form the humidity/frequency conversion circuit, converting the physical quantity of humidity into a pulse frequency corresponding to the humidity level. The integrated capacitor U3 and external RC components form the reference pulse generator, which outputs the signal after a 12-stage division. The pulse frequency comparison circuit, composed of U2 and some peripheral components, accepts signals from the humidity/frequency conversion circuit and the reference pulse generator. The comparison result is latched by a D flip-flop and output to the temperature controller K1 to engage.

The specific effect is as follows: Blow air lightly on the humidity-sensitive capacitor to increase the relative humidity around it. The humidity/frequency conversion circuit outputs a lower frequency. When the pulse frequency is below the set value (corresponding to a relative humidity of 90% RH), the humidity control circuit automatically outputs (K1 engages, LED1 lights up), stopping the airflow to the humidity-sensitive capacitor. After dehumidification (dehumidification time is about 20 seconds), the humidity control circuit stops outputting (K1 disengages, LED1 goes out).

Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished environmental temperature controller can be used for practical applications such as temperature and humidity control.


Combination of Education and Entertainment: Students can learn electronic knowledge through hands-on creation, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and easy to understand.


Usage Instructions:

Preparation: Gather soldering tools (soldering iron, solder wire, etc.) and power supply.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 5V DC power supply.
Test Function: Test the environmental temperature controller's functionality by inputting a signal to ensure it works properly.


Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.
