Mondaykids Delay Amplifier Speaker 200W Dual Channel Protection Board Kits for OCL or OTL Output Power Amplifier Circuit

$8.50
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: none
  • Model Number: OCL Amplifier Board
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes

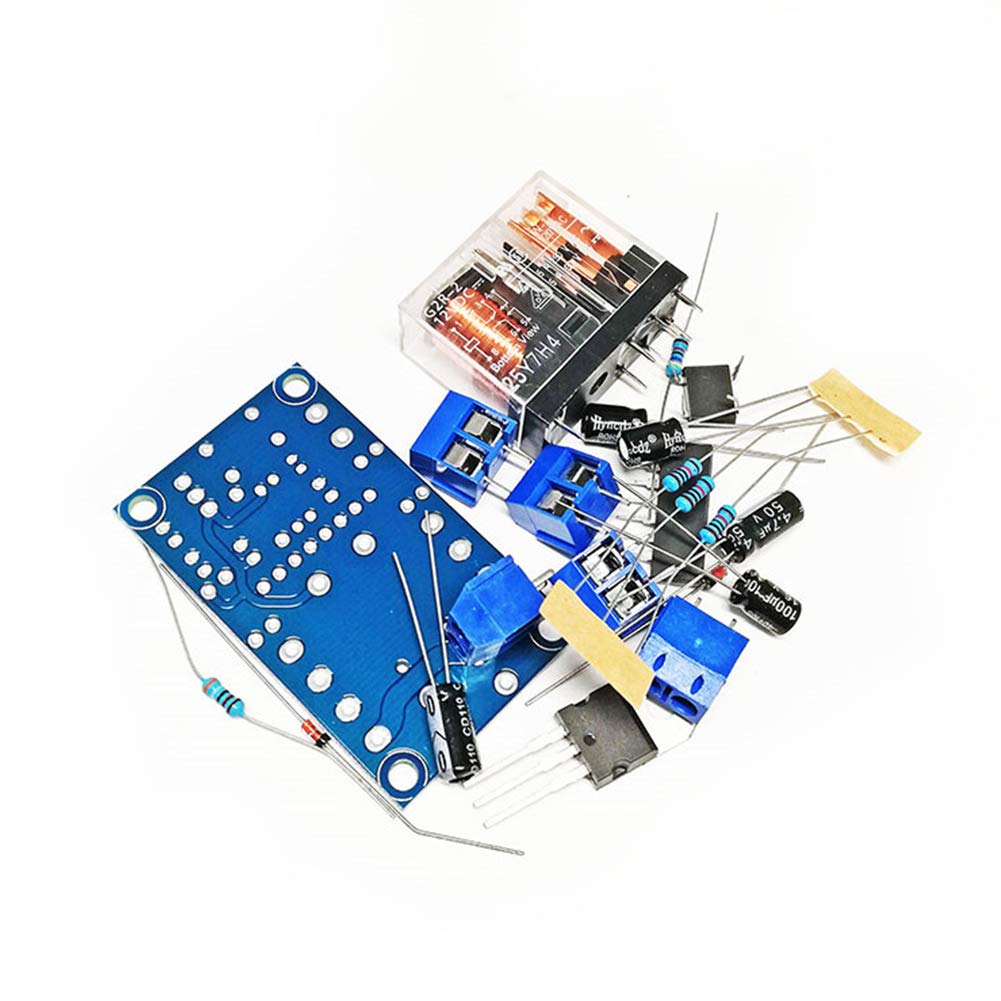

  • Available in DIY Kit, Assembled Board.
  • Sealed silver touches Japan's Omron relay, reliability and long life.
  • Start delay and DC protection, power anti-shock.
  • Response time about 2 seconds. Using power up to 200W, as mono parallel can be increased to 400W.

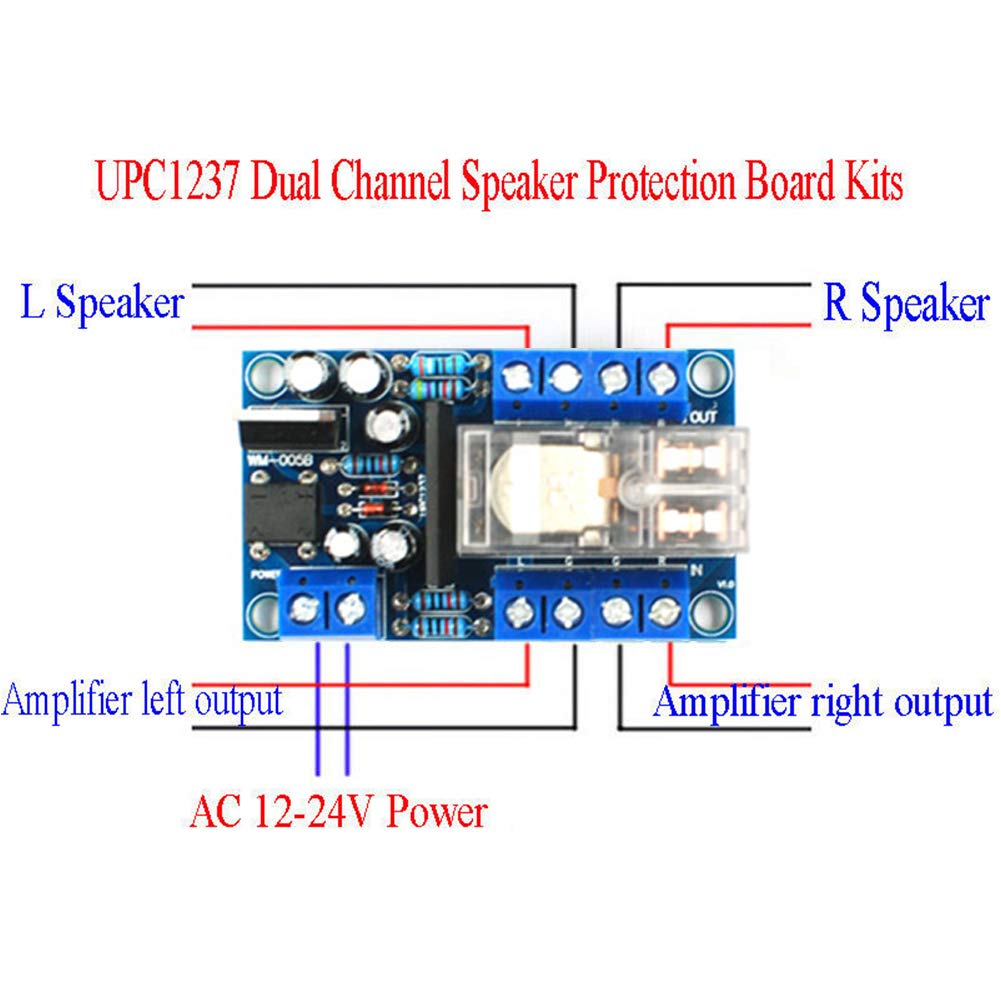

  • The Board suitable for OCL or OTL output power amplifier circuit.

Features:

The Board suitable for OCL or OTL output power amplifier circuit.

Start delay and DC protection, power anti-shock.

Sealed silver touches Japan's Omron relay, reliability and long life.

7812 chip for voltage regulation, power supply range allows A C 12V-24V.

Response time about 2 seconds. Using power up to 200W, as mono parallel can be increased to 400W.

Circult is simple and reliable, DIY very easy, free debugging.



Specifications:

Material: PCB

Color: As Shown

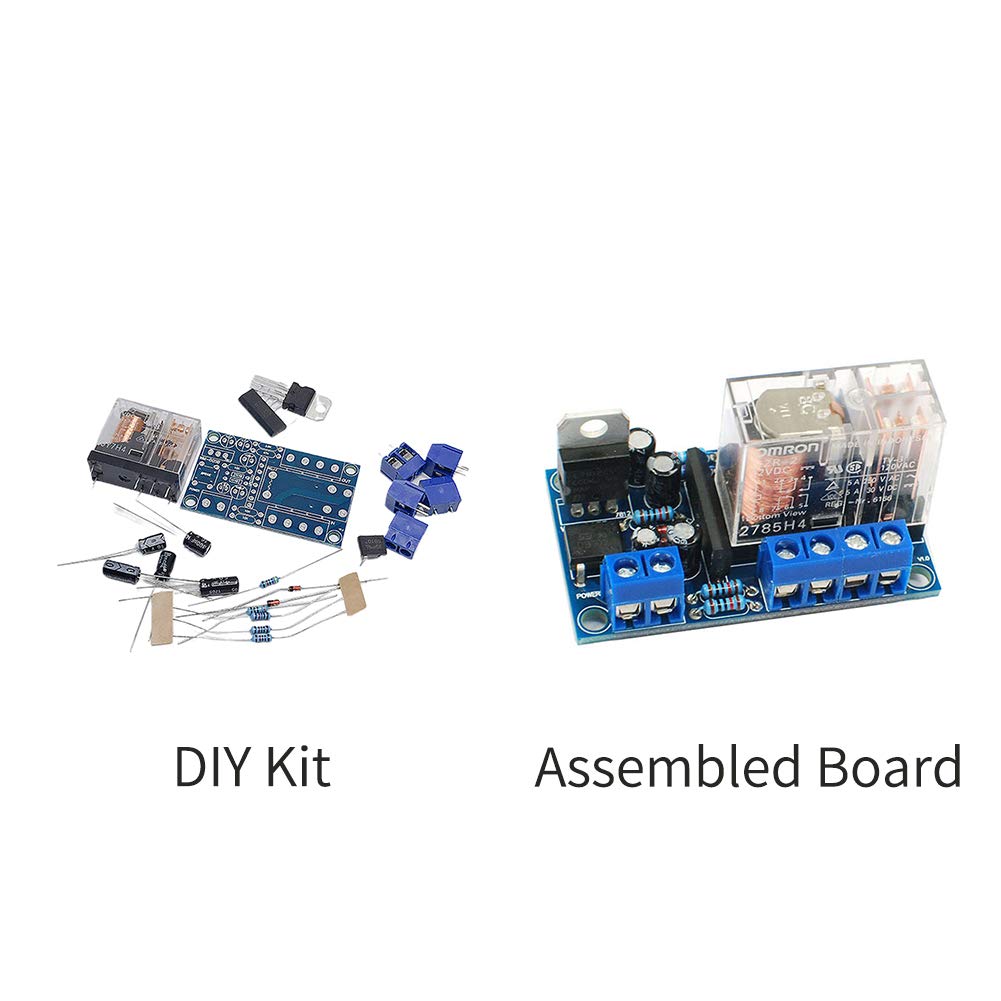

Types: DIY Kit, Assembled Board

Size: (Approx) 3.1X5.25CM



Package Included:

1 Set x Speaker Protection Board



Note:

1. Please allow 0.5-2 cm differences due to manual measurement.

2. Please use independent winding protection circuit as power supply, so it can form a closed loop power,

otherwise if speaker ground and signal ground mixed together, It will be easy to produce interference and hum.
