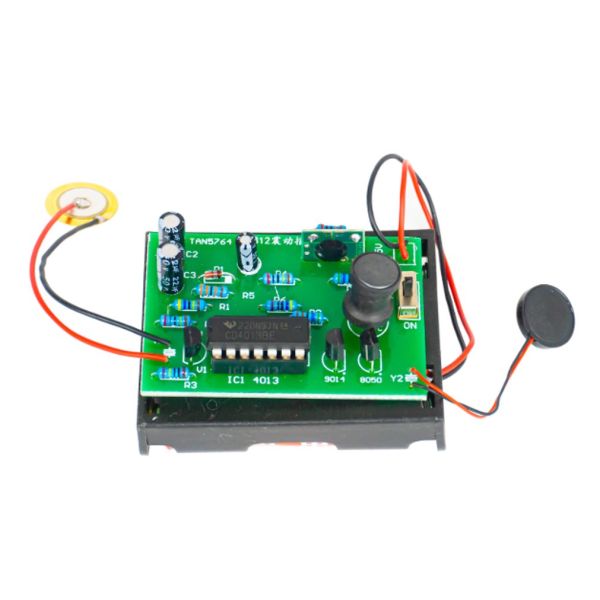

Monday Kids Vibration Alarm Kit - DIY Electronic Skills Training Soldering Circuit Board TJ-56-683 Student Experiment Kit Complete Set of Electronic Components

This product is an 1812 Vibration Alarm Kit specifically designed for electronic skills training and DIY soldering projects. The kit includes all necessary electronic components and circuit board. Users can assemble and solder to create a complete vibration alarm. It is suitable for students for electronic skills training as well as for electronic enthusiasts for DIY projects.

Product Parameters:

Power Supply Voltage: DC 4.5V
Board Size: 53 x 37mm
Model: TJ-56-683
Kit Contents:

Circuit Board: 1 piece
Electronic Components: Various (including resistors, capacitors, diodes, transistors, vibration sensor, etc.)
Soldering Tools: Various (solder wire, soldering iron, etc.)
Product Principle: The circuit includes V1 and V2, which are piezoelectric ceramics. When they are subjected to vibration, they generate an electric current. Conversely, if an AC signal is applied, the piezoelectric plates will vibrate at the same frequency. The speaker, which is a black resonant cavity, is used to amplify the sound. IC2 generates the alarm audio signal.

Piezoelectric Ceramics: V1 and V2 are piezoelectric ceramics. When they experience vibration, they produce an electrical signal, which is amplified by V1 and provided to U1 as a clock signal. When U1 pin 11 receives a clock signal, Q2 outputs a high level, driving IC2 to emit an alarm signal. C1, C2, and R4 form a delay circuit, controlling the alarm to stop after a certain period.
Alarm Signal: IC2 generates an alarm audio signal, driving the speaker to sound and achieve the alarm function.
Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished vibration alarm can be used for practical applications such as vibration detection and alarm prompts.

Combination of Education and Entertainment: Through hands-on creation, students can learn electronic knowledge in practice, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and comprehensible.
Multi-Functional Application: The finished vibration alarm can be used in various scenarios such as home security, industrial detection, etc.

Usage Instructions:

Preparation: Get the soldering tools (soldering iron, solder wire, etc.) and power supply ready.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 4.5V DC power supply.
Test Function: Use the vibration sensor to test the alarm's functionality to ensure it works properly.
Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.

Due to the regulation of the airline company, the batteries are not included
