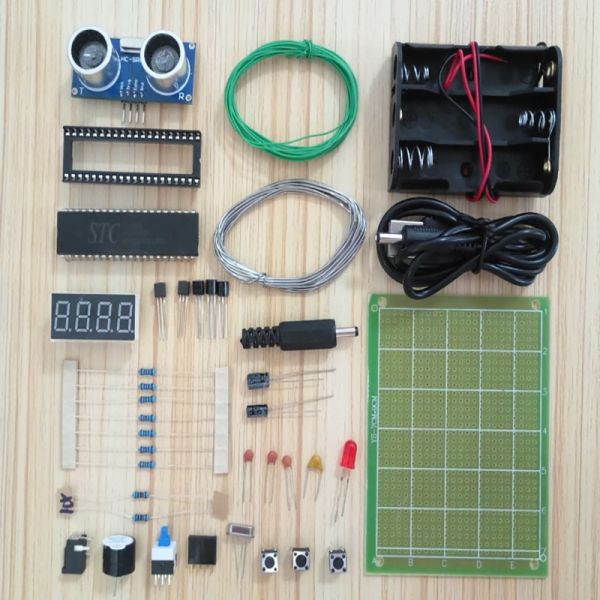

Monday Kids Ultrasonic Range Finder Based on 51 Single-chip Computer Graduation Design Universal Board Electronic Kit

Be the first to review this product

$7.80

Availability: In stock

SKU

RY-ES-320

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
is_customized: Yes
Type: Sine /Triangle Wave Square Wave

Description:

Note: This kit is a universal board, you need to solder your own wiring. The kits don't included batteries, you need to buy your own AAA batteries.

Supply voltage: DC 4.5-5V

Universal board size: 7*9cm

Function introduction:

Use the ultrasonic module to measure the distance of the obstacle in front of the surface, send it to the MCU and then use the digital tube to display the actual distance measured. A set of alarm distances can be set. When the measured actual distance is less than the alarm distance, the buzzer sounds and the light is on.

Hardware composition:

MCU + minimum system + digital tube display module + HC-SR04 ultrasonic ranging module + sound and light alarm module + button module

Features:

1. This design uses STC89C52RC microcontroller as the main controller;

2. The alarm distance can be set. When the measured distance is less than the set distance, the sound and light alarm will be given.

3. Measurement range: 2cm - 4.5m, accuracy 1cm.

4. This design can be used as a parking sensor for automobiles.

The purchase of parts from the self-welding friends noticed that the universal board kit does not solder the components like the PCB board kit. This requires you to plan the placement of the components and the wiring, which is very capable of exercising the welding ability. The basis of welding (read the schematic), such as the parents who are not sure about themselves, please consider.

Package include:

1 * Ultrasonic Range Finder Kit (batteries are not included)
