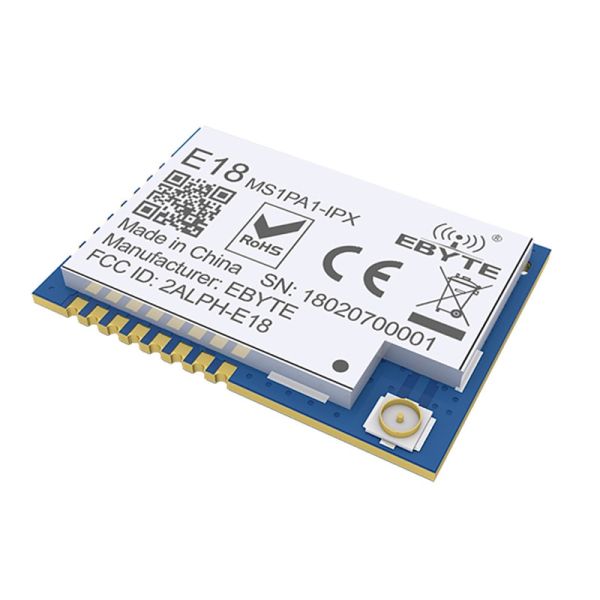

Monday Kids TI solution CC2530F256+PA (CC2592) Wireless Module 2.4G Zigbee Development Board IPEX/IPX E18-MS1PA1-IPX
$7.37
Availability:
In stock
SKU
RY-ES-358
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Operating Temperature: -40 to 90 Celsius
- Model Number: E18-MS1PA1-IPX 2.4G wireless module
- Condition: New
- is_customized: Yes
- Type: Voltage Regulator
- Dissipation Power: 100mW
- Application: Smart home,RFID,etc.
Description:
[IC] : CC2530
[Frequency] : 2.4~2.48GHz
[Power] : 100mW
[Distance] : 1.0km
[Interface] :SoC

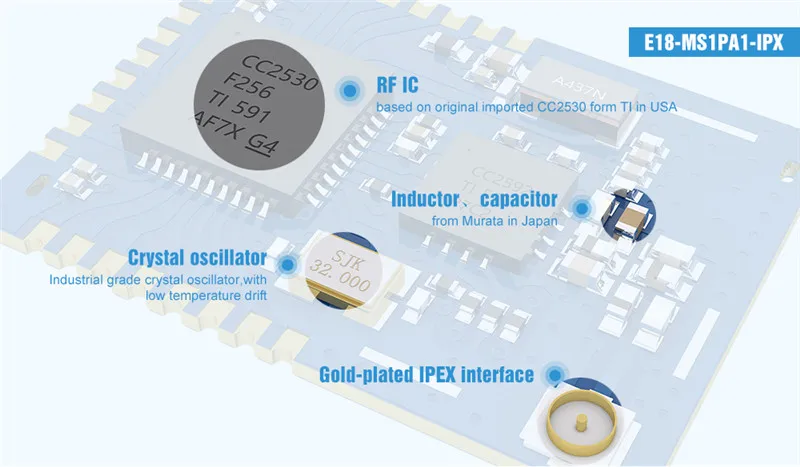

[Introduction] : E18-MS1PA1-IPX is based on original imported RF chip CC2530 form TI in America. The IC chip is integrated with 8051 microcontroller and wireless transceiver, which is applicable to Zigbee design and 2.4GHz IEEE 802.15.4 protocol.and equipped with power amplifier chip CC2592,the transmitting distance is much longer than before.
Performance parameter:

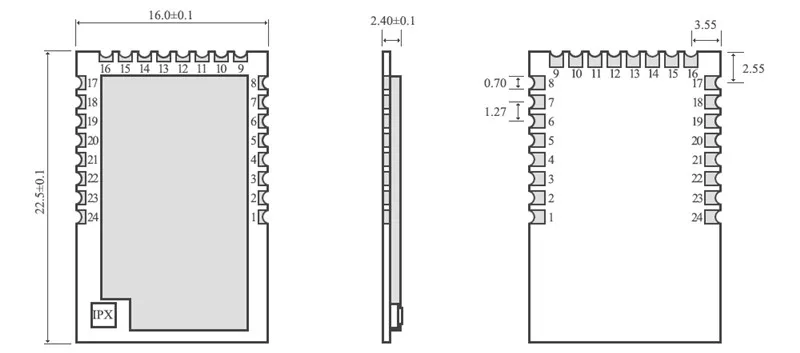

Pin definition:
Widely used in various occasions:
N9030A spectrum analyzer view:
Package Including:
1 * CC2530F256+PA (CC2592) Wireless Module 2.4G
- Unit Type: piece
- Package Weight: 0.025kg (0.06lb.)
- Package Size: 2cm x 2cm x 1cm (0.79in x 0.79in x 0.39in)
