Monday Kids STM32F4DISCOVERY STM32F407G-DISC1 With ST-LINK/V2

Be the first to review this product

$35.49

Availability: In stock

SKU

RY-ES-324

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
is_customized: Yes
Type: Voltage Regulator
Condition: New

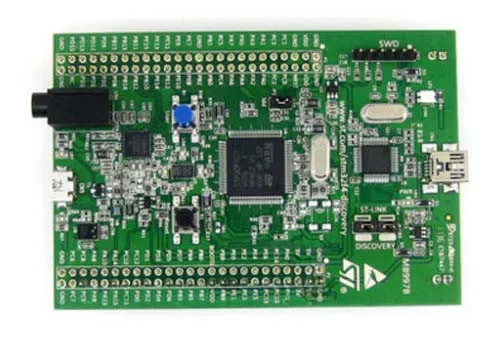

STM32F4DISCOVERY STM32F407G-DISC1 With ST-LINK/V2

Description:

STM32F4DISCOVERY is a high performance Cortex-M4 series designed for STM32F4 development board.
The development board based on the STM32F407VGT6 design, the development board also integrates the ST-LINK/V2 simulation download (but only provides the SWD interface), exempt from your other procurement simulator or download the trouble.To avoid the trouble of your other purchasing simulator or download. Added accelerometer LIS302DL, digital microphone MP45DT02, speaker driver and a USB micro-AB interface.

Characteristic:
STM32F407VGT6 micro controller
FLASH 1024KB, 192 RAM KB
100 pin, LQFP package
Development board integrated ST-Link/V2 simulation debugger (but only to provide external SWD interface)

Indicator light:
LD1:USB communication indicator light
LD2:3.3V power indicator light
LD3:application indicator
LD4:application indicator
LD5: application indicator
LD6: application indicator

LD7:USB OTG LED(VBus)
LD8:USB OTG LED(over-current)

Key:
Reset button
Application button

Power Supply:
By USB to get electricity 5V
External power supply 5V and 3V

USB OTG FS
micro-AB

sensor:

LIS302DL (ST MEMS motion sensor, 3-axis digital output accelerometer)
MP45DT02 (ST MEMS audio sensor, omni-directional digital microphone)

Audio driver:

CS43L22 (audio DAC with integrated class D speaker driver)

Rules of the lead out of all the IO port, easy to do the relevant experiment

Package Included:

1 * STM32F407 development board
