Monday Kids NDIR CO2 SENSOR MH-Z14A Infrared Carbon Dioxide Sensor Module,serial port, PWM, analog output with cable MH-Z14
$20.97
Availability:
In stock
SKU
RY-ES-84
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Magnetic Sensor
- Material: Polymer
- Theory: Ultrasonic Sensor
- Output: Analog Sensor
- Model Number: MH-Z14A infrared carbon dioxide sensor
- is_customized: Yes
- Usage: Magnetic Sensor
NDIR CO2 SENSOR MH-Z14A infrared carbon dioxide sensor module,serial port, PWM, analog output with cable MH-Z14
1, the working voltage: DC4.5-5.5V
2, Working current: Mean <60mA; peak 150mA.
3, the detection range: 0-5000ppm
4, the detection accuracy: ± (50ppm + 3% reading value)
5. Warm-up time: 3min
6, the output signal:
1) analog output voltage: (D1 port 0V-2.5V) (D2 port 0.4-2V) linear output.
2) serial port (UART) (TTL level)
3) PWM
7, response time: T90 <120s
8, the working temperature: 0 ~ 50 oC
9, Humidity: 0 ~ 95% RH
10, life: 5 years
11, size: 57mm × 35mm × 15mm

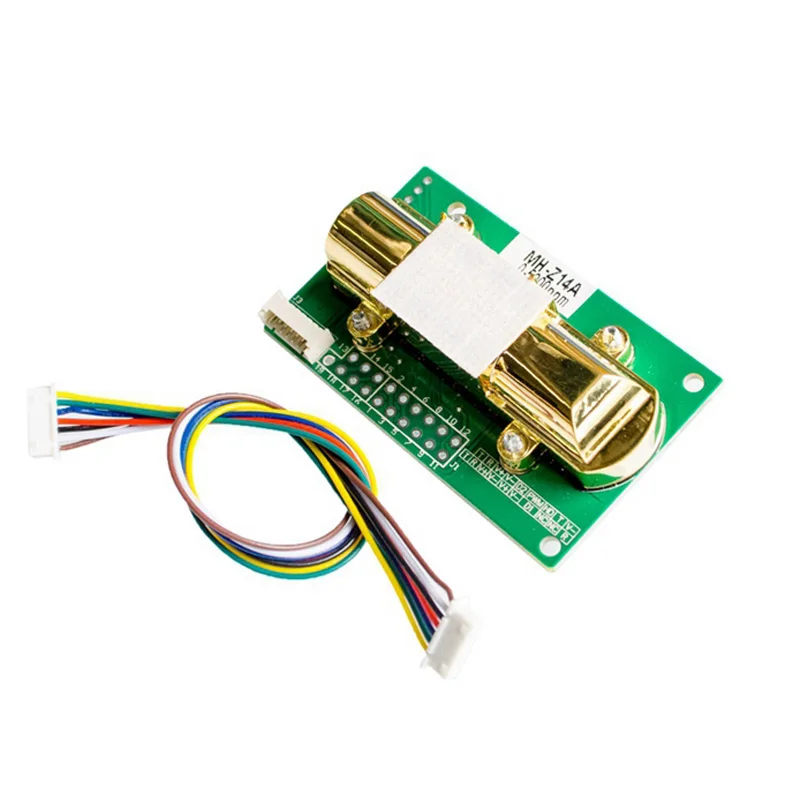

1 * MH-Z14A Infrared Carbon Dioxide Sensor Module with Cable
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
