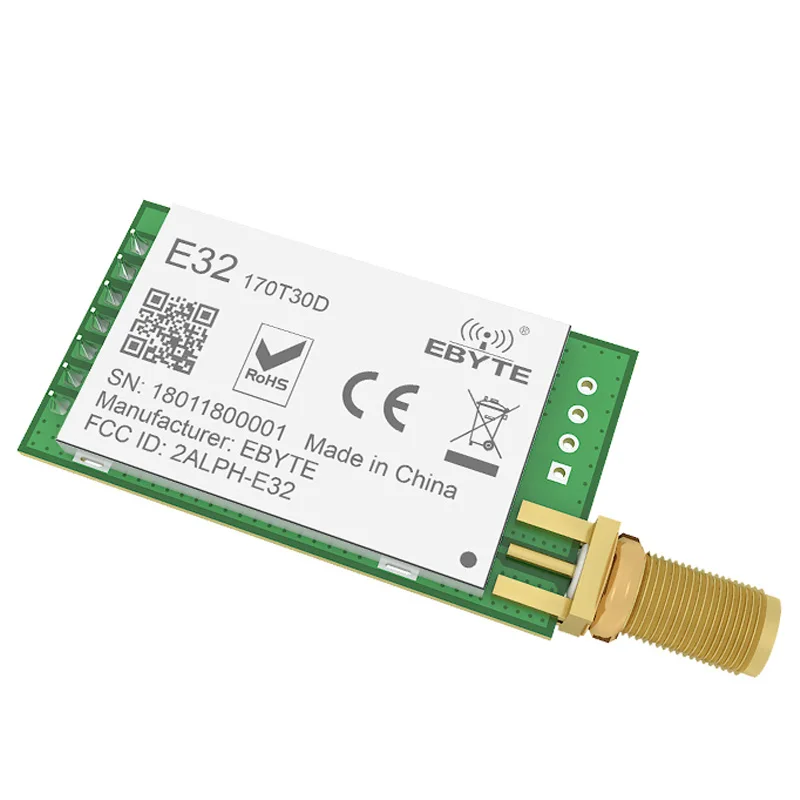

Monday Kids Long Range LoRa SX1278 SX1276 170MHz rf Module E32-170T30D 1W 170 MHz Wireless Transceiver iot Transmitter Receiver
$24.63
Availability:
In stock
SKU
RY-ES-105
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
- Operating Temperature: -40 to 90 Celsius
- Dissipation Power: 1W
- Model Number: SX1278/SX1276 170MHz wireless module
- Application: Intelligent meter reading, industrial remote control,etc.
Features:
1. Multi-frequency communication: anti-interference, cross obstacles, and ensure communication stability
2. Transparent transmission (peer-to-peer): The transmission data is transparent, and the module has its own address; the modules with the same address and the same channel are received and used in pairs (A and B addresses and channels are the same)
3. Transparent transmission (broadcast):
1. Modules with the same address, the same channel, and the same airspeed. Any one of them can be sent, and the rest can be received;
2. Each module can be either a sender or a receiver;
3. The data sent is completely transparent, and it is received.
4. Fixed-point transmission: The module supports the address function. The host can send data to the module of any address and any channel to achieve the application scheme of free networking and relay.
5. Broadcast monitoring: The address OxFFFF can monitor the data transmission of all modules on the same channel, and the transmitted data can be received by the module of any address on the same channel.
6. Support low power consumption: Support WOR (air wake-up) function, greatly reducing power consumption and extending battery life.
Scope of application:
Package Including:
1 * 1W LoRa SX1278 170MHz
- Unit Type: piece
- Package Weight: 0.025kg (0.06lb.)
- Package Size: 6cm x 4cm x 3cm (2.36in x 1.57in x 1.18in)
