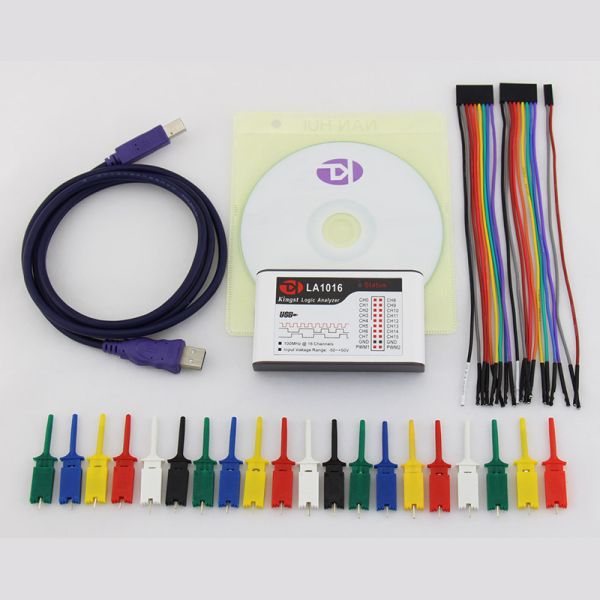

Monday Kids Kingst LA1016 USB Logic Analyzer 16 Channels 100M Sampling Rate 10G Depth MCU ARM FPGA Debug Tool English Software
$87.08
Availability:
In stock
SKU
RY-ES-344
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Application: Computer
- Model Number: LA1016 Logic Analyzer
- is_customized: Yes
Description:
LA1016 i s a high-performance logic analyzer with 16 channels and 100M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
LA1016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.
Features:
Portable and lightweight
100M sampling rate @ full channels
Large sampling depth and support compression
The built-in PWM generator
Compatible USB2.0/3.0 interface

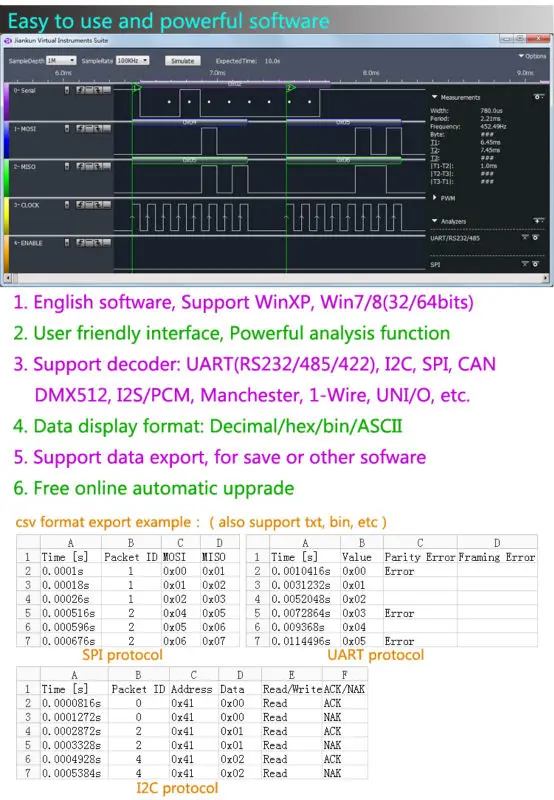

Powerful software and easy to use
Support online upgrade automatically

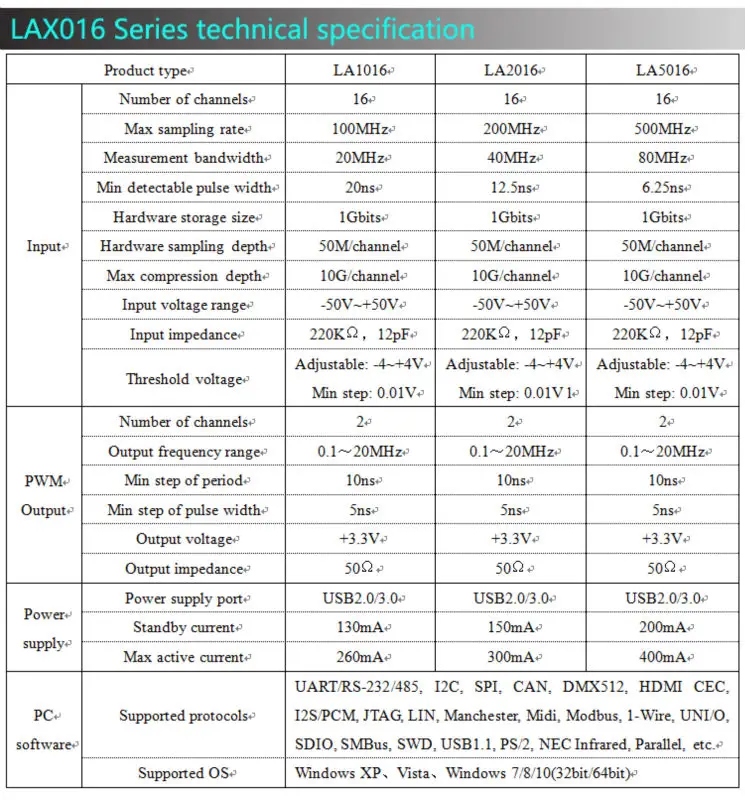

Specification:
·Input channels number: 16
·Max sampling rate: 100M
·Measurement bandwidth: 20M
·Min pulse width can be captured: 20ns
·Hardware memory size: 1Gbits
·Hardware sampling depth: 50M/channel
·Max compressed depth: 10G/channel
·Input voltage range: -50V ~ +50V
·Input impedance: 220KΩ, 12pF
· Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
·PWM channels number: 2
·PWM frequency range: 0.1 ~ 20MHz
·PWM frequency adjust step: 10ns
·PWM pulse width adjust step: 5ns
·PWM output voltage: +3.3V
·PWM output impedance: 50Ω
·Standby current: 130mA
·Max operating current: 260mA
·Dimensions: 95mm * 55mm * 23mm
·Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)
Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

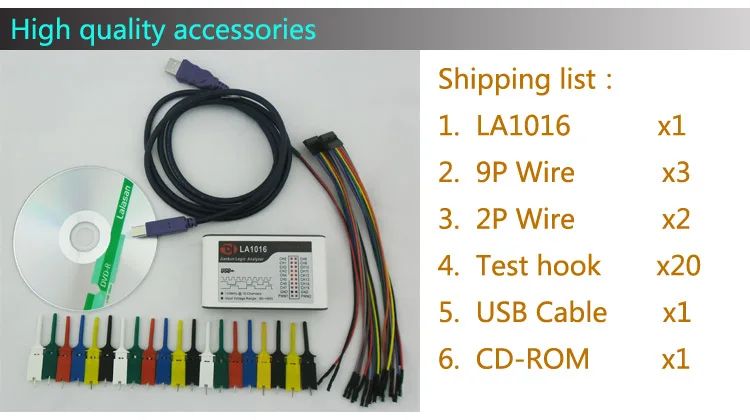

Package include:
1 * LA1016 USB Logic Analyzer
- Unit Type: piece
- Package Weight: 0.4kg (0.88lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
