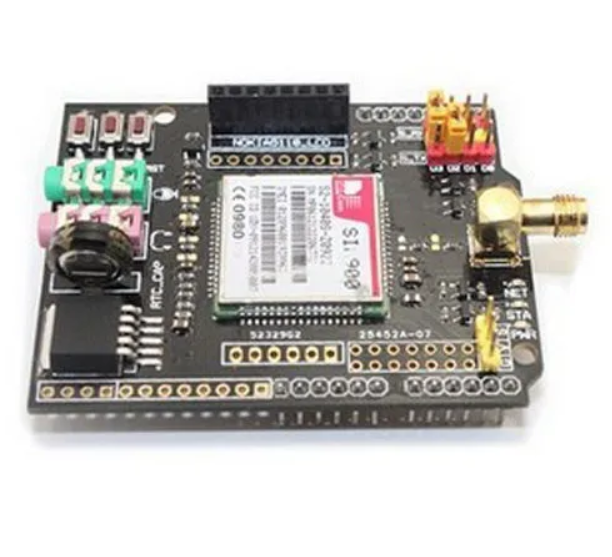

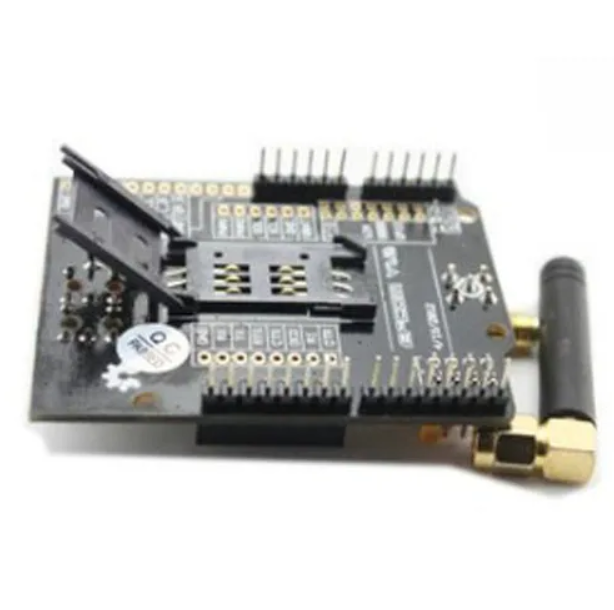

Monday Kids GSM/GPRS Shield Expansion Board GSM Module SIM900 Wireless Module For Arduino

Be the first to review this product

$38.55

Availability: In stock

SKU

RY-ES-216

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
Model Number: GSM/GPRS Shield
is_customized: Yes
Condition: New
Application: Remote meter reading

Description:

GPRS Shield- expansion board Is a serial communication GSM/GPRS wireless module.. The purpose is to let For Arduino enthusiasts to learn GSM/GPRS mobile phone develop quickly, and can apply to wireless development project, and also suitable for the remote control development, such as wireless meter reading system, intelligent home appliances, remote control.

GPRS Shield is compatible with all standard for Arduino development board,Using the 4 frequency GPRS/GSM module, and supports 4 types of band 850/900/1800/1900MHz, can send SMS messages, telephone, fax and so on all GPRS mobile phone functions. let you very quickly understand the development process of mobile phone and wireless development.

GPRS Shield based on the SIM900 this patch type GSM/GPRS integrated single chip, using the ARM926EJ-S kernel, build enthusiasts Create lovers learning to use least integrated development environment.

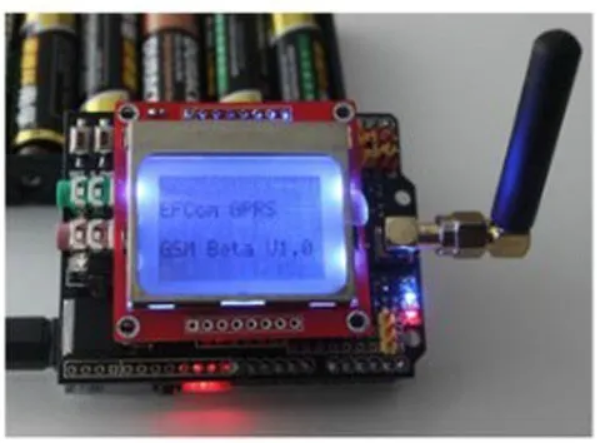

GPRS Shield can through the UART serial port using the configuration setting AT instruction, only needs to insert extend board into the for Aduino board, use AT commands to control the GPRS Shield , call, send text messages...... In addition, GPRS Shield support LCD5110 display (the default hair Bluetooth backlight, is inserted in the EFCom, below effect diagram) and serial port Keypad keyboard input.

Board set the hardware boot Button , software boot (D10) , hardware RestButton, software Rest (D9) allows and For Arduino spirit and use, meet all kinds of both hard and soft boot or boot is hard restart or soft restart DIY. Through the two jump D0-D3, you can choose GPRS Shield and For Arduino communication mode is: software serial port (jump to take to D2, D3) or hardware serial port (D0, D1).

Three kinds of work mode of GPRS Shield:

Short Message Service model
Audio music mode
GPRS mode

Function characteristics:

Fully compatible with for Arduino UNO and Mega2560 development board series
Serial port communication, freedom choose hardware serial port (D0/D1) or software serial port (D2/D3) and the motherboard communication mode
SIM900, all IO all set aside, not only the UART port, DEBUG port, GPIO port and KEY all, PANEL interface
Onboard super capacitor, ensure that RTC work
At the same time supporting the hardware switch machine, supporting the hardware reset
4 frequency bandwidth, 850/ 900/ 1800/ 1900 MHz

Product specifications:

GPRS Shield power supply 5V
Size: 68.33x53.09mm (like the for Arduino UNO size)
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
4 - Class (2 W @850/ 900 MHz)
Class 1 (1 W @ 1800/1900MHz)
Dimensions: 24*24*3mm
Weight: 3.4g
Control via AT commands (GSM 7.07, 7.05 and
SIMCOM enhanced AT Commands)
SIM application toolkit
Supply voltage range: 4.8V 3.1...
Low power consumption: 1.5mA (sleep mode)
Operation temperature: -40 C to +85 ° C °

Note:

Plug in Arduino board, must also connects our 9V DC fire cow. The reason is that GPRS Shield starting current and working up to the peak current to the maximum 2A, but the USB port is unable to provide such a large current, so it must be the external power supply equipment.
Ensure that your SIM card is not locked
GPRS Shield communication baud rate is the best 19200 BPS 8-N-1 (GPRS Shield default automatically match the baud rate)

Package Included:
1 * GPRS Shield -EFCom
1 * 4 Frequency Antenna
