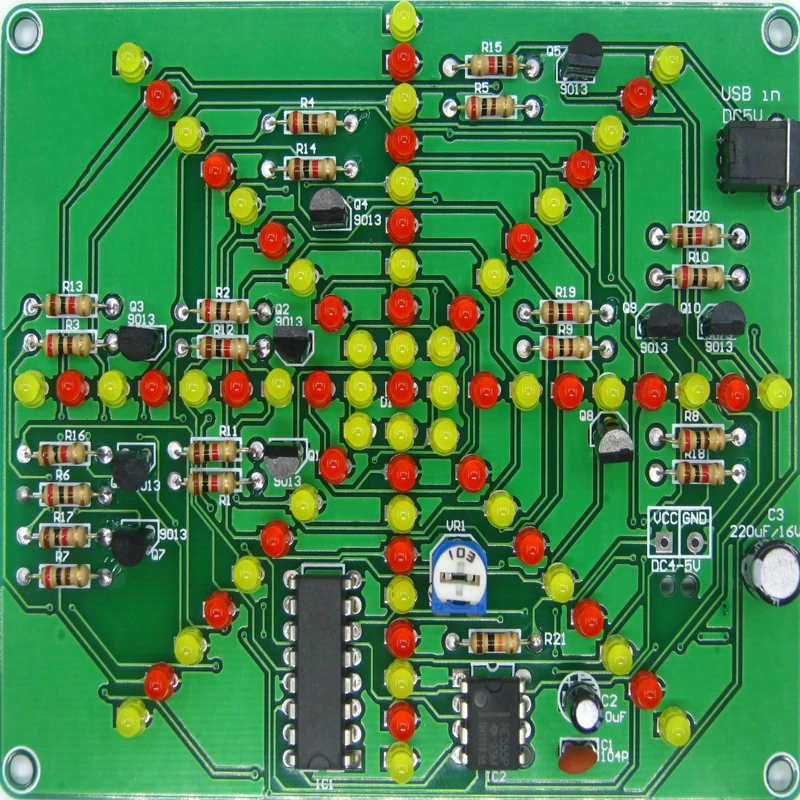

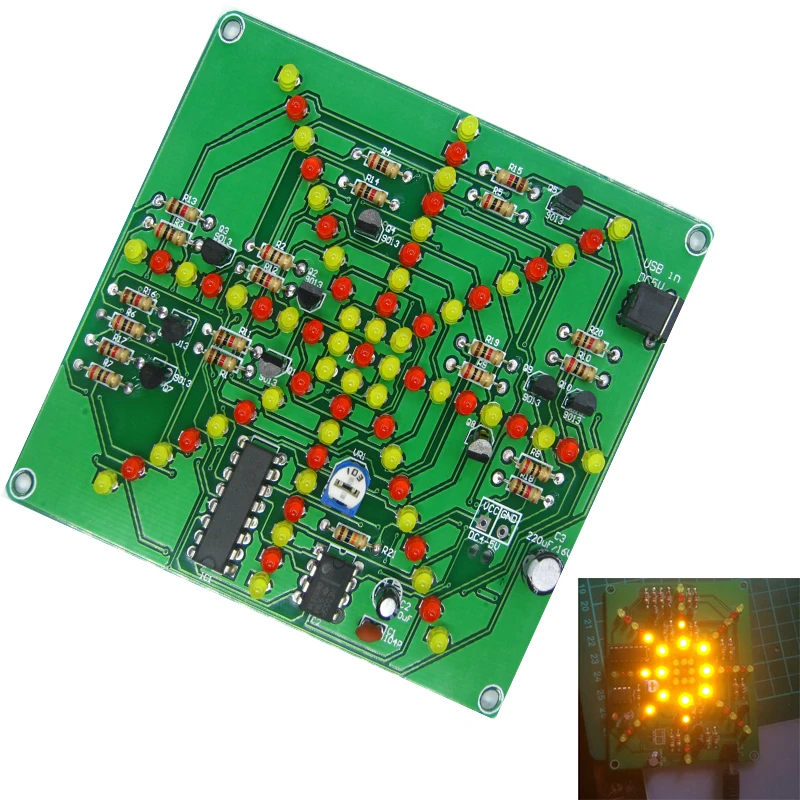

Monday Kids DIY Kit Flash Light Kits 73 LEDs Red Yellow Dual-Color Flashing Soldering Practice Board PCB Electronic Circuit Training Suite
$3.79
Availability:
In stock
SKU
EK124
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Supply Voltage: none
- Model Number: Flash Light Kit
- Dissipation Power: none
- is_customized: Yes
- Operating Temperature: -30~85 Celsuis
- Application: Falsh Light Kit
Installation Steps:
1.Install RES: 200 ohm resistor install on R2-R10 pad, 1K ohm resistor installed to R1, R2-R10 pad. 10K ohm resistor installed to R21 pad
2.Install a red LED to D1
3.Left to right, red, yellow, red, yellow in order to install LED. The LED's anode corresponds to the square pad
4.Red-yellow-red-yellow continues to install LED
5.Installation completes all LED
6.Install adjustable resistance cap, electrolytic capacitor and DC power socket
7.Install S9013 triode to Q1-Q10 position pads
8.Install integrated circuit. Be careful pin direction
9.Solder the battery box red line on the VCC. The black line is weldered to the GND. Check the direction of the PCB capacitor
|
- Unit Type: piece
- Package Weight: 0.09kg (0.20lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
