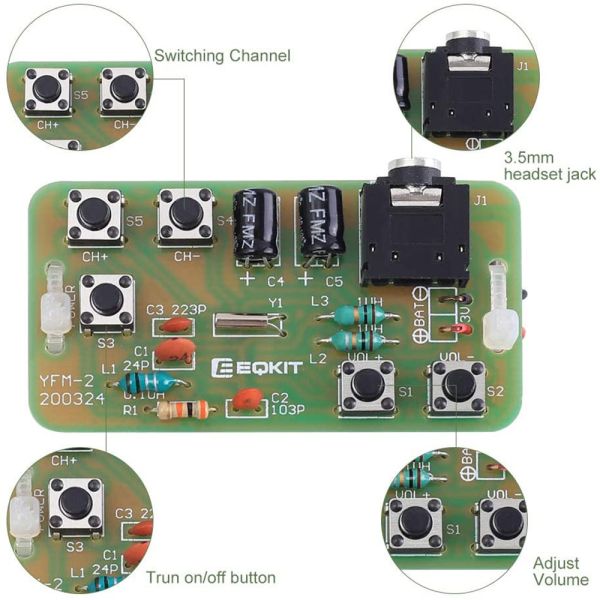

Monday Kids DIY Electronic Kit FM Stereo Radio Module 76-108MHz Wireless Transmitter Receiver Circuit PCB Board Soldering Practice Project
$1.19
Availability:
In stock
SKU
BK-DG-24
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Package: SOP
- is_customized: Yes
- Model Number: FM Radio Receiver DIY Kit
- Operating Temperature: -25~85 Celsius
- Supply Voltage: DC 3V
- Application: Electric Toy
- Condition: New
- Type: Logic ICs
- Brand Name: Monday Kids
- Feature 1: FM Radio Receiver DIY Kit
- Feature 2: DIY FM Transmitter Kit
- Feature 3: FM Receiver DIY Kit
FM Radio Receiver Kit
http://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/GY18041.pdf
1.Introduction:
The YFM-2 type radio circuit is very simple. The total number of components does not exceed 19. Although the number of components is not large, it includes two types of components: SMD and DIP which are suitable for novices and friends who want to practice soldering of SMD components.
2.Feature:
1>.Built-in digital automatic gain control (AGC) circuit
2>.Support the global frequency band 76-108Mhz
3>.DIY manual welding
4>.Simple and easy to operate
5>.Support radio memory function
3.Parameter:
1>.Item name: FM Stereo Radio Module DIY Kit
2>.Item Mode:YFM-2
3>.Work Voltage:DC 3V
4>.Work Current:19mA
5>.Work Frequency:76-108Mhz
6>.Output impedance:32ohm
7>.Work Temperature:-40~85
8>.Work Humidity:0%~95%RH
9>.Size(Installed):57*32*20mm
4.Application:
1>.Training welding skills
2>.Student school
3>.DIY production
4>.Project Design
5>.Electronic competition
6>.Graduation design
7>.Crafts collection
8>.Home decoration
9>.Souvenir collection
5.Installation Steps(Please be patient install!!!):
1>.Step 1: Install 1pcs SOP-16 RDA5807PF at U1.There is a dot on one corner of the IC and there is a rectangle pad on PCB where the Pin1 of IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
2>.Step 2: Install 1pcs 30K ohm Resistor at R1.
3>.Step 3: Install 1pcs 0.1uH Inductor at L1.
4>.Step 4: Install 2pcs 1uH Inductor at L2,L3.
5>.Step 5: Install 1pcs 32.768KHz Crystal Oscillator at Y1.
6>.Step 6: Install 1pcs 24pF Ceramic Capacitor at C1.
7>.Step 7: Install 1pcs 0.01pF(103) Ceramic Capacitor at C2.
8>.Step 8: Install 1pcs 0.022pF(223) Ceramic Capacitor at C3.
9>.Step 9: Install 5pcs 6*6*5mm Switch at S1-S5.
10>.Step 10: Install 1pcs 100uF 16V Electrolytic Capacitor at C4,C5. Please pay attention to the positive and negative poles. The shorter pin is the negative pole.
11>.Step 11: Install 1pcs 3.5mm Audio Jack at J1.
12>.Step 12: Connect battery box.Pay attention to positive and negative.
13>.Step 13: Use a cable tie to fasten the battery box.
14>.Step 8: Connect to power supply and enjoy the effect.
FM Transmitter Kit
Instruction Download link: http://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/12232.pdf
1.Introduction:
1.Model: RF-02FM
2.Operating Current: 5-15mA
3.Operating Voltage: DC 3-6V
4.Transmission Distance: 5-50m\
5.Transmission Frequency: 88-108MHz
6.Audio Input: -15dB (max)
7.PCB Size: 53*40mm
