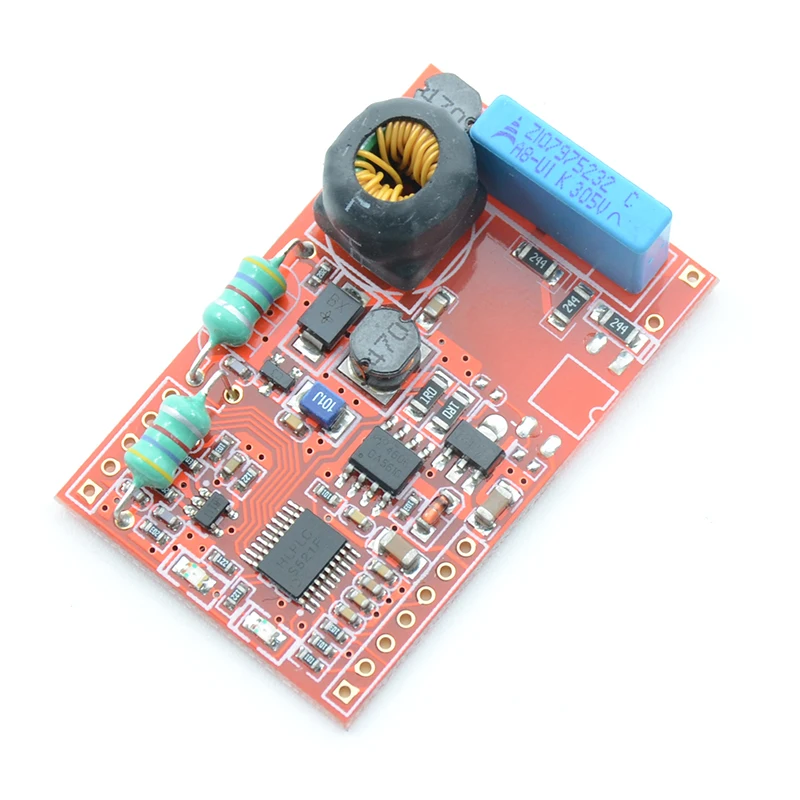

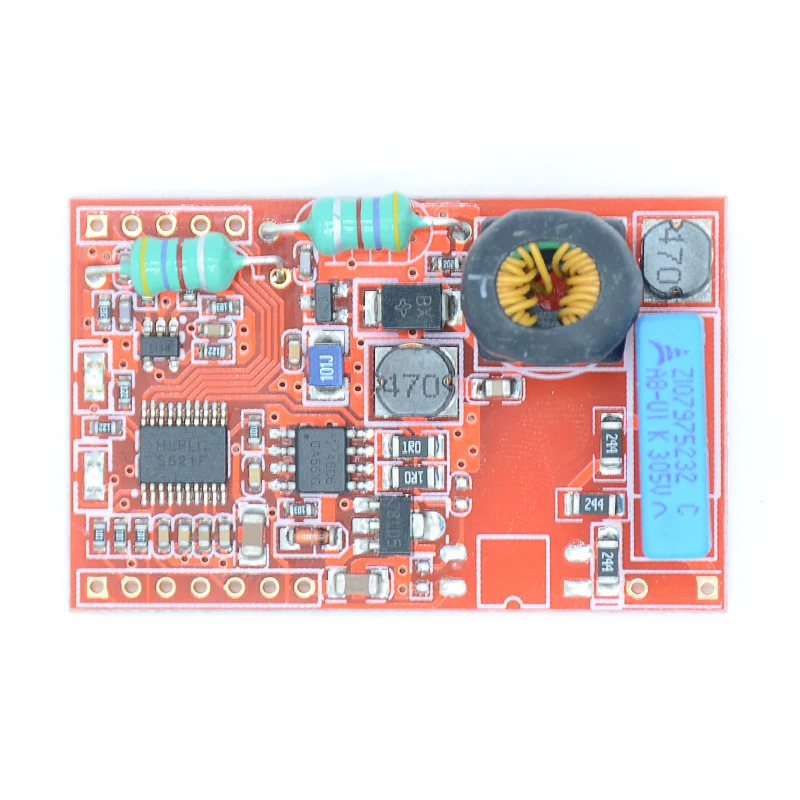

Monday Kids DC Power Line Carrier Module High Speed Carrier Module Carrier Communication Module

Characteristic:

• Module power supply: 5-20VDC

• The module output power supply: 5VDC 50mA

• The communication rate: 1200 2400 4800 9600 (default 9600) parity check, no parity optional

• Interface type: TTL level serial interface RXD , TXD

• Working environment: AC≤305V, DC≤700V.

• Communication distance: 1500m (Specific communication distance depends on the application environment)

• Each frame length: no limit

• Power line carrier frequency: 72kHz

• Modulation and demodulation mode: FSK

• Send mode: normal transmission mode / zero transmission mode

• Working temperature: -40 to 85 ℃

• Dimensions: 4.8 x 3.0cm x 1.5cm (L x W x H)

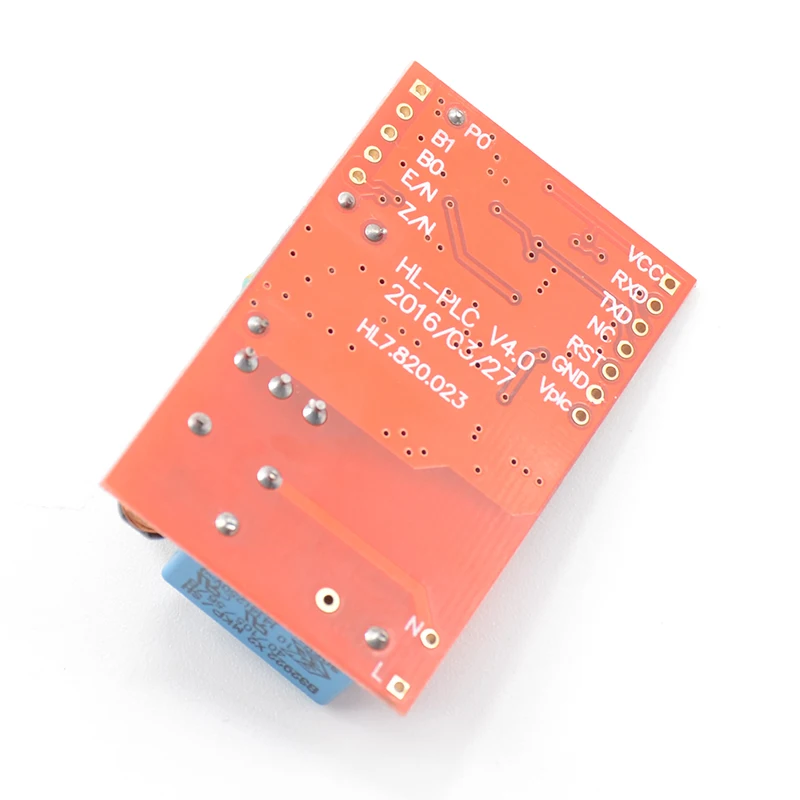

Application Note:

Vplc is carrier module working
power supply,can be connected to 5-12V DC (recommended 12V),Current >200mA, voltage terminal connected to large energy storage capacitor (>1000uF).According to the actual demand to choose the carrier to send Vplc voltage. Vcc for the module system working power output, output 5V maximum 50mA power supply, can be used for external system, the power supply for the internal 78L05 output, when use current can not exceed 50mA.

The main application:

Appliance controller, centralized meter reading system, security monitoring system, monitoring system for street lamps, industrial data transmission, broken cable monitoring system, intelligent home appliances control, parking management system, remote lighting control, fire and security systems, stage lighting and sound control etc.

Package Including:

1 * DC Carrier Communication Module

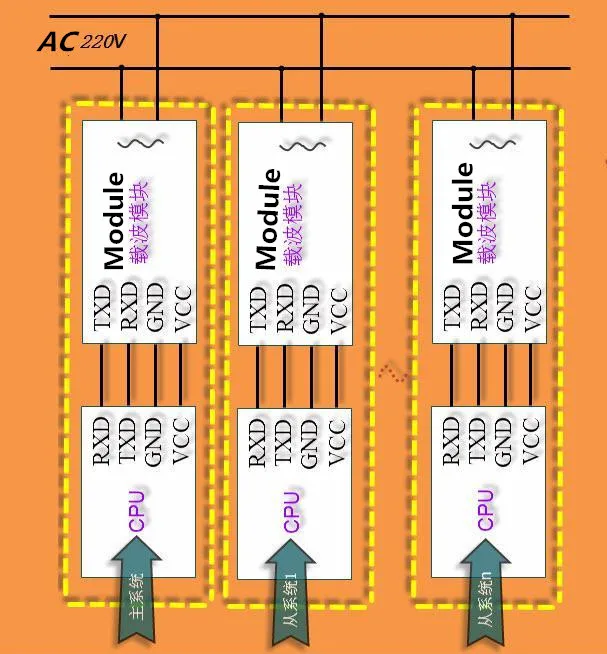

AC 220V application wiring diagram:

Ultra-low voltage AC and DC application wiring diagram：

Direct replacement of 232 or 485 wiring diagram：
