DC 8-32V to 9-46V Step up Module 150W High Power Boost Converter Module for Mobile Car Notebook Power Supply C7A2

DC-DC Step-up Module:

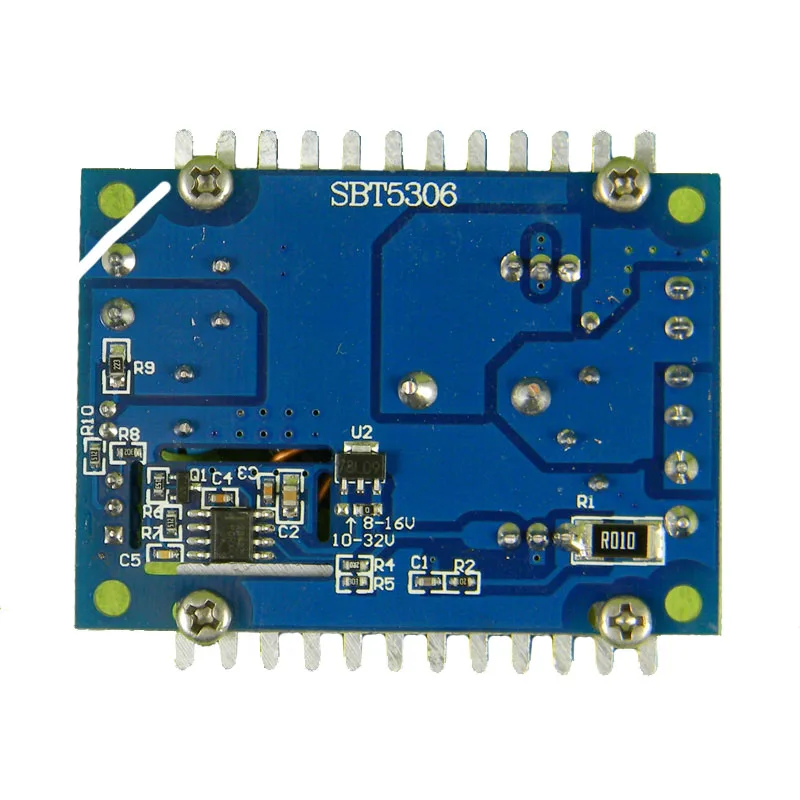

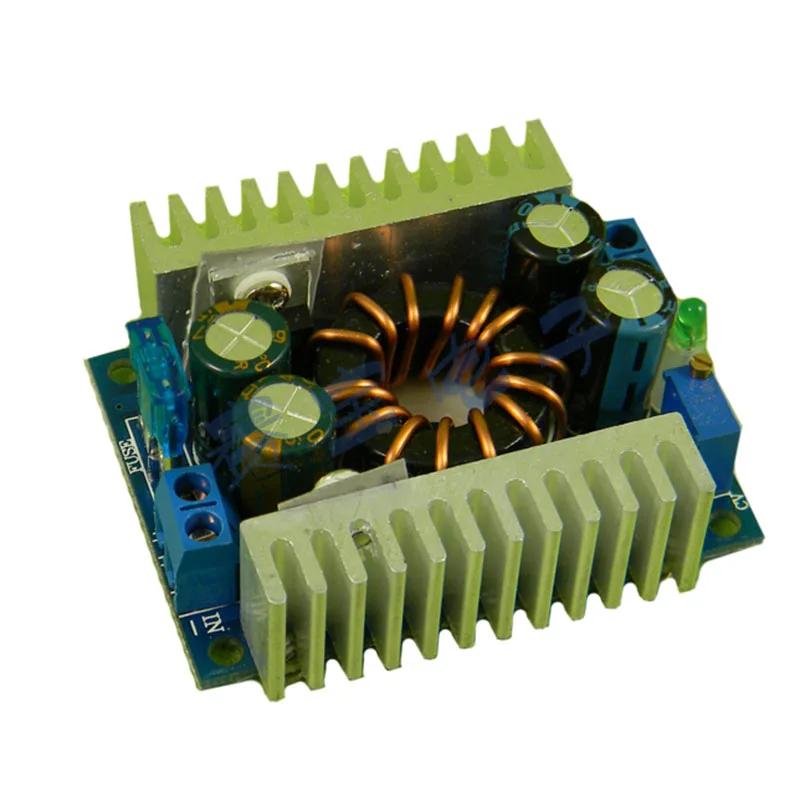

Ultra small volume, super dense aluminum radiator, lower module temperature, more stable. Input two 470uF/35V, output two 330uF/50V, 60V output for 220uF/63V switching power supply dedicated high-frequency low resistance capacitor, so that output ripple is lower, onboard LED work indicator light, work more intuitive. Unique PCB hollow design, to minimize the temperature due to the change of important parts of the parameters caused by the instability of the work. Onboard 4 M3 screw holes to facilitate your installation.

Product parameter:

• Module name: 150W boost module

• Module property: non isolated boost module (BOOST)

• Input voltage: 8-16V input, 10-32V input

• Input current: 16A (MAX) over 8A, please strengthen the heat dissipation

• Quiescent operating current: 15mA (12V liters 20V), the output voltage is more Gao Jing, so the current will increase

• Output voltage: 9-46V, adjustable continuously

• Output current: 8A, MAX over 4A, please strengthen the heat dissipation (with the input and output pressure difference, the greater the pressure difference, the smaller the output current)

• Output power: natural heat dissipation, 90W, enhanced heat dissipation, 150W

• Operating temperature: -40~+85 ℃(ambient temperature is too high, please strengthen the heat dissipation)

• Operating frequency: 150KHz

• Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, pressure difference)

• Short circuit protection: Yes (enter 15A fuse)

• Input reverse connection protection: No, (please enter the diode in the input string)

• Installation: 4 3mm screws

• Connection mode: the terminal is free of welding output, and the shell is welded. (V-IN for input, V-OUT for output)

• Module size: 60*50*20mm

• Weight: 80g

1*DC-DC Step-up Module Boost Converter
