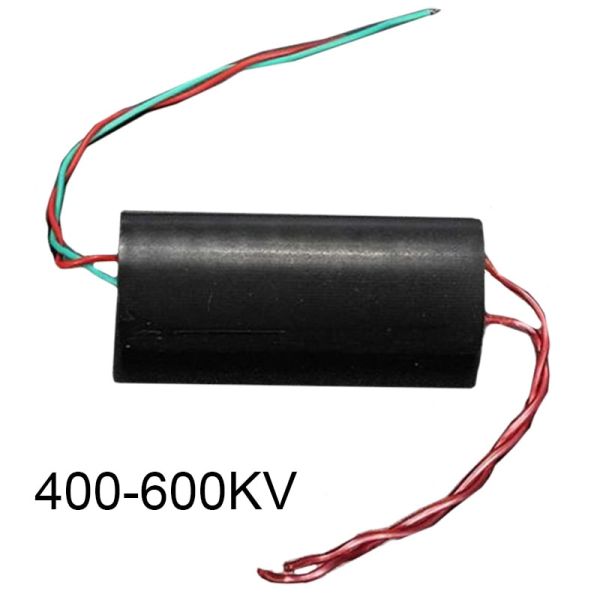

Monday Kids DC 3.7V-6V To 400KV-600KV High Voltage Generator Super Arc Inverter Transformer Pulse Module Step up Boost Module

Be the first to review this product

$2.96

Availability: In stock

SKU

RY-ES-270

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
Model Number: High Voltage Generator
Type: Voltage Regulator
is_customized: Yes
Supply Voltage: 3.6-6V

Description:

Voltage: input DC3.6-6V, output DC400kV--600KV

Line length: more than 100mm input, output more than 90mm

Structure: high and low voltage integrated type

Usage: used in 105 high voltage generator, high pressure igniter, teaching experiment and so on

The red and green line is connected to the power supply side of red green anode cathode

One side of the two red lines is a spark

Non continuous work

Characteristic:

The high voltage module is made of the principle of the Tesla coil, and outputs high voltage pulse high voltage current. The utility model has the advantages of small size, high efficiency and simple peripheral circuit (only the switch and the battery can be switched on), and the discharge intensity is violent.

Input voltage: DC 3V-7.2V

Input current: 2A-5A

High voltage type: pulse current type

Output voltage: about 200 thousand volts (please pay attention to safety when using)

High voltage polar discharge distance: 10mm-20mm

Output high voltage wire length: approx. 100mm

Input power line length: About 100mm (red line is positive)

Size: 24*65mm (maximum diameter 24MM, minimum diameter 22MM, with flat side)

About power supply: 3.7V lithium batteries can use one or two series, such as 18650 battery, mobile phone battery idle (to remove the protection plate, the proposed capacity is more than 2000mAh) or NiCd / NiMH batteries, lead-acid batteries such as 4V or 6V.

This module is finished module function of science small system in high voltage inverter/booster transformer, the input voltage of DC3V-7.2V can be obtained after about 200 thousand volts DC voltage at the output end (arc about 1-2 cm), can be used as a high school science experiment, electronic instrument, negative ion generating high voltage source device, making use of science.

Note:

High voltage module shall avoid high voltage no-load switching on. The proper distance between the ends of the high voltage line must be adjusted before power transmission, and the distance between the tension line and the arc of the high-voltage line is directly proportional to the voltage and capacity of the battery used. When testing the arc distance, the short distance test is carried out, and the power is not allowed to exceed the longest arc pulling distance, and the module is easy to be damaged because the high voltage energy can not be released.

As the power is large, the internal heat dissipation is not easy, and the power on time should be controlled within one minute.

The way to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage during arcing. If 6V or so, you can output the maximum power.

The small capacity of the two series lithium 7.2V, arc voltage measurement in the state has fallen to about 4V, the smaller the voltage of the capacity is low. It is recommended to use more than 2000mA of lithium, the best conditions with more than 4000mA battery.

Package Included:

1 * DC 3.7V-6V To 400KV-600KV High voltage generator
