Monday Kids CC2530PA Zigbee Wireless Module PA chip Module Far Distance Small Harmonic WM013
$6.80
Availability:
In stock
SKU
RY-ES-393
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
- Model Number: CC2530PA module

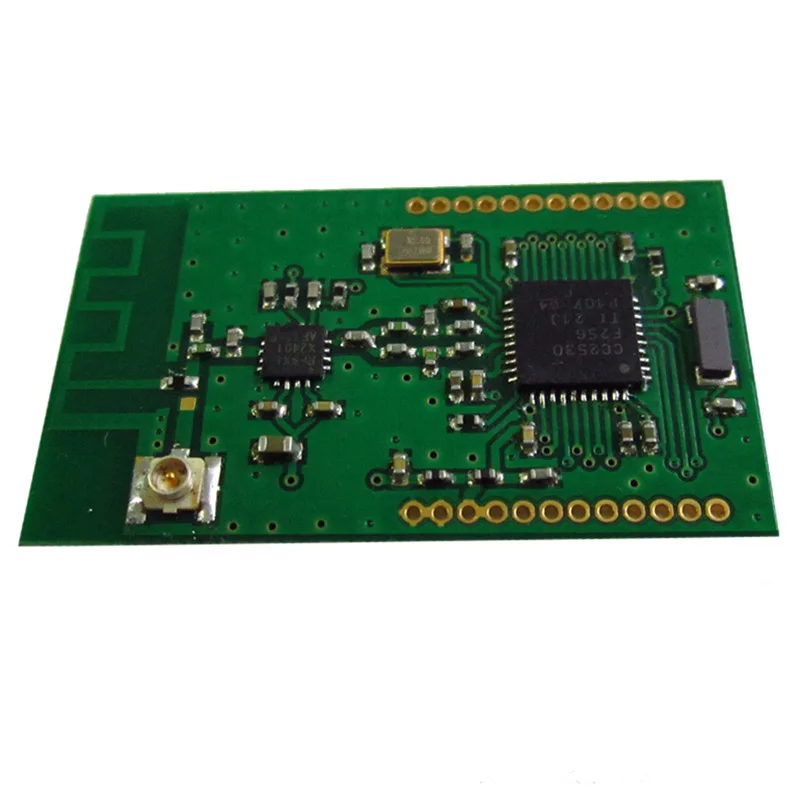

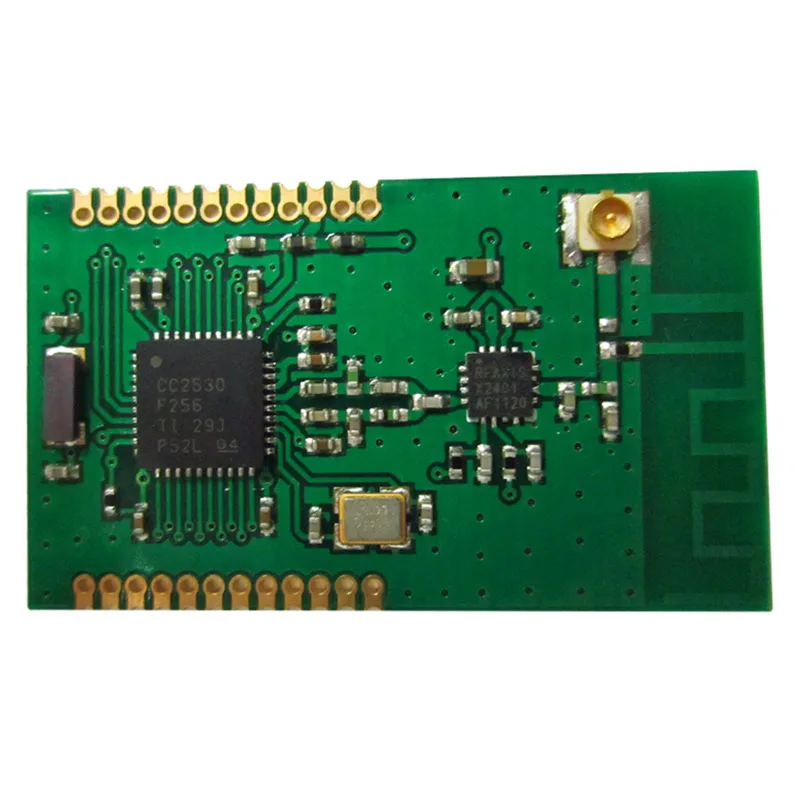

CC2530PA Zigbee Wireless Module PA chip Module Far Distance Small Harmonic
Characteristic:
-
Low power consumption can be easily controlled to low-power mode;
-
Small size, easy to embed into the product,.
-
Open band,the carrier frequency is 2.4GHz.
-
Air transmission rate up to 250kbps.
-
Visual transmission distance is 800 meters, can meet the needs of many customers such as smart home / industrial control;
-
Crystal components are made of high quality brand, all machines patch, high reliability.
-
Provide PCB antenna, IPEX antenna connecting block and other antenna connection mode.
-
This module is the two development module, the module itself has no software, but provides transparent transmission reference code.
Technical specification:
-
Parameters: CC2530+RFX2401 module
-
Sensitivity: -106dBm
-
Output power: >+20dBm
-
Input gain: 12dB
-
Noise: 3dB
-
Emission current: <130mA
-
Receive current: 37.5mA
-
Sleep current: 0.7uA
-
Working voltage: 3.3V
-
Transmission distance: 800m visual distance
-
Data rate: 250Kbps
-
Channel number: 16
-
Antenna: PCB or IPEX, through the IPEX lead SMA antenna
-
Temperature range: -30~+80 degrees
1 * CC2530PA wireless module
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
