Monday Kids Battery Charge Discharge Protection Module Auto Switching UPS Emergency Battery Power Supply Control Board DC 12V 24V 48V

Be the first to review this product

$2.98

Availability: In stock

SKU

BK-DG-14

Variations:

12-48V

5-48V

		Product Option is:
		array(2) {
  ["12-48V"]=>
  float(2.98)
  ["5-48V"]=>
  float(2.98)
}

        Product Option is:
        array(0) {
}

Options

12-48V

5-48V

Qty:

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Package: SOP
is_customized: Yes
Model Number: Power Off Protection Module
Operating Temperature: -25 ~ 85 Celsius
Supply Voltage: 5V-48V/ 12V-48V
Application: Electric Toy
Condition: New
Type: Logic ICs
Brand Name: Monday Kids
Feature 1: Low Voltage Cut off
Feature 2: Power Off Protection Module
Feature 3: Battery Charging Controller
Feature 4: Undervoltage Protection 12V
Feature 5: Undervoltage Cut off

5V-48V

1.Description:
It is a automatic switching module.When the battery is dead or there is a problem with the battery,it is powered by the power supply.When there is input power at the power adapter,the battery can be charged.

2.Feature:
1>.Automatically identify the voltage
2>.Automatically switch power
3>.Battery discharge protection

3.Parameter:
1>.Product Name:Automatic Switching Module

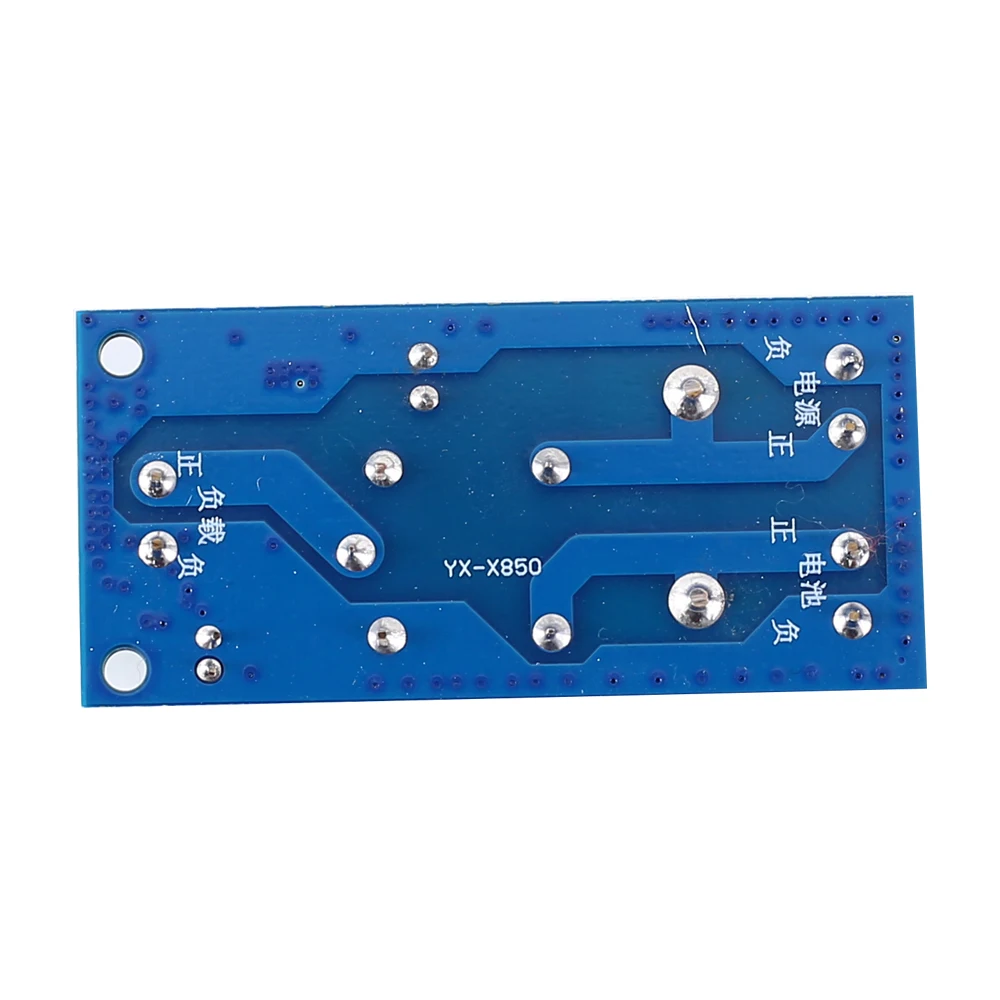

2>.Model:YX850
3>.Input Voltage:DC5V~48V
4>.Load Current:10A(MAX)
5>.Work Temperature:-25~85
6>.Work Humidity:5%~95%RH

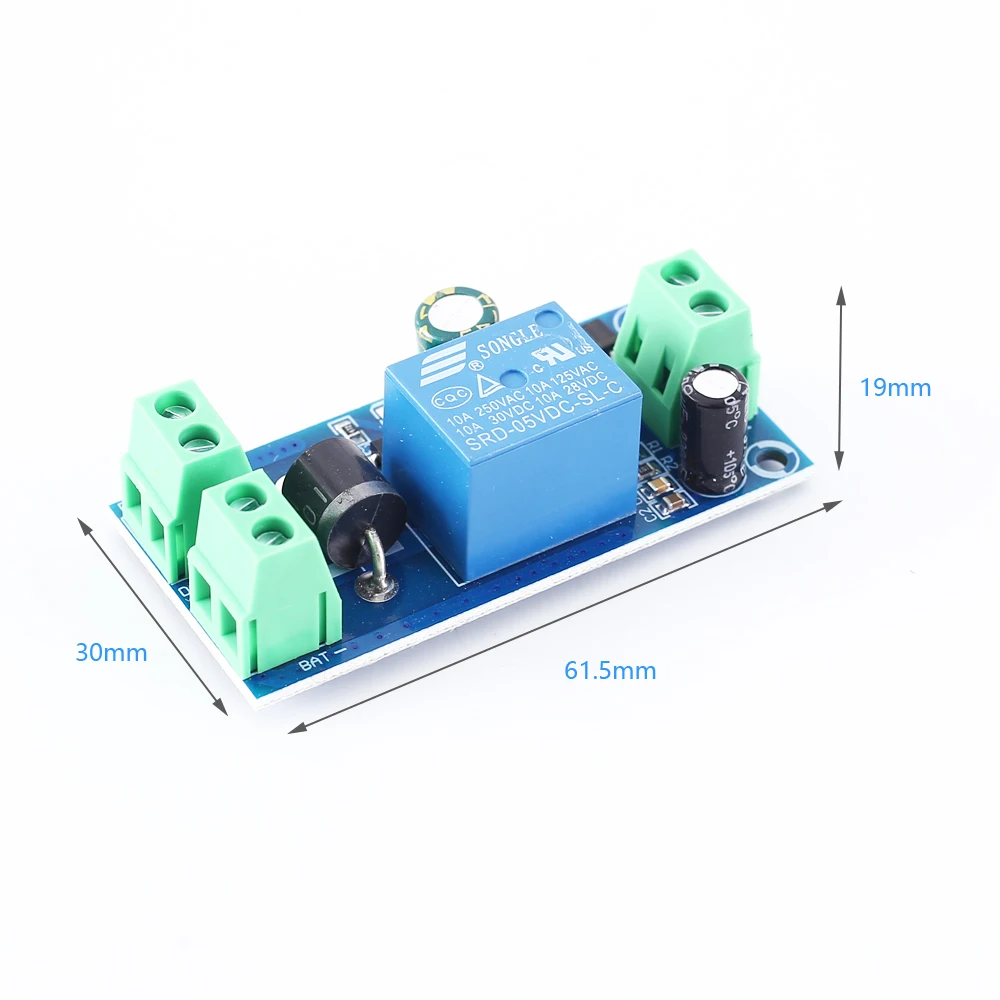

7>.Size:61.5*30*19mm

4.Note:

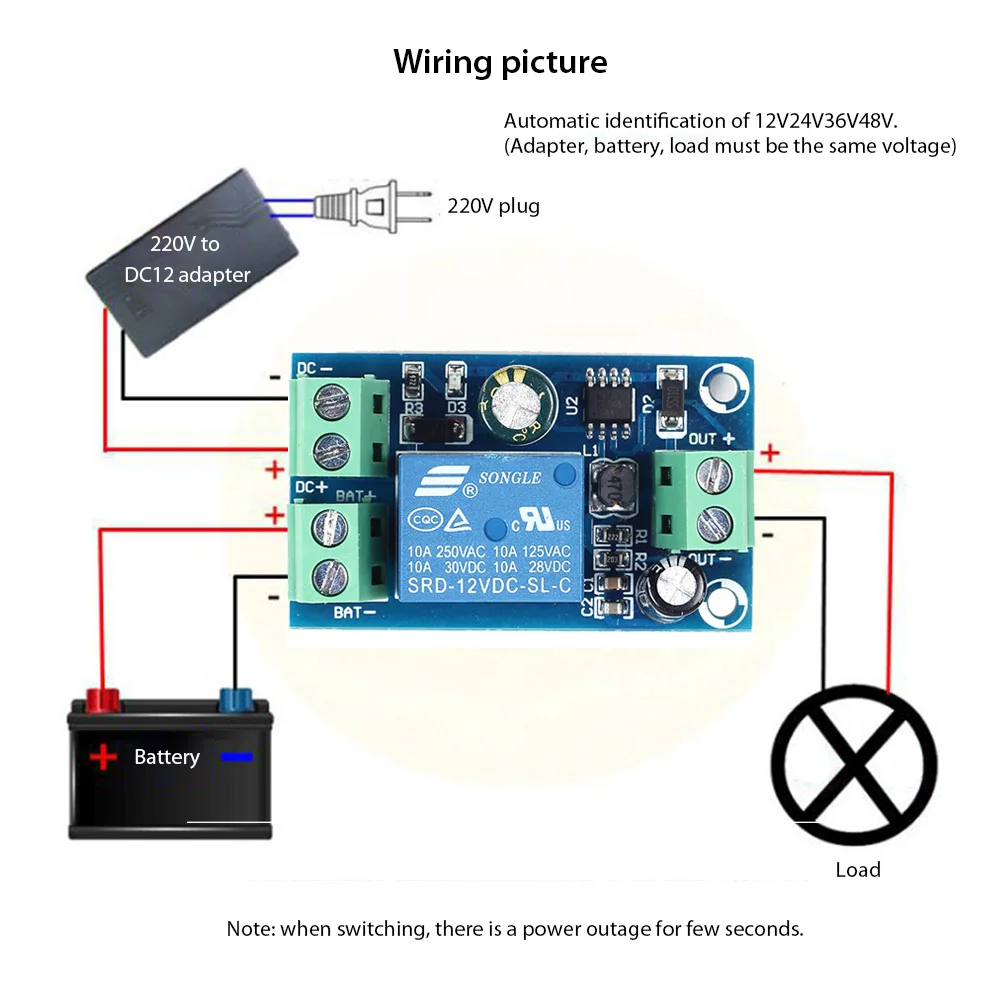

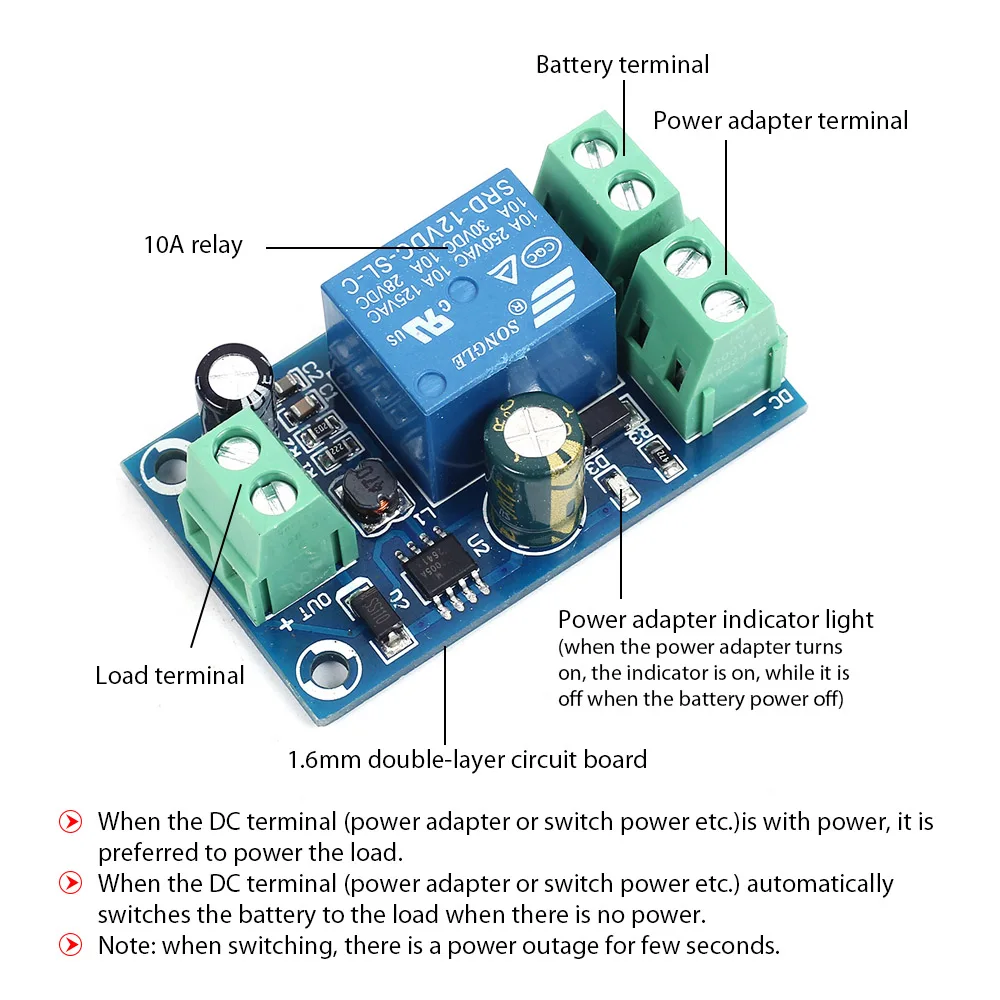

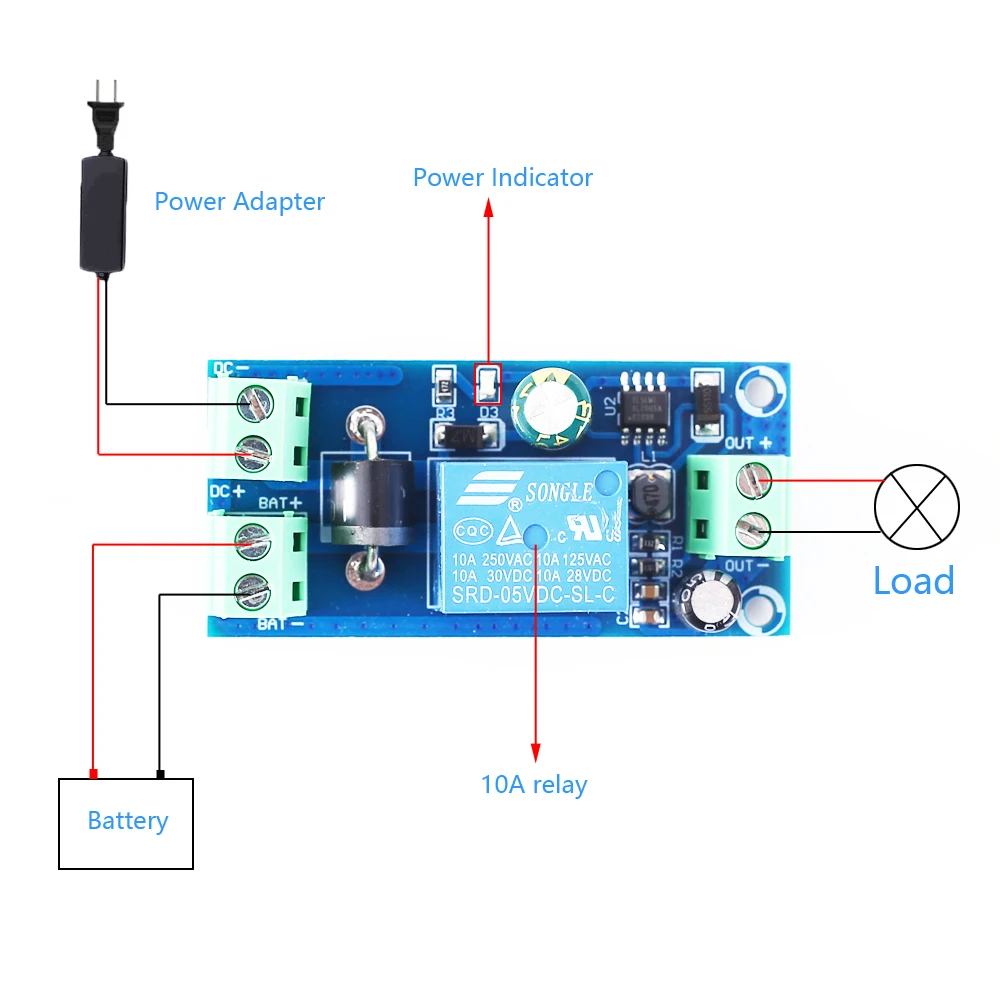

1>.When the DC terminal has input voltage,it is connected to the battery to charge the battery.
2>.When the DC terminal has input voltage,it will supply power to the load.
3>.When the DC terminal is not input voltage,the product will automatically switch to the load powered by a battery.
4>.The product will lose power for 0.7 seconds when switching power supply equipment.
5>.The DC,power and load voltages should be the same.

12V-48V

1. Description:
This is a power outage automatic switch module for 12V-48V battery.

2. Parameters:
1>. Product model : X804
2>. Applicable voltage: DC 12V-48V
3>. Product load: 10A
4>. Product size: About (L)50mm* (W)30mm* (H)18mm
