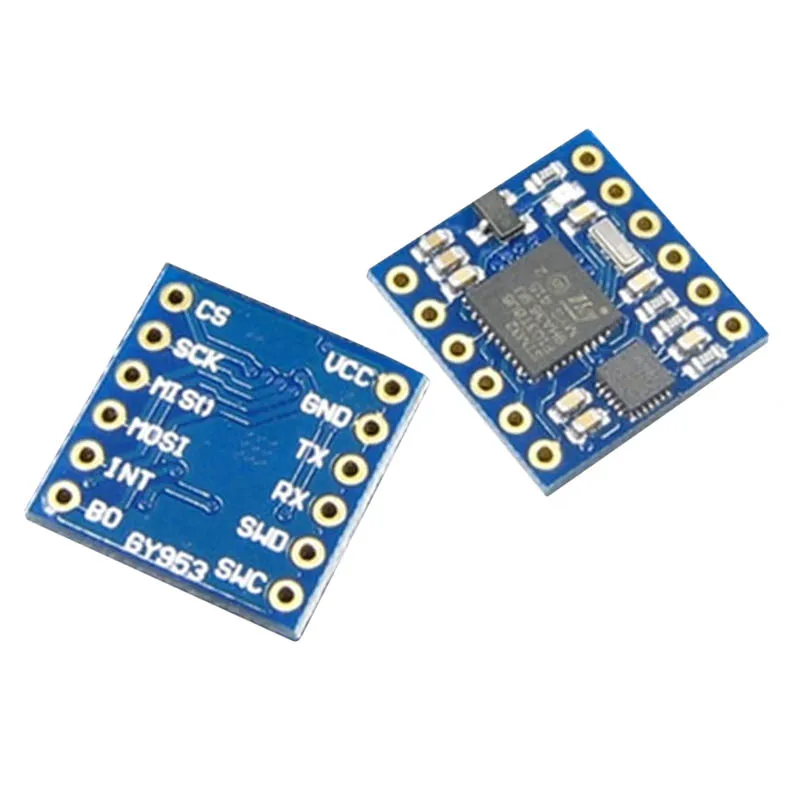

Monday Kids AHRS electronic compass module band tilt compensation module ultra small serial port SPI interface GY-953 GY010
$13.30
Availability:
In stock
SKU
RY-ES-487
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Material: Polymer
- Type: Vibration Sensor
- Model Number: GY-953
- Output: Analog Sensor
- is_customized: Yes
- Theory: electronic compass module
- Usage: AHRS module
AHRS electronic compass module band tilt compensation module ultra small serial port SPI interface GY953
-

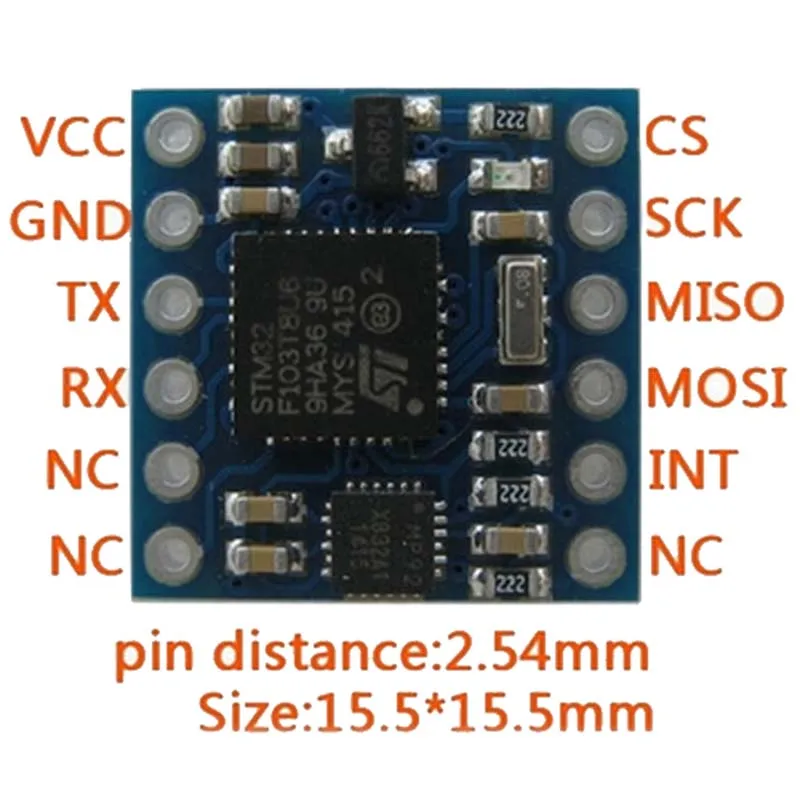

Size: 15.5mm*15.5mm
-
Communication mode, 1. serial port (9600115200), 2.SPI communication (4 lines)
-
Power supply: 3v-5v 15mA
-
Output update frequency 100HZ
-
Resolution 0.1 degrees
Direct output:
-
Euler angles (YAW, ROLL, PITCH)
-
nine axis sensors, raw data (acceleration, gyroscope, magnetometer)
-
four element output
-
Sensor calibration command
-
With magnetometer, the course angle does not drift
-
PC software
-
Existing read data program (serial port and SPI): 51 SCM, STM32

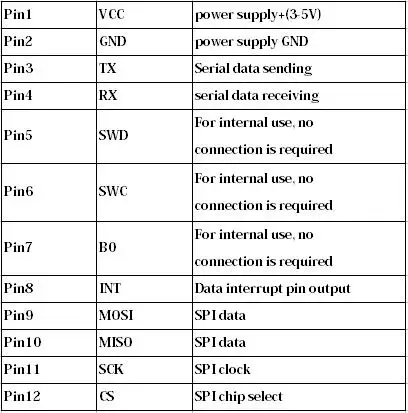

Pin description：

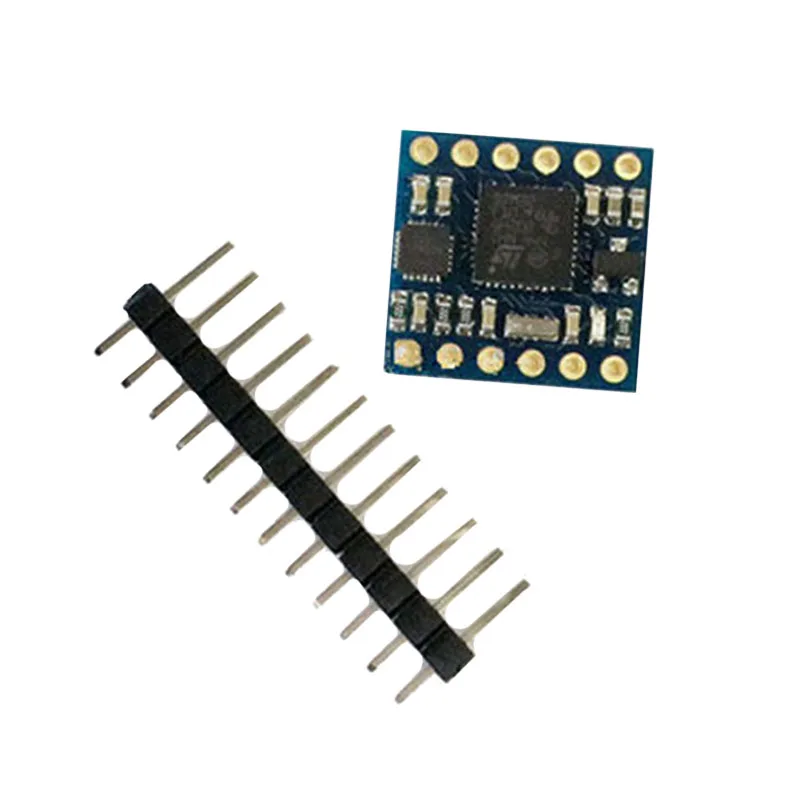

1 * GY-953 module
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
