Monday Kids ADS1256 DAC8552 High Precision AD/DA Digital Module Expansion Board For Raspberry Pi A+/B+/2B RP014

$45.00

Product name is ADS1256 DAC8552 High Precision AD/DA Digital Module Expansion Board For Raspberry Pi A+/B+/2B RP014...

Product origin name is Monday Kids ADS1256 DAC8552 High Precision AD/DA Digital Module Expansion Board For Raspberry Pi A+/B+/2B RP014

Availability: In stock
SKU
RY-ES-384

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Model Number: AD/DA Module
  • is_customized: Yes

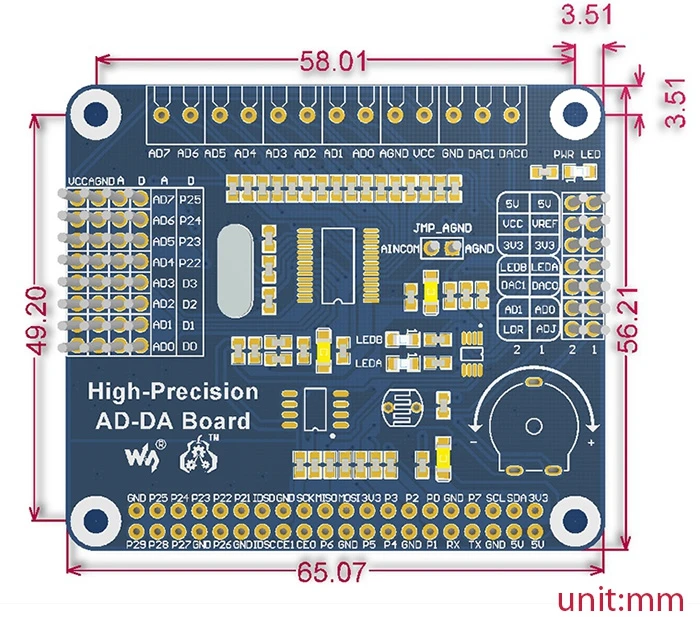

High Precision AD/DA Digital Module ADS1256 DAC8552 For Raspberry Pi

Product description:

AD/DA digital module is the Raspberry Pi A+/B+/2B/3B expansion board, with 8 channels, 24 bit high-precision ADC and 2 channels, 16 bit high-precision DAC.
Raspberry Pi GPIO interface does not have AD/DA function, if you want to use high-precision AD/DA, then I will be a good choice!
Product features:
  • Onboard ADS1256 chip, 8 channel, 24 bit, high-precision ADC (4 channel differential input), 30ksps sampling rate

  • Onboard DAC8532 chip, 2 channel, 16 bit, high-precision DAC

  • Onboard pin package input interface, can be connected to the analog signal, micro sensor interface standard compatible with easy access to a variety of analog sensor module.

  • The onboard terminals are packaged with input and output interfaces, and analog signals and digital signals can be accessed, so that they can be used in all kinds of situations

  • With AD/DA detection circuit, it is convenient to observe the experimental phenomenon.

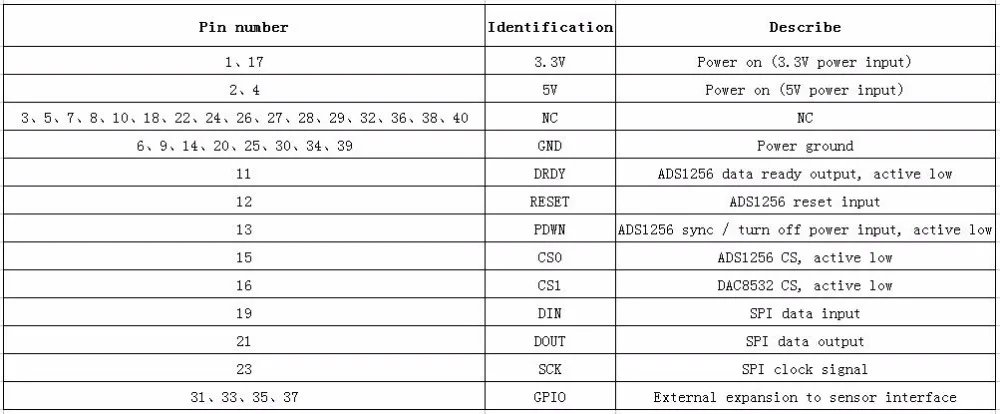

Interface definition:

Package Included:

1 * High Precision AD/DA Module

  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
