Monday Kids AC 220V 10A 3-Channel 3Bit Power Time Sequence Board Automatic Delay 3CH 1-60s Adjustable Sequential Controller Module

QF-S10D3 AC 220V 60S 3Bit Power Time Sequence Controller Module

1.Description:
QF-S10D3 is a AC 220V 60S 3Bit Power Time Sequence Controller Module with Self-locking.The 3 output states change in turn when change input trigger signal. It can turn on and off the load in turn to protect the load and avoid the problem of excessive starting current at the same time.

2.Features:
1>.60s adjustable delay
2>.20ms response time
3>.Switch trigger signal input
4>.10A peak high current
5>.Voltage output same to input

3.Parameters:
1>.Product name: QF-S10D3 AC 220V 60S 3Bit Power Time Sequence Controller Module
2>.Work voltage:AC 180V~250V
3>.Peak current:10A(Max)
4>.Peak power:600W(Max)
5>.Trigger signal:Button trigger signal
6>.Delay time:1~60s(adjustable)
7>.Output type:The same to input voltage
8>.Work Temperature:-40~80
9>.Work Humidity:10%~90%RH

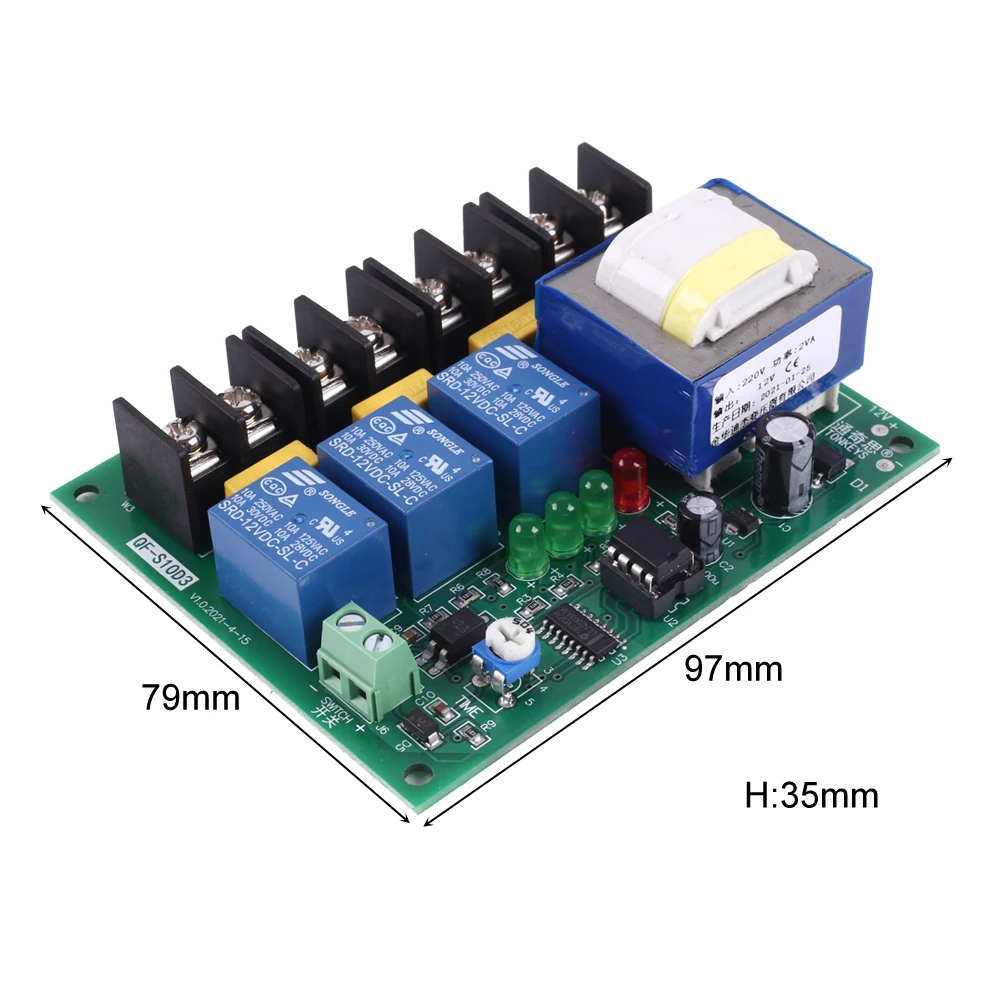

10>.Module Size:97*79*35mm

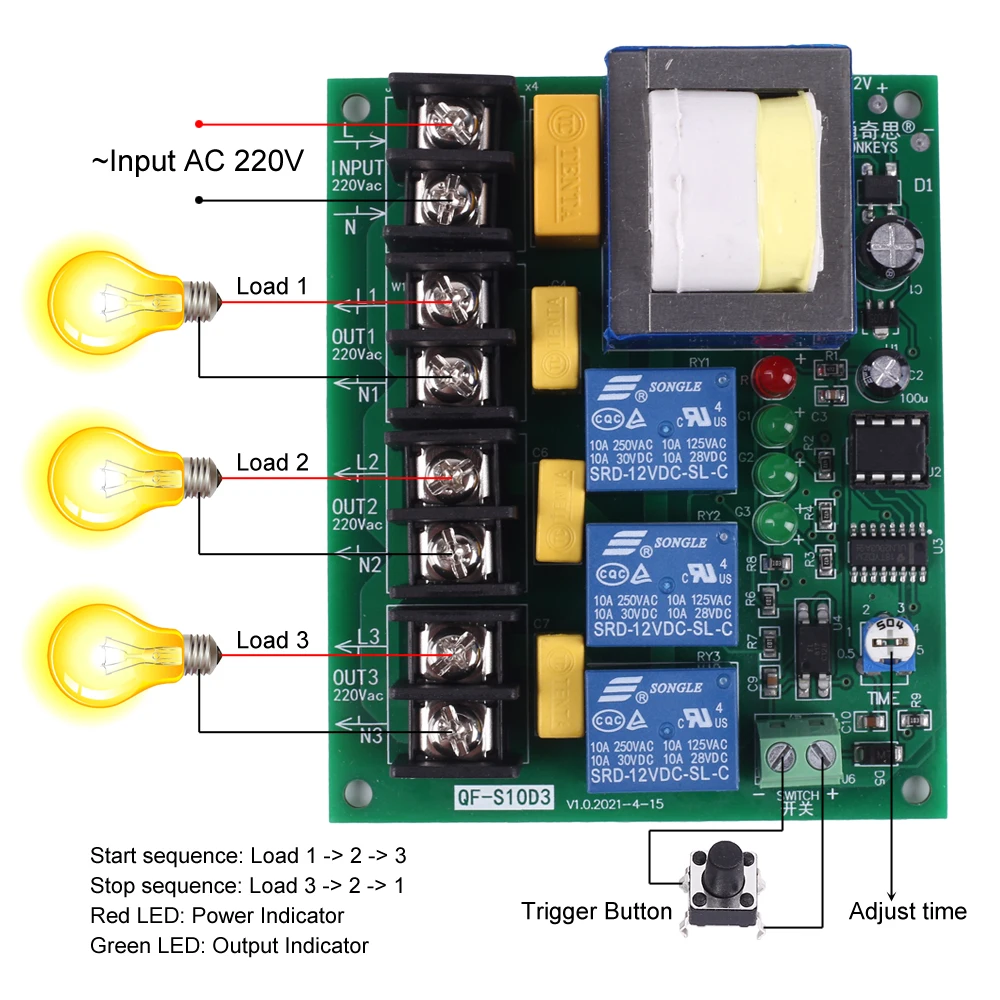

4.Function:
1>.Function:Start in order, stop in reverse order.
2>.Start:
2.1>.L1 load turns ON after input trigger signal.
2.2>.L2 load turns ON after delay time T1 which can be set from 1s to 60s.
2.3>.L3 load turns ON after delay time T1*2.
2.4>.L1 load turns OFF and L2 keep OFF if release trigger signal during delay T1.
3>.Stop:
3.1>.L3 load turns OFF if release trigger signal .
3.2>.L2 load turns OFF after delay time T1 which can be set from 1s to 60s.
3.3>.L1 load turns OFF after delay time T1*2
4>.Trigger signal:
4.1>.The outputs state will turn on in turn when the signal is maintained; The outputs state will stop in turn when the signal is released.

5.Application:
1>.Set-top box and TV start in sequence
2>.High-power distributor
3>.Audio equipment
4>.Smart home control
5>.Warehouse equipment management

6.Package:
1>.QF-S10D3 AC 220V 60S 3Bit Power Time Sequence Controller Module
