Monday Kids 8CH Modbus RTU RS485 R4DCB08 Temperature Receiver Relay Module Temperature Acquisition Collector Paperless Recorder for PLC
$13.89
Availability:
In stock
SKU
BK-DG-34
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Package: DIP
- is_customized: Yes
- Model Number: RS485 Temperature Monitor
- Operating Temperature: -40~80 Celsius
- Supply Voltage: DC 6-24V
- Application: Computer
- Condition: New
- Type: Drive IC
- Brand Name: Monday Kids
- Work Current: 8mA~13mA
- Command Control Mode: RS485 MODBUS RTU 03 06
- Adapted Sensor: DS18B20 Temperature Sensor(Not included!!!)
- Temperature Range: -55~125
- Measurement Accuracy: 1%
- Work Humidity: 10%~90% RH
- Feature 1: RS485 Temperature Monitor
- Feature 2: Modbus Temperature Controller
- Feature 3: Temperature Relay Module
8CH Modbus RTU RS485 R4DCB08 Temperature Receiver Relay Module Temperature Acquisition Collector Paperless Recorder for PLC Configuration Data Signal Controller Recorder
1.Description:

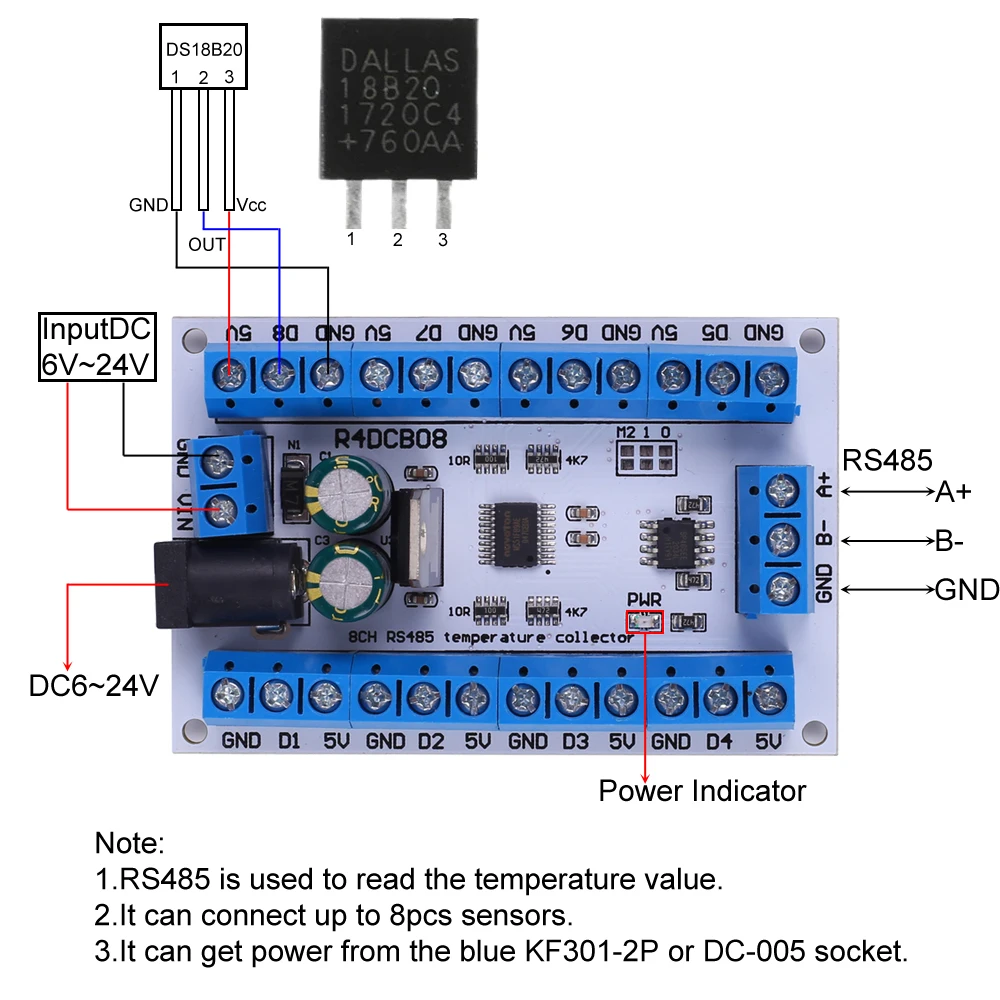

R4DCB08 is a 8Bit RS485 Temperature Receiver for 8pcs DS18B20 sensors. It can read 8 temperature value from 8 DS18B20 sensors and output by RS485 terminal.Users can read the temperature of different monitoring points, which is convenient for equipment and temperature control.
2.Features:
1>.Read 8-channel temperature
2>.RS485 MODBUS RTU 03 06 programmable control
3>.Support up to 247 devices in parallel
3.Parameters:
1>.Product name:R4DCB08 8Bit RS485 Temperature Receiver for 8pcs DS18B20 sensors
2>.Work voltage:DC 6V-24V
3>.Work current:8mA~13mA
4>.Command control mode:RS485 MODBUS RTU 03 06
5>.Adapted sensor:DS18B20 Temperature Sensor(Not included!!!)
6>.Temperature range:-55~125
7>.Measurement accuracy:1%
8>.Work Temperature:-40~80
9>.Work Humidity:10%~90%RH

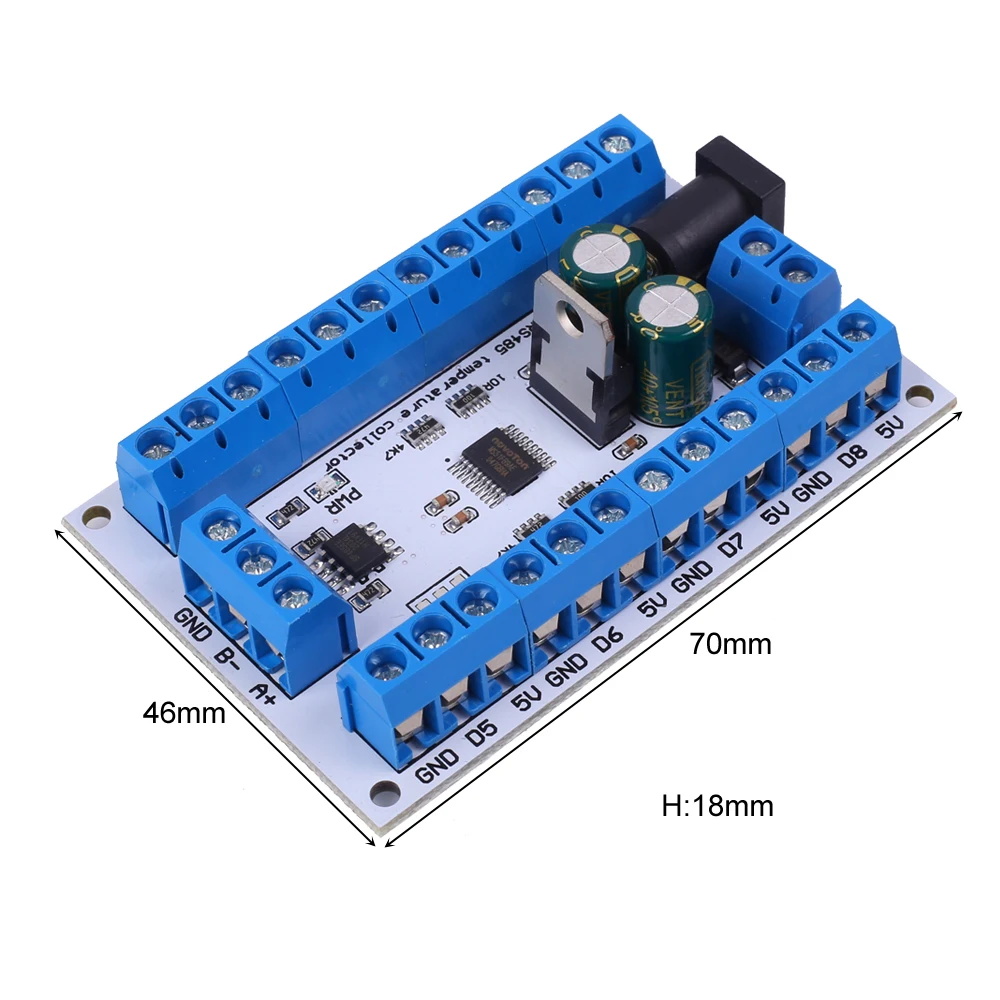

10>.Module Size:70*46*18mm
4.Note:
1>.It is a DS18B20 temperature reader but not include DS18B20 sensor.
2>.There are so many AT and UART control commands that the page cannot be filled in. After purchase, please contact us to send AT and UART control instructions.
5.Application:
1>.Aquarium temperature measurement
2>.Equipment temperature monitoring
3>.Intelligent control of greenhouse planting
