Monday Kids 80MHz/160MHz 32-bit Wireless Switch SV(safe voltage) Module 5-24V Wi-Fi Switches Remote Control for Smart Home Domotica

$7.21

Product name is 80MHz/160MHz 32-bit Wireless Switch SV(safe voltage) Module 5-24V Wi-Fi Switches Remote Control for Smart Home Domotica...

Product origin name is Monday Kids 80MHz/160MHz 32-bit Wireless Switch SV(safe voltage) Module 5-24V Wi-Fi Switches Remote Control for Smart Home Domotica

Availability: In stock
SKU
RY-ES-515

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Type: Voltage Regulator
  • Condition: New
  • Application: Computer
  • is_customized: Yes

Description:
Adnroid APP: E-WeLink-2.1.13.apk
Support IOS cellphone also, you can search "e-welink" in App store to setup it;
Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;

Information link:

http://www.raspberrypiwiki.com/images/4/40/Sonoff_SV-VIEW.pdf
http://www.raspberrypiwiki.com/images/3/3b/Sonoff_SV_Schematic.pdfAPP Download


This version does not have 433 RF function and without shell.

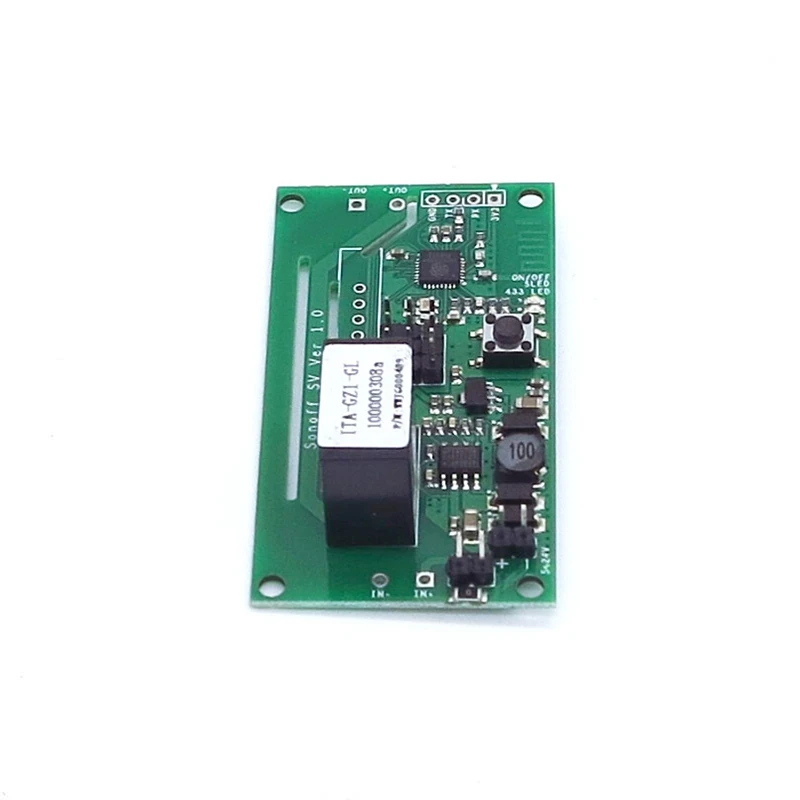

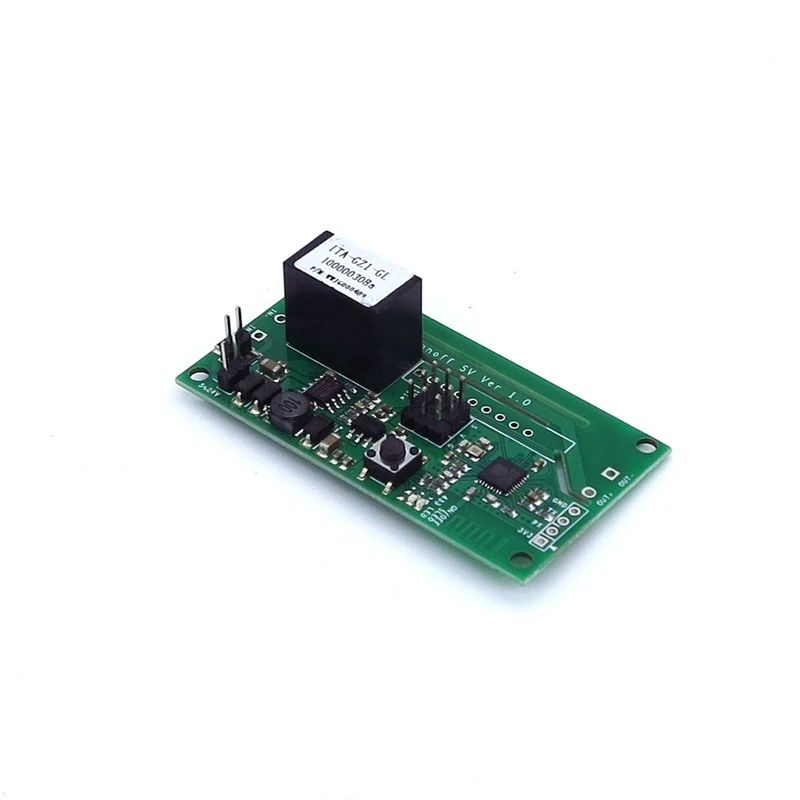

Sonoff SV(safe voltage) is a low power supply Sonoff version,which supports 5-24V power supply. The power separation circuit enables it to control AC or DC power for the connected device, but you need to do some welding to realize this function, please refer to Soldering Instructions below. Sonoff SV has GIPO reserved to support secondary development. This version does not have 433 RF function.


Features:

- Support 5~24V power supply.
- Support fast configure SSID and password through APP.
- Support automatic connect to server, register and update status info.
- Support tracking device status and timely remote control through APP.
- Support setting max 8 single or repeat timing tasks each device Reserve GIPO to support secondary development
- Reserve GIPO to support secondary development.
- Support numerous WIFI smart switches one smart phone.

WIFI Characteristics:

- 802.11 b / g / n
- Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
- Built-in TCP / IP protocol stack
- Built-in TR switch, balun, LNA, power amplifier and matching network
- Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
- A-MPDU&A-MSDU; aggregation and 0.4μs guard interval
- WIFI @ 2.4 GHz, supports WPA / WPA2 safe mode
- Support cloud OTA upgration
- UART, I2C, PWM, GPIO
- Deep sleep maintain current is 10 uA, shutdown current is less than 5 uA
- Wake-up, connect and transfer data packets in 2 ms
- Standby power consumption is less than 1.0 mW (DTIM3)
- Operating temperature range: -40 ℃ - 125 ℃
- Other parameters as follows


Package include:
1 * DC 5V-24V DIY Wifi Wireless Switch Sonoff SV Module
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
