Monday Kids OV2640 Sensor Camera Module Type-C USB Development Board ESP32 For Arduino WiFi Transceiver Bluetooth CP2104 USB TTL

Be the first to review this product

$12.50

Availability: In stock

SKU

RY-ES-61

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer
Condition: New
Model Number: ESP32-CAM OV2640 Sensor Camera Module
Type: Voltage Regulator
is_customized: Yes

ESP32-CAM OV2640 Sensor Camera Module Type-C USB Development Board ESP32 For Arduino WiFi Transceiver Bluetooth CP2104 USB TTL

Description:

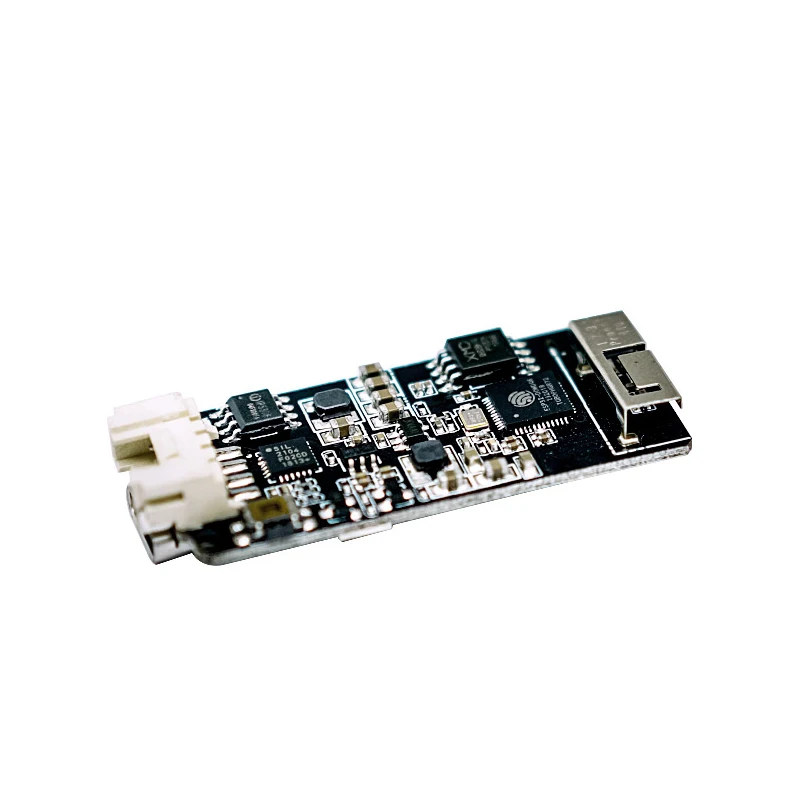

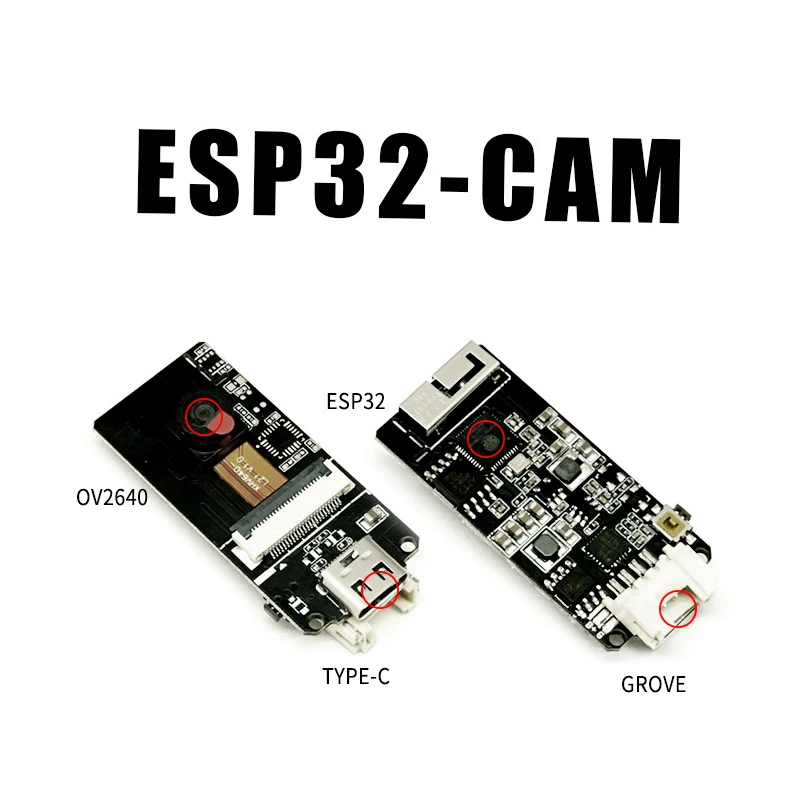

The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.
The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. It also features a LiPo charger (IP5306) , so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.

Features:
ESP32 specifications
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
4MB Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL
OV2640 sensor
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive
Camera specifications
CCD size : 1/4inch
Field of View : 78 degree
Maxmium Pixel: 200W(2MP)
Sensor best resolution: 1600 * 1200
Dimension: 25mm x 24mm
