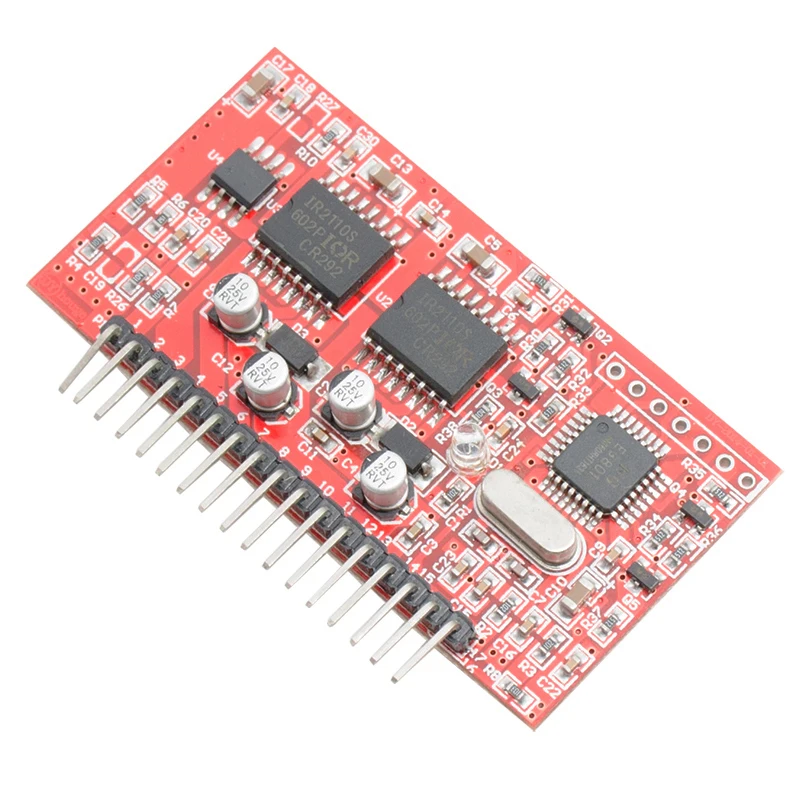

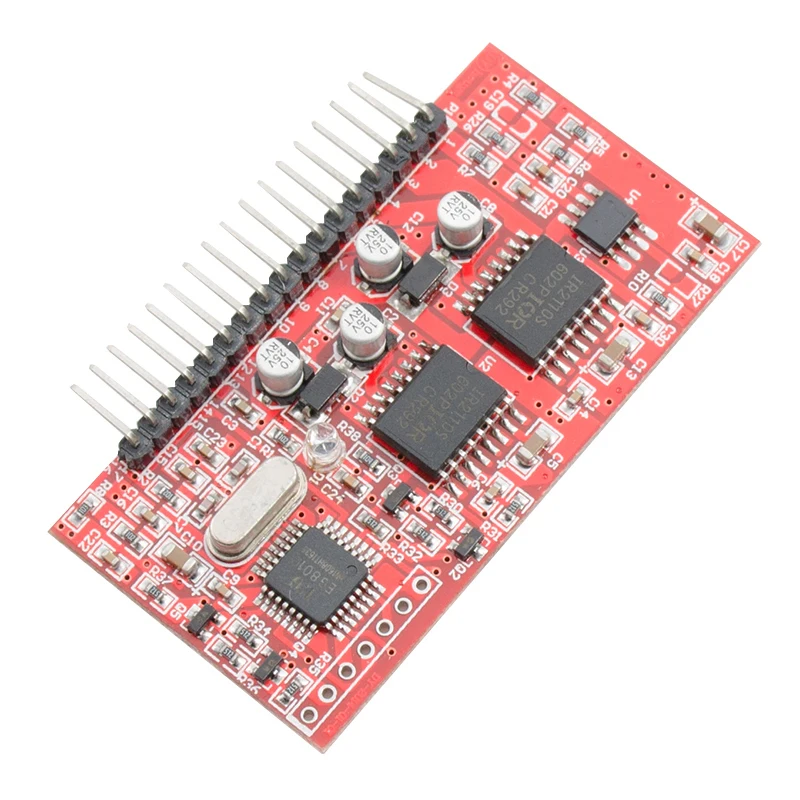

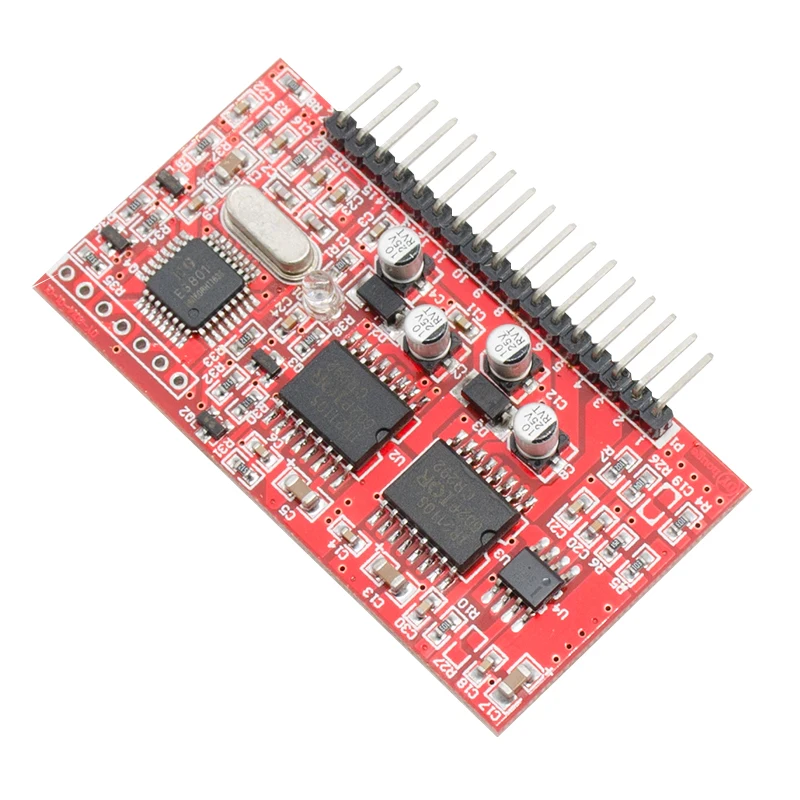

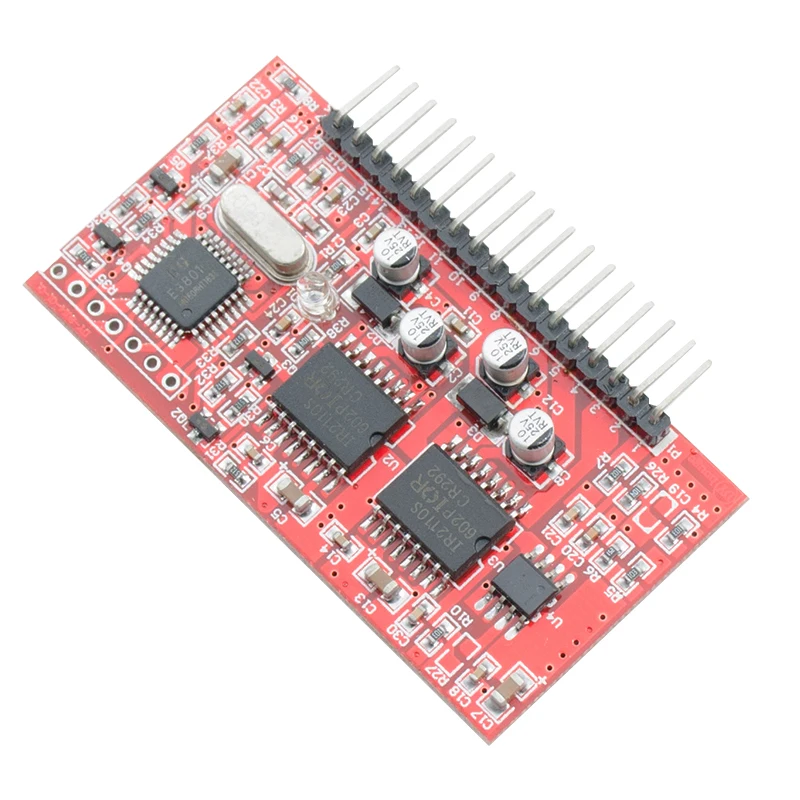

Monday Kids 2pcs/lot 5V Pure Sine Wave Inverter Driver Board EGS002 "EG8010 + IR2110" Driver Module
$17.65
Availability:
In stock
SKU
RY-ES-363
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: Sine wave inverter
- Condition: New
- Supply Voltage: 5V
- Type: Voltage Regulator
- is_customized: Yes
- Application: Single phase pure sine wave inverter
Note:We send green color by default.
Description:
EG8010 a digital, function is perfect built-in control dead zone of pure sine wave inverter generator chip, application to dc-dc-ac two-stage power conversion architecture or DC-AC single stage power frequency transformer step-up (boost) architecture, external 12Mhz crystal oscillator, can achieve high accuracy and distortion and harmonic are very small pure sine wave 50Hz or 60Hz inverter special chip. The chip using CMOS technology, the internal integrated SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driving function module.
Characteristic:
* 5V single power supply
* Pin Set 4 kinds of pure sine wave output frequency: 50Hz pure sine wave fixed frequency 60Hz pure sine wave fixed frequency, 0-100Hz pure sine wave frequency is adjustable, 0-400Hz pure sine wave frequency is adjustable
* unipolar and bipolar modulation
* with dead time control, pin set 4 dead time: 300nS dead time, 500nS dead time, 1.0uS dead time, 1.5uS dead time
* external 12MHz crystal oscillator
* PWM carrier frequency 23.4KHz
* the voltage, current, temperature feedback real-time processing
* overvoltage, undervoltage, overcurrent, overheating protection function
* Pin set soft start mode 1S response time
* serial communication to set the output voltage, frequency and other parameters
* external serial 128*32 liquid crystal display module to display the inverter voltage, frequency, temperature and current information
Application area:
* single phase pure sine wave inverter
* photovoltaic inverter
* wind power inverter
* uninterrupted power supply UPS system
* digital generator system
* if power supply
* single phase motor speed regulation controller
* single phase inverter
* sine wave light regulator
* sine wave voltage regulator
* sine wave generator
Package Included:
2 * Sine wave inverter
- Unit Type: lot (2 pieces/lot)
- Package Weight: 0.1kg (0.22lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
