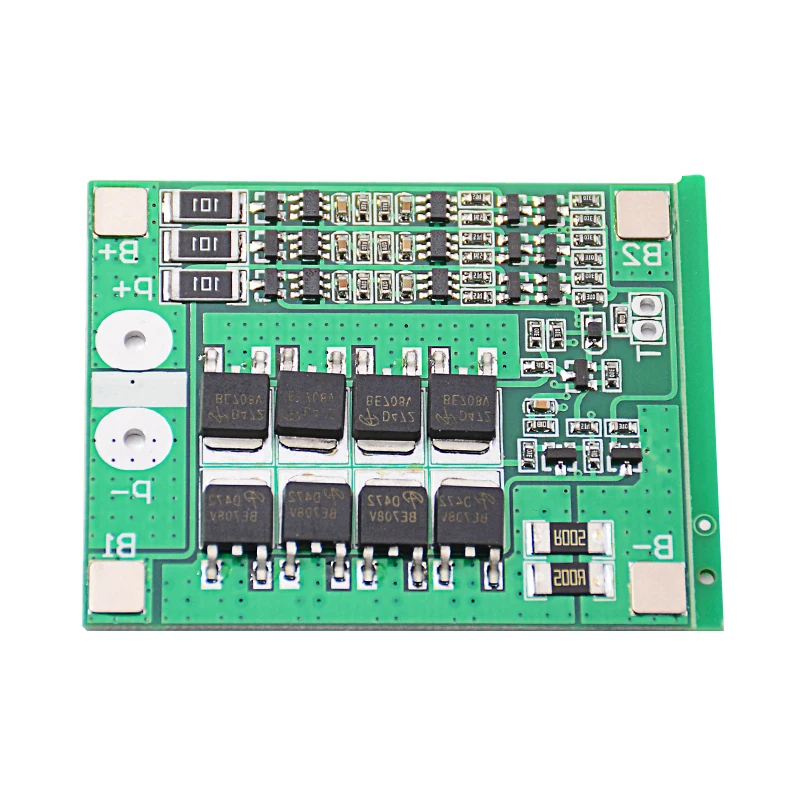

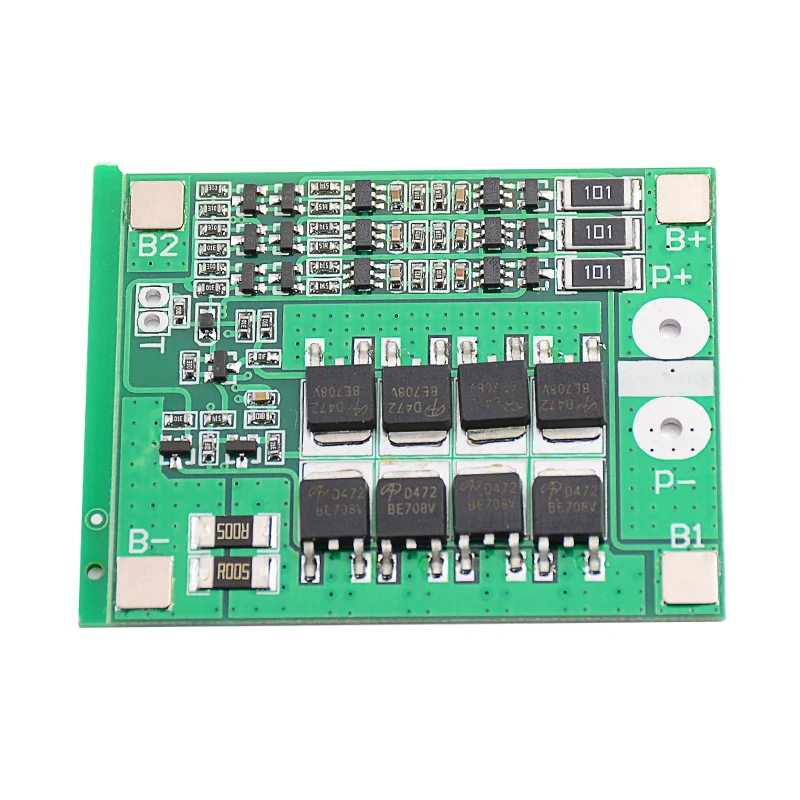

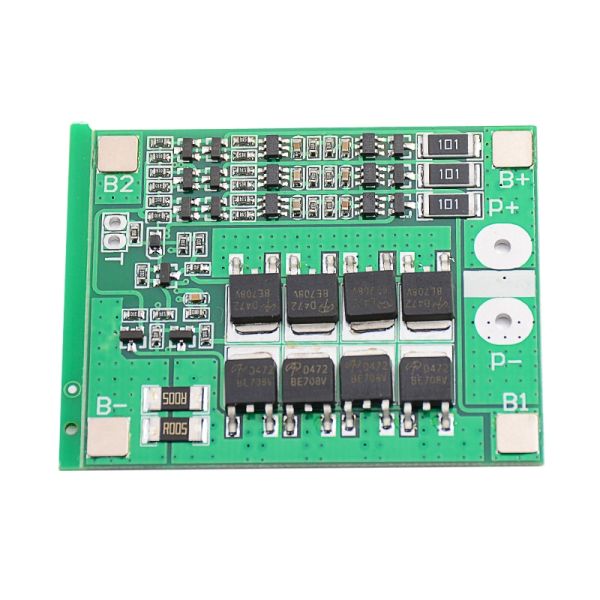

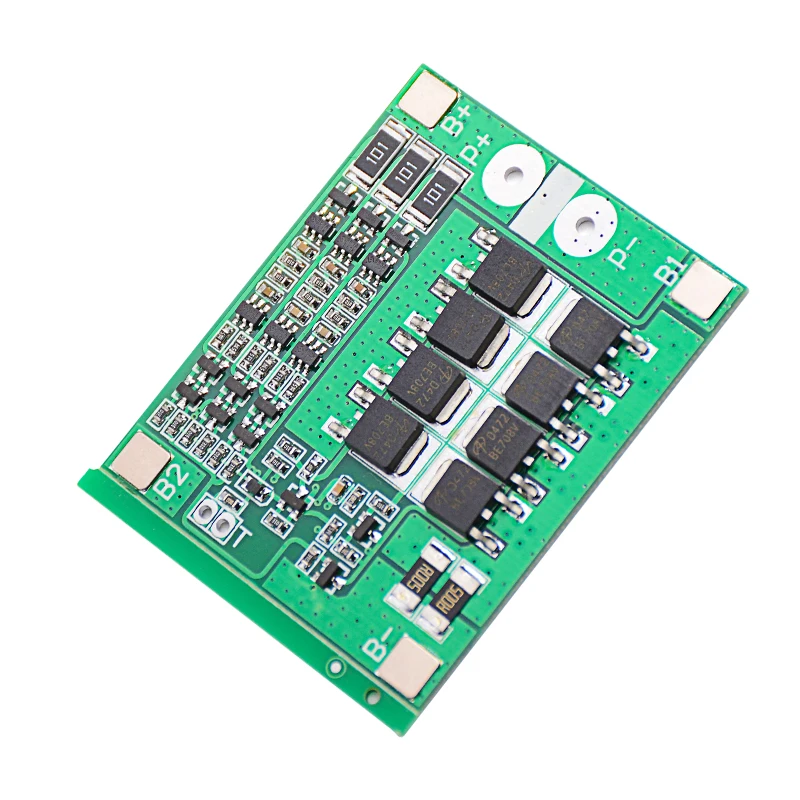

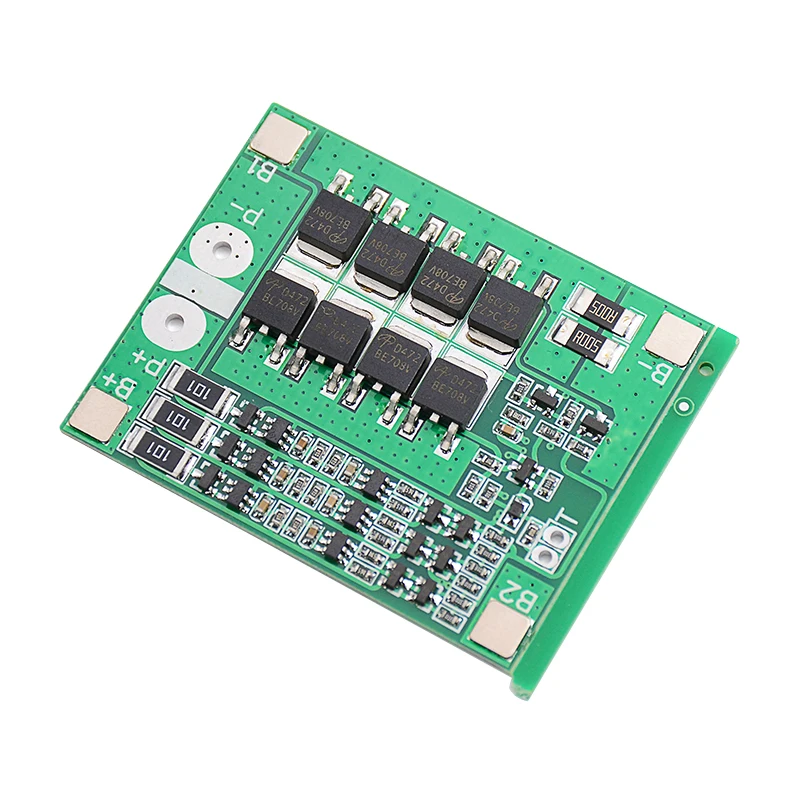

Monday Kids 2pcs/lot 3S 25A Li-ion 18650 BMS PCM Battery Protection Board BMS PCM With Balance For li-ion Lipo Battery Cell Pack Module
$4.33
Availability:
In stock
SKU
RY-ES-433
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: 3S 25A BMS
- Application: Computer
- Supply Voltage: 11.1V 12.6V
- Condition: New
- Type: Voltage Regulator
- is_customized: Yes
- Charging voltage: 11.1V-12.6V
- Version: Balanced version
- Product Size: 56*45*4.0mm
Description:
NOTE:
1) This board is not suit high power electronic tools, if use for screwdrier and drill,electric bike series make,fishing machine and 1W LED, please don't buy this.
2)Above 3A device,means the battry discharge rate is more than 3C.
1C rated battery, 2000mah equals 2ah*1=2A max working current.
3C rated battery means 2ahx3=6A Max working current.
Balancer is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
Note: Battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Brief Parameter:
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut:Protectable,Charge can repair
Size:56*45*4.0mm
Packae Inclusing:
2 * 3S 25A Li-ion 18650 BMS PCM Battery Protection Board
- Unit Type: lot (2 pieces/lot)
- Package Weight: 0.04kg (0.09lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
