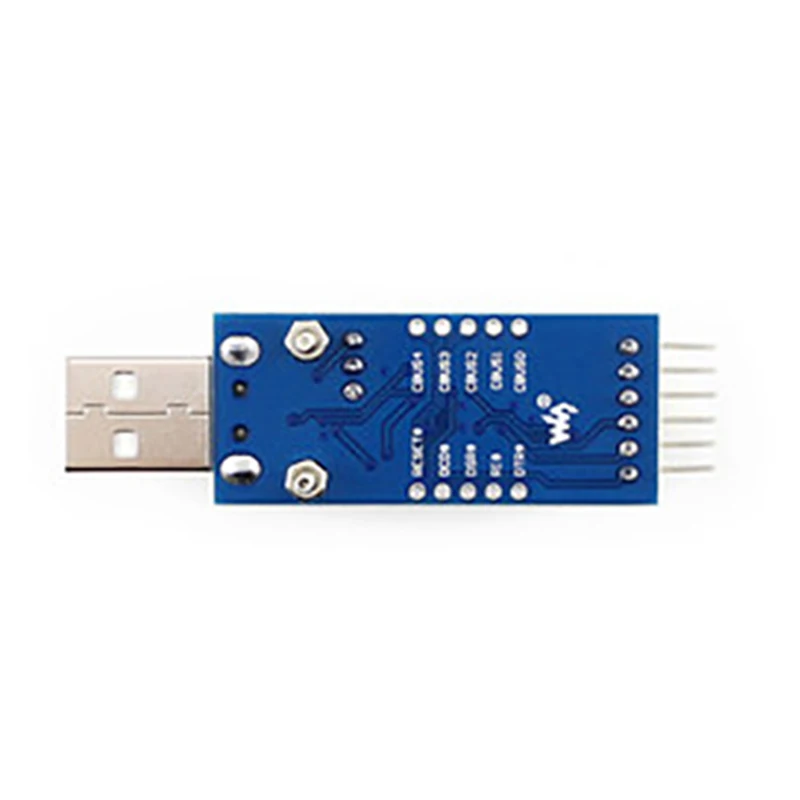

Monday Kids 1PC Type A/Mini/Micro Interface FT232 Module FT232 USB to Serial Port USB to TTL FT232R FT232RL USB UART Board

Be the first to review this product

$7.55

Availability: In stock

SKU

RY-ES-325

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer

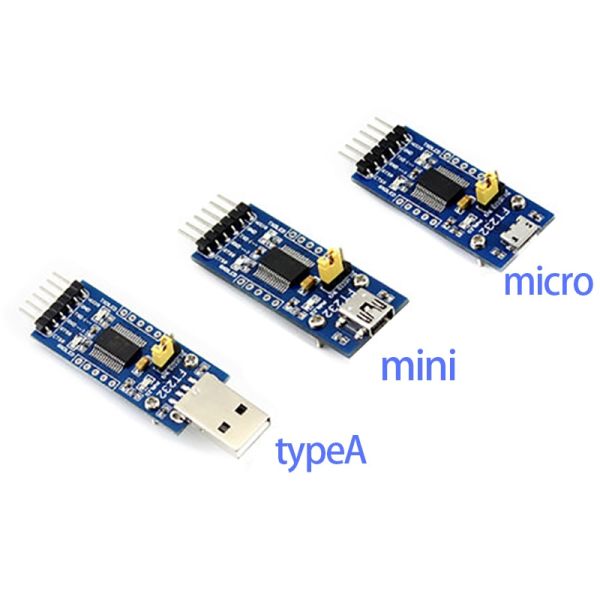

Model Number: Type A/Mini/Micro Interface FT232 Module
Condition: New
is_customized: Yes
Type: Voltage Regulator

Description:

Original FT232RL

Support Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...

Support 3 kinds of power supply modes: 5V external power supply; 3.3V external power supply; external power supply (required 3.3V-5V)

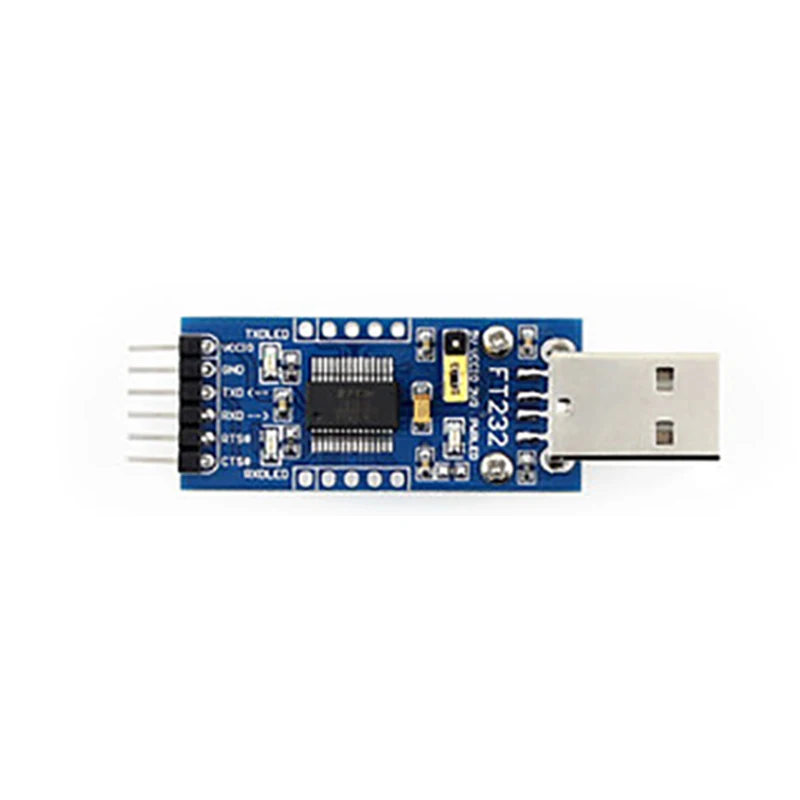

With 3 LEDs: TXD LED, RXD LED, POWER LED

TXD, RXD, RTS#, CTS#: use curved pin to lead out

The remaining function PIN: reserved pad (distribution pin, row seat, can be plugged in or plugged into the user system; PIN spacing supports insertion of the universal board)

Instructions for use: (taking the access MCU as an example)

VCCIO: Output 3.3V or 5V (module powered by USB, jump jumper cap to 3.3V or 5V)

GND: Connect to GND

TXD: Connect to MCU.RX (Signal Flow Direction: MCU.RX << FT232 << PC.TX)

RXD: Connect to MCU.TX (Signal Flow: MCU.TX >> FT232 >> PC.RX)

RTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS << FT232 << PC.RTS)

CTS: Connect to MCU.RTS (Signal Flow: MCU.RTS >> FT232 >> PC.CTS)

Note: This product does not have a USB cable. The module is USB to TTL level. Do not connect the RS232 level directly to avoid burning the module.

Packge Included:

1 * Type A/Mini/Micro Interface FT232 Module
