Monday Kids 16 Channel 12V Relay Module With Optocoupler Protection, With LM2576 Power

Be the first to review this product

$10.32

Availability: In stock

SKU

RY-ES-508

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 12V
Condition: New
Type: Voltage Regulator
is_customized: Yes
Model Number: 16 Channel Relay Module
Application: optocoupler protection,etc.

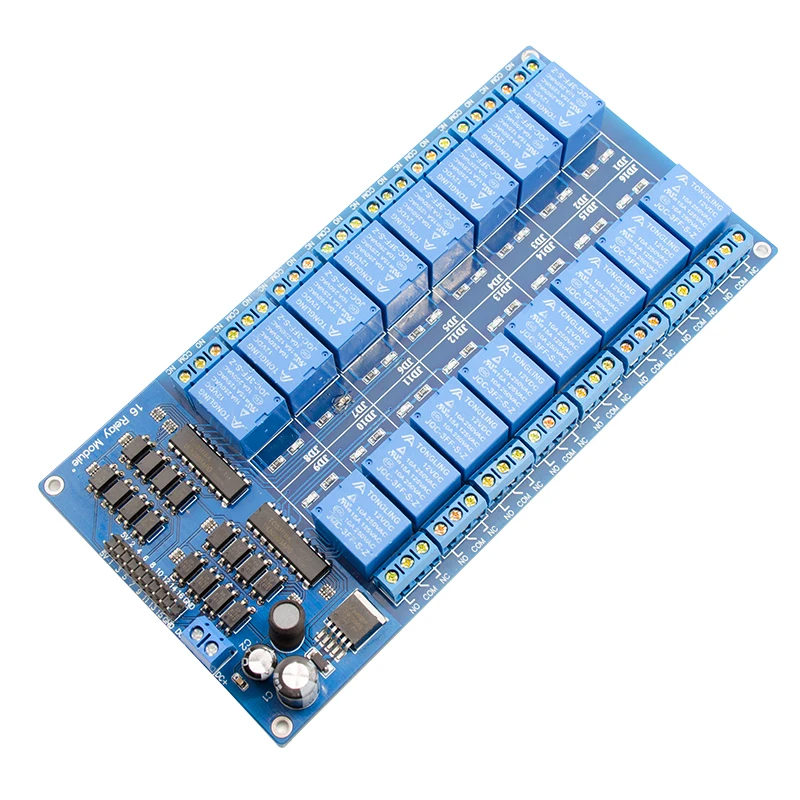

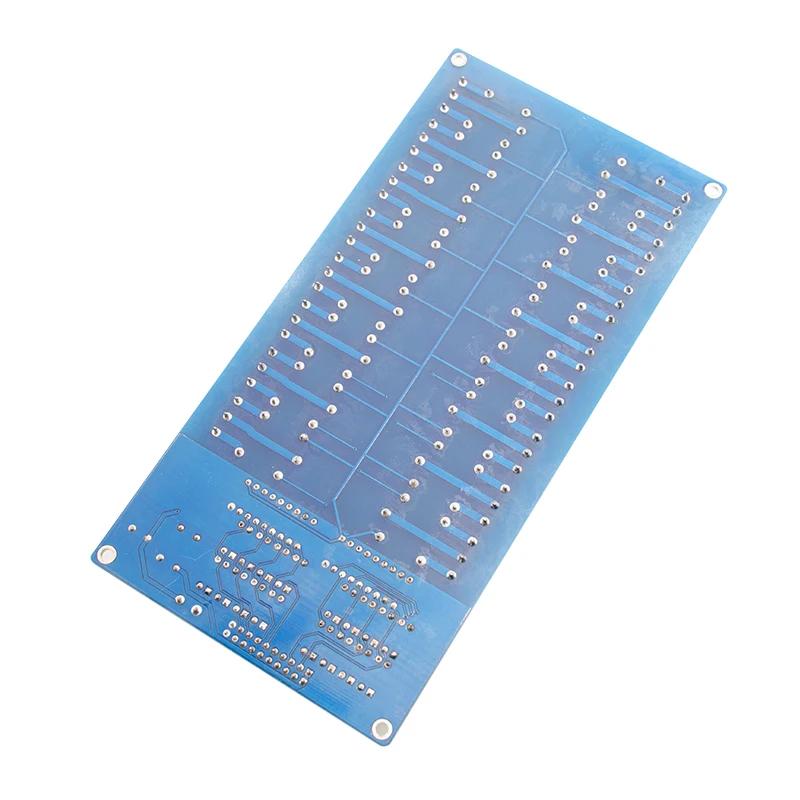

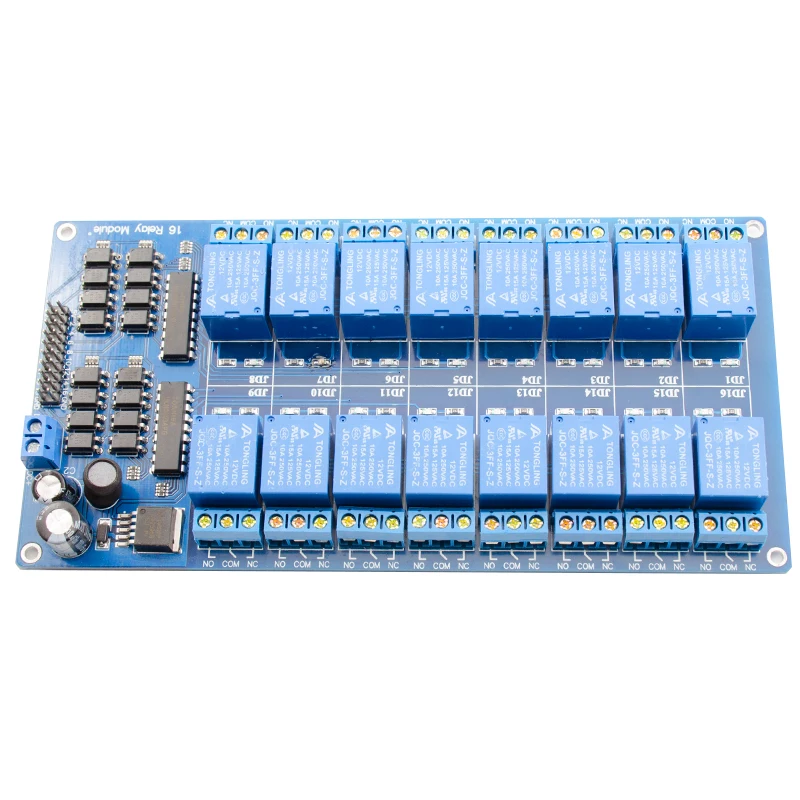

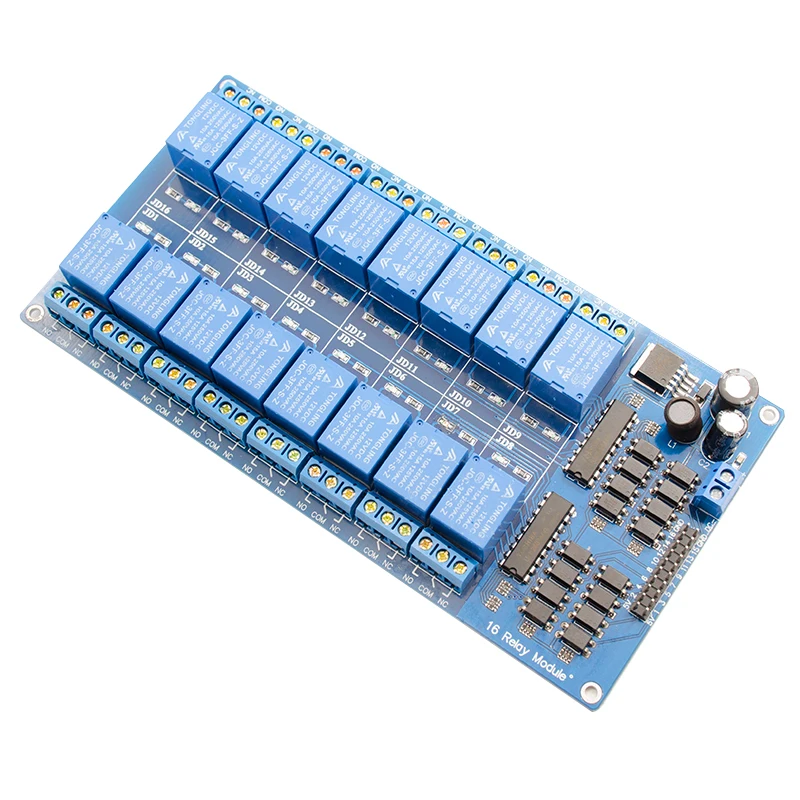

16 Channel 12V Relay Module With Optocoupler Protection, With LM2576 Power

Description :

Note:The relay is 12V. If you need 5V, please leave a message.

Application:

1, 12V relay contact capacity 10A 250V, with optocoupler protection. The onboard power supply module does not require an external power supply. The I/O port drive is active low.

2, can be used as a microcontroller development board module, can be used as home appliance control, can also be used as PLC expansion output.

Module features:

1. Control signal voltage range: The trigger signal is low level 0-2V; the high level voltage cannot exceed 5V.

2, using the industry's top quality isolated optocoupler, strong anti-interference ability, stable performance; trigger current only needs 3mA.

3, 1-16 road can be turned on/off at will, or any way.

4. Output form: Directly connect AC 220V 10A or DC30V 10A load.

5. The common terminal COM of each relay is independent, which is convenient for users to access different signals. Each relay has a normally closed and normally open port.

6. Each relay has an action indicator, which is illuminated and turned off.

7. The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient.

8. There are 4 fixing bolt holes for easy installation.

9, PCB board size: 180MM (L) * 90MM (W) * 20MM (H).

Electrical parameters:

Supply voltage: 12V (DC)

Supply current: greater than 200mA

Each relay can be loaded: 250V 10A (AC)

Product instructions:

1. The power supply should meet the scope of use, DC 12V;

2. The power supply is not required to be connected according to the wiring diagram;

3. The product uses LM2596S step-down chip with slight heat, which is a normal phenomenon. The relay has normal heating phenomenon for a long time, which is a normal phenomenon;

4. The load power should have a certain margin for the relay load. It should avoid high power (about 2000W) and work for a long time, which will have a certain impact on product life.

Package Includes:

1 * 16-Channel 12V Relay Module
