Monday Kids 12V 4 Channel Relay Module With Optocoupler Isolation Supports High and Low Trigger 4 Road Relay RM003
$6.29
Availability:
In stock
SKU
RY-ES-519
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: 12V
- Condition: New
- Model Number: Relay Module
- Type: Voltage Regulator
- is_customized: Yes

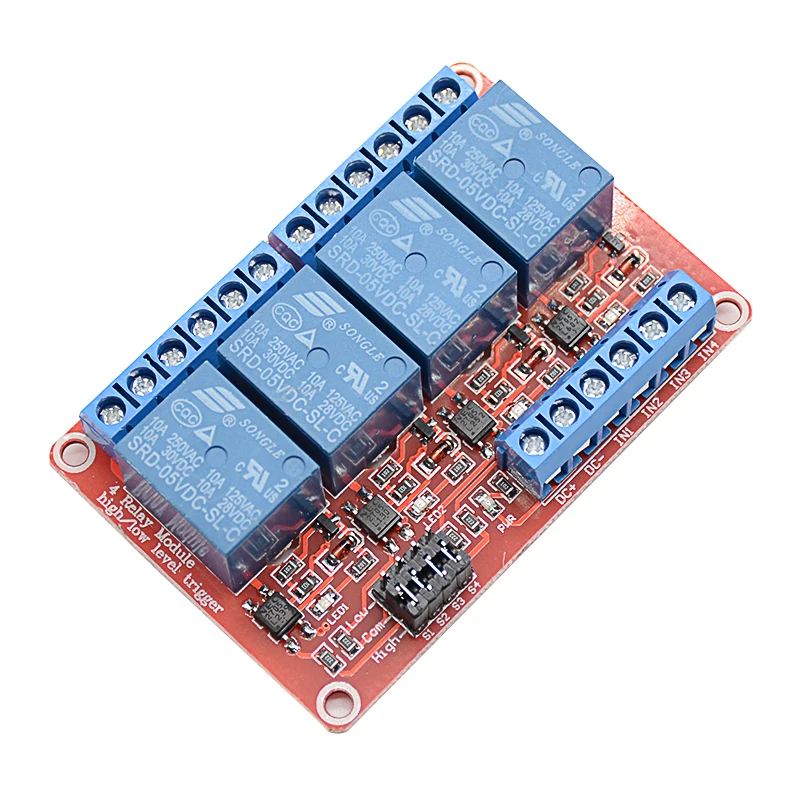

12V 4 Channel Relay Module With Optocoupler Isolation Supports High and Low Trigger 4 Road
Module features:
1, the module uses genuine quality relay, normally open interface maximum load: AC 250V/10A, DC 30V/10A;
2, SMD optocoupler isolation, strong drive capability, stable performance; trigger current is 5mA;
3.Each module can be set high level or low level trigger by jumper;
4, fault tolerant design, even if the control line is broken, the relay will not act;
5, the power indicator (green), 4 way relay status indicator (red)
6, the interface design humanization, all the interfaces can be connected directly through the wiring terminal, very convenient

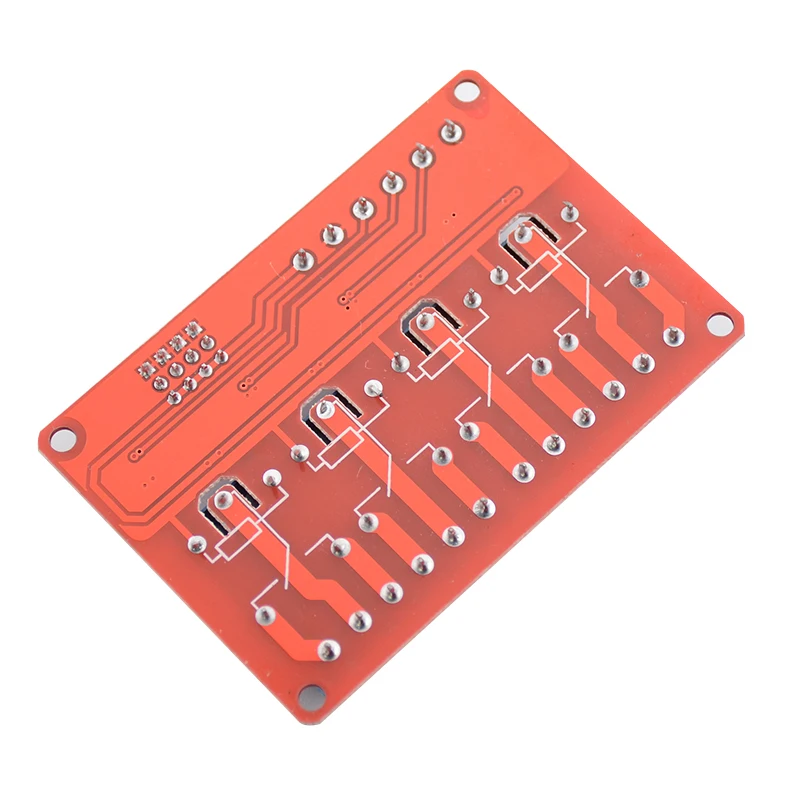

7, module size: 73mm * 50mm* 18.5mm
8, with 4 fixed bolt hole, hole 3.1mm, spacing 67mm*44.5mm

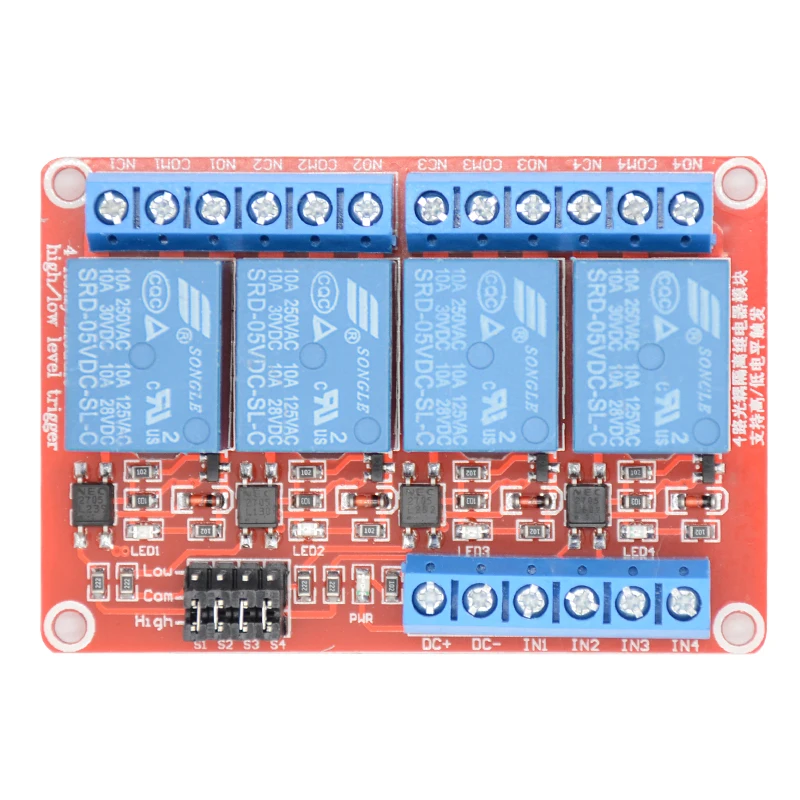

Module interface:
1, DC+: the power supply cathode
2, DC-: the negative power supply
3, IN1-IN4: according to each channel's settings, can be high or low level control the corresponding relay's pull
Relay output: there are 12 wire interface, all the interfaces can be directly connected to lead, user-friendly.
1, NO1--NO4: normally open relay interface, relay suspended before pull,after the pull shorted with COM
2, COM1--COM4 relay common interface
3, NC1--NC4: relay normally closed interface,before pull the relay and COM short circuit,after pull the relay suspended
High and low level trigger select:
1.S1-S4 in turn is the relay 1 way -4 way high and low level trigger selection;
2.When the com is short circuit to the low, the corresponding relay is low level triggered. When the com is short circuit to the high terminal, the high level trigger
1 * 12V 4 Channel Relay Module
- Unit Type: piece
- Package Weight: 0.08kg (0.18lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
