Monday Kids 1 Channel Relay Module With Optocoupler Isolation Support High And Low Level Trigger 5V
$1.29
Availability:
In stock
SKU
RY-ES-555
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Supply Voltage: 5V
- Model Number: Relay Module
- Type: Voltage Regulator
- is_customized: Yes

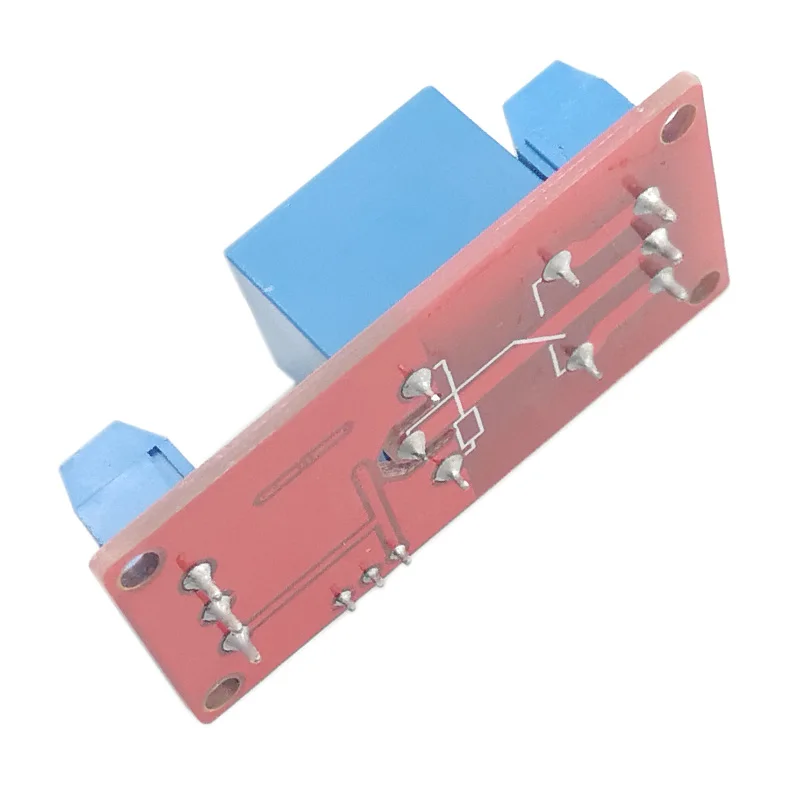

1 Channel Relay Module With Optocoupler Isolation Support High And Low Level Trigger 5V
Module description:
1, the module uses genuine high-quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A;
2, using patch optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;
3, the module working voltage is available in 5V, 9, 12V, 24V;
4. The module can be triggered by a jumper to set a high level or a low level;
5, fault-tolerant design, even if the control line is broken, the relay will not move;
6, power indicator (green), relay status indicator (red)
7, the interface design is user-friendly, all interfaces can be directly connected through the terminal block, very convenient

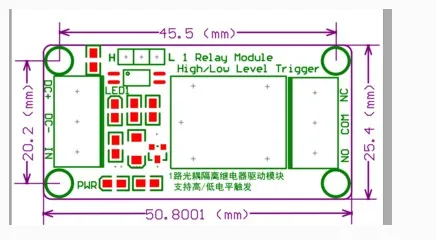

8, module size: 50mm * 26mm * 18.5mm (length * width * height)
9, with 4 fixing bolt holes, hole 3.1mm, spacing 44.5mm*20.5mm
Module interface:
1. DC+: Connect the positive pole of the power supply (the voltage is required by the relay, there are 5V.9V.12V and 24V selection)
2, DC-: connected to the negative pole of the power supply
3, IN: can control the relay to pull high or low
Relay output:
1. NO: The relay normally open interface, the relay is suspended before the suction, and the short is connected with COM after the suction.
2, COM: relay common interface
3. NC: The relay normally closes the interface, and the relay is shorted to COM before the suction is closed.
Technical parameters:
Relay version Quiescent current Maximum current Trigger current Trigger voltage (low) High
5V 5mA 190mA 2-4mA 0-1.5V 2.5-5V
12V 5mA 80mA 2-4mA 0-4V 4.5-12V
24V 5mA 50mA 2-4mA 0-8V 8.5-24V
High and low trigger selection:
1. When the jumper is shorted to LOW, it is triggered by low level;
2. When the jumper is shorted to high, it is triggered by a high level.
Package Included:
1 * 5V Relay module
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 10cm x 15cm x 1cm (3.94in x 5.91in x 0.39in)
