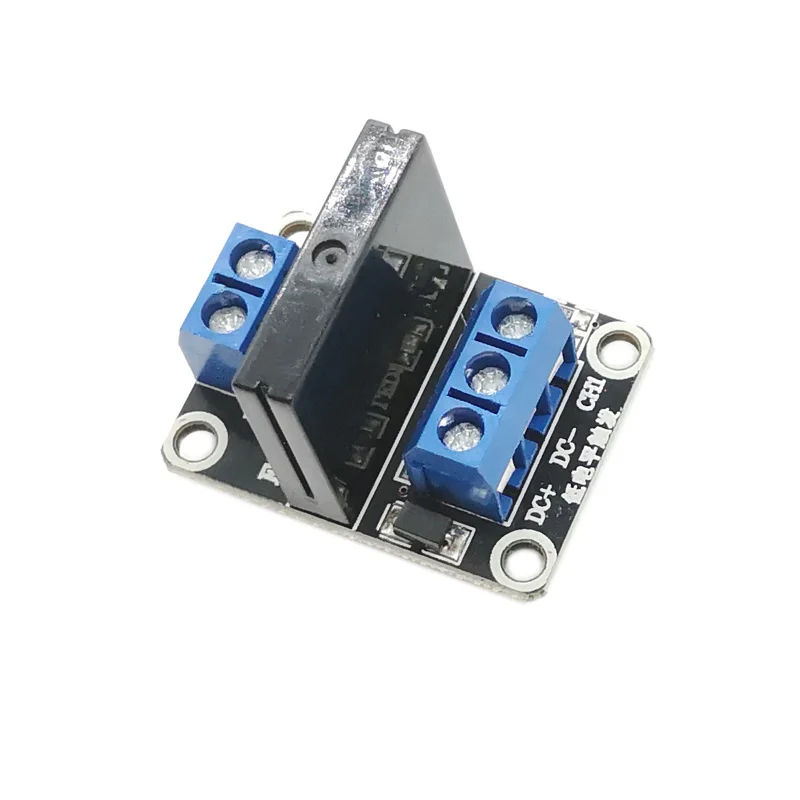

Monday Kids 1 Channel 5V Solid State Relay Module Low Level Relay 240V 2A Output With Resistive Fuse RM001

$1.56
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Supply Voltage: 5V
  • Model Number: Relay module
  • Type: Voltage Regulator
  • is_customized: Yes

Product features:

  • OMRON 5V solid state relay 240V 2A, output live resistance fuse 240V 2A

  • Silk 240V 2A.

  • Size: 25*34*25MM

  • Weight: 13g

  • Input power: 5V DC (160MA)

  • Input control signal voltage:(0-1.5V status low, relay ON) (2.5-5V status, high level relay OFF)

  • The blue KF301 terminal is more convenient to connect with the control line.

Module interface

Input part:
  • DC+: connect the power positive (powered by the relay voltage)

  • DC-: the negative pole of the power supply

  • CH: relay module signal trigger (low level trigger valid)

Electrical parameter:

  • Voltage version: 5V

  • Quiescent current: 0mA

  • Working current: 12.5mA

  • Trigger voltage: 0-1.5V

  • Trigger current: 2mA

Product instructions:

1. module power supply: power supply must be DC, power
The pressure should be consistent with the voltage of the relay
2. wiring method: When the signal trigger is triggered by a low level, the relay will be switched on and the device has power to work.

1 * 1 Channel 5V Solid State Relay Module

  • Unit Type: piece
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
